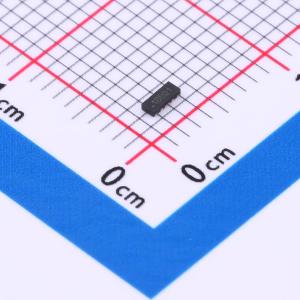

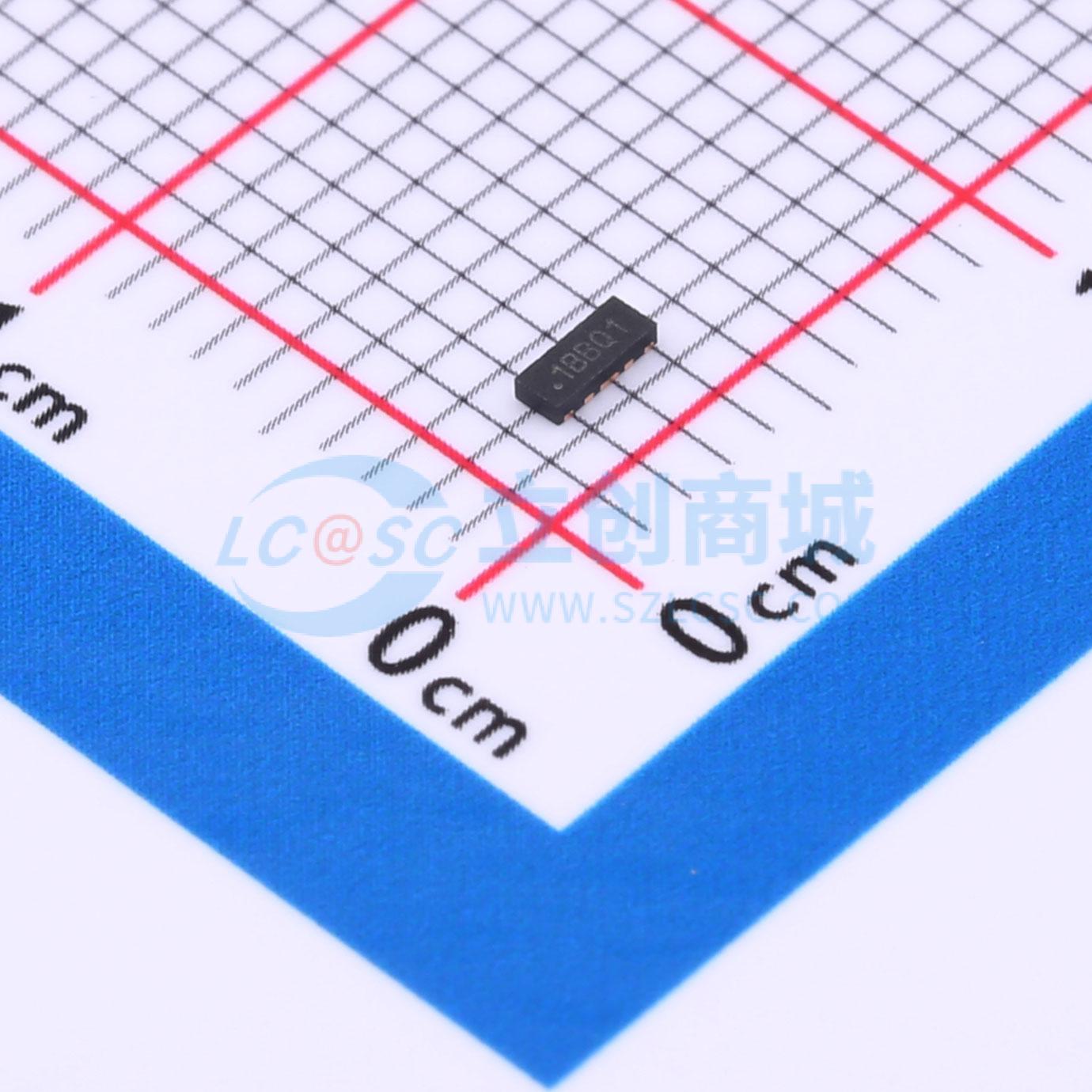

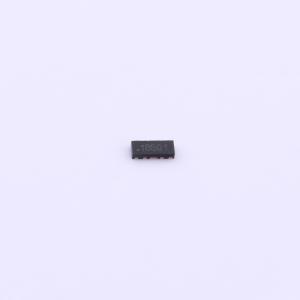

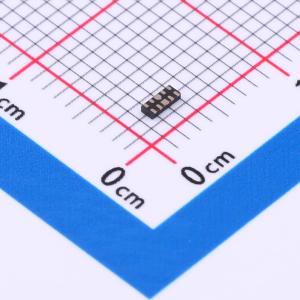

TPD4E02B04QDQARQ1

ESD 3.6V截止峰值浪涌电流：2A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: TPD4E02B04-Q1 适用于 USB 3.0 和高速接口的汽车类四路 0.25pF、±3.6V、±12kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: TPD4E02B04QDQARQ1
商品编号: C1973193
商品封装: USON-10(1x2.5)
包装方式: 编带
商品毛重: 0.045克(g)

商品参数

商品概述

TPD4E02B04-Q1 is an automotive-certified bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The TPD4E02B04-Q1 has a rated ESD shock dissipation value of up to 10 kV, meeting the ISO 10605 (330 pF, 330 Ω) ESD standard. The TPD4E02B04 also reaches the highest level specified in the IEC 61000-4-2 international standard (Level 4). Each channel of the device has an IO capacitance of 0.25 pF, suitable for protecting high-speed interfaces with rates up to 10 Gbps (such as USB 3.1 Gen 2). Low dynamic resistance and low clamping voltage ensure system-level protection against transient events. The TPD4E02B04-Q1 comes in an industry-standard USON-10 (DQA) package. This package features a straight-through wiring with a pin pitch of 0.5 mm, simplifying implementation and reducing design time. The device also has a non-automotive-certified version: TPD4E02B04.

商品特性

Compliant with AEC-Q101
IEC 61000-4-2 Level 4 ESD protection
±12 kV contact discharge
±15 kV air-gap discharge
ISO 10605 (330 pF, 330 Ω) ESD protection
±10 kV contact discharge
±10 kV air-gap discharge
IEC 61000-4-4 Transient discharge (EFT) protection: 80 A (5/50 ns)
IEC 61000-4-5 Surge protection: 2 A (8/20 μs)
IO capacitance: 0.25 pF (typical)
DC breakdown voltage: 5.5 V (minimum)
Ultra-low leakage current: 10 nA (maximum)
Low ESD clamping voltage: 8.8 V (5 A TLP)
Supports high-speed interfaces with rates up to 10 Gbps
Industrial temperature range: -40°C to +125°C
Simple straight-through wiring package

应用领域

End devices
Audio head units
Rear-seat entertainment systems
Telematics
USB hubs
Instrument clusters
Body control modules
Media interfaces
USB Type-C
USB 3.1 Gen 2
High-Definition Multimedia Interface (HDMI) 2.0/1.4
USB 3.0
DisplayPort 1.3
10/100/1000 Mbps Ethernet

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	反向截止电压(Vrwm)	3.6V
	钳位电压	8.8V
	峰值脉冲电流(Ipp)	2A@8/20us
	峰值脉冲功率(Ppp)	17W@8/20us
	击穿电压	6.4V

	属性	参数值
	反向电流(Ir)	10nA
	通道数	四路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-4；IEC 61000-4-5；IEC 61000-4-2
	类型	ESD
	Cj-结电容	0.25pF
