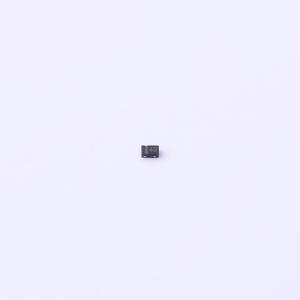

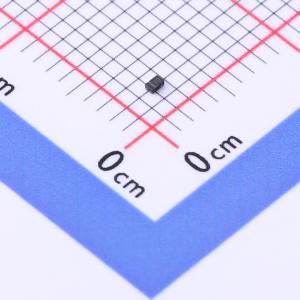

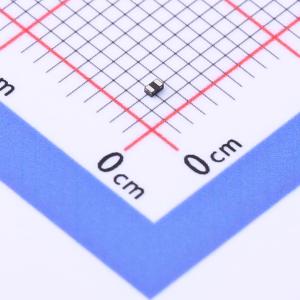

温馨提醒：图片仅供参考，商品以实物为准
TPD1E05U06QDPYRQ1
单向ESD 5.5V截止 峰值浪涌电流：2.5A@8/20us
SMT扩展库SMT补贴嘉立创PCB免费打样
私有库下单最高享92折
- 描述
- TPD1E05U06-Q1 适用于 USB 3.0 且采用 0402 封装的汽车类 0.4pF 5.5V ±12kV ESD 保护二极管
- 品牌名称
- TI(德州仪器)
- 商品型号
- TPD1E05U06QDPYRQ1
- 商品编号
- C1974916
- 商品封装
- X1-SON-2(0.6x1)
- 包装方式
- 编带
- 商品毛重
- 0.01克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 极性 | 单向 | |
| 反向截止电压(Vrwm) | 5.5V | |
| 钳位电压 | 14V | |
| 峰值脉冲电流(Ipp) | 2.5A@8/20us | |
| 峰值脉冲功率(Ppp) | 30W@8/20us | |
| 击穿电压 | 8.7V |
| 属性 | 参数值 | |
|---|---|---|
| 反向电流(Ir) | 10nA | |
| 通道数 | 单路 | |
| 工作温度 | -40℃~+125℃ | |
| 防护等级 | IEC 61000-4-4；IEC 61000-4-5；IEC 61000-4-2 | |
| 类型 | ESD | |
| Cj-结电容 | 0.42pF |
商品概述
TPDxE05U06-Q1 is a series of unidirectional Transient Voltage Suppressor (TVS) Electrostatic Discharge (ESD) protection diodes with ultra-low capacitance. These devices are designed to dissipate ESD shocks higher than the maximum level specified in the IEC61000-4-2 Class 4 international standard. The ultra-low load capacitance makes these devices well-suited for protecting any high-speed signal applications up to 6Gbps.
商品特性
- Compliant with AEC-Q101
- Human Body Model (HBM) Classification Level H3B
- Charged Device Model (CDM) Classification Level C5
- Device temperature range: -40°C to +125°C
- IEC61000-4-2 Class 4 ESD protection
- ±12kV contact discharge
- ±15kV air-gap discharge
- IEC61000-4-4 Electrical Fast Transient (EFT) protection
- 80A (5/50ns)
- IEC61000-4-5 Surge protection
- 2.5A (8/20μs)
- I/O capacitance from 0.42pF to 0.5pF (typical)
- DC breakdown voltage 6.4V (minimum)
- Ultra-low leakage current 10nA (maximum)
- Low ESD clamping voltage (14V at 5A TLP)
- Simple through-route package
应用领域
- End equipment
- Audio head unit
- Rear-seat entertainment system
- Telematics
- USB hub
- Navigation module
- Media interface
- Interfaces
- USB 2.0
- USB 3.0
- HDMI 1.4/2.0
- Low-Voltage Differential Signaling (LVDS)
- DisplayPort
- SIM card
