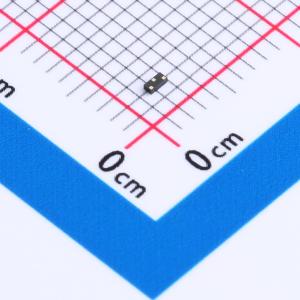

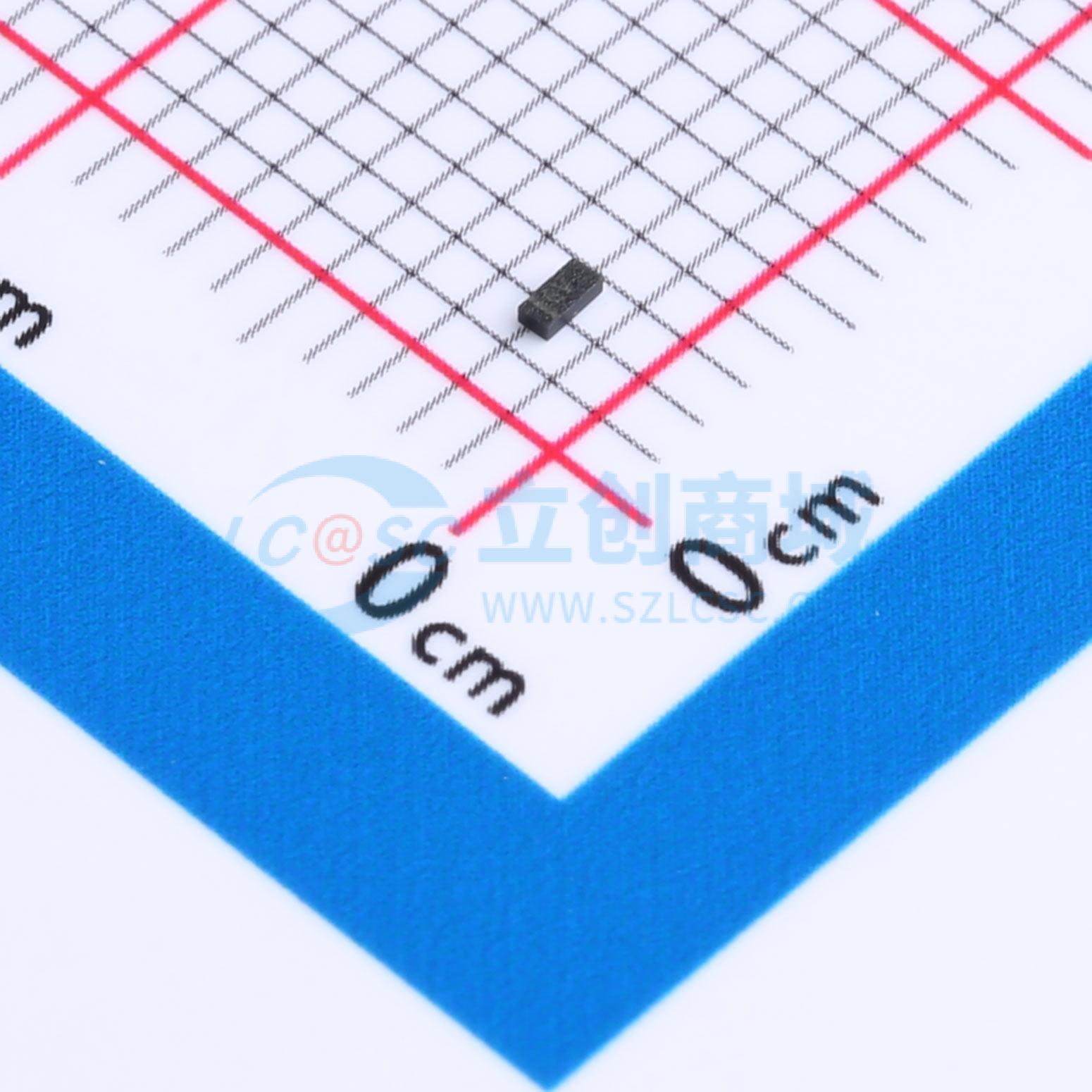

ESD122DMYR

双向ESD 3.6V截止峰值浪涌电流：2.5A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

私有库下单最高享92折

描述: ESD122 适用于 USB Type-C 和 HDMI 2.0 的双路 0.2pF、±3.6V、±17kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: ESD122DMYR
商品编号: C1975871
商品封装: X2-SON-3(0.6x1.3)
包装方式: 编带
商品毛重: 0.007克(g)

商品参数

商品概述

ESD122 is a bidirectional TVS ESD protection diode array used for USB Type-C and HDMI 2.0 circuit protection. The ESD122 is rated to dissipate contact ESD strikes up to the highest level specified by the IEC 61000-4-2 international standard (17kV contact discharge, 17kV air-gap discharge). This device features a low IO capacitance per channel and pin to accommodate symmetric differential high-speed signal routing, making it an ideal choice for protecting high-speed interfaces up to 10Gbps, such as USB 3.1 Gen 2 and HDMI 2.0. Low dynamic resistance and low clamping voltage ensure system-level protection against transient events. In addition, the ESD122 is an ideal ESD solution for USB Type-C Tx/Rx lines. Since the USB Type-C connector has two layers, using a 4-channel ESD device requires VIAs to degrade signal integrity. Using four ESD122 (2-channel) devices minimizes the number of VIAs and simplifies the board layout. The ESD122 is available in two easy through-wiring packages.

商品特性

IEC 61000-4-2 Level 4 electrostatic discharge (ESD) protection
- ±17kV contact discharge
- ±17kV air-gap discharge
Withstands over 10,000 ESD strikes without any performance degradation, compliant with IEC 61000-4-2 Level 4 (contact)
IEC 61000-4-4 electrical fast transient (EFT) protection
- 80A (5/50ns)
IEC 61000-4-5 surge protection
- 2.5A (8/20μs)
Low IO capacitance
- 0.1pF (typical) between IOs
- 0.2pF (typical) from IO to ground
DC breakdown voltage: 5.1V (min)
Ultra-low leakage current: 10nA (max)
Low ESD clamping voltage: 8.4V at 5A TLP
Supports high-speed interfaces over 10Gbps
Industrial temperature range: -40°C to +125°C
Type-C friendly dual-channel through-wiring package
Pins suitable for symmetric differential high-speed signal routing
Two different package options
- 0402 package, 0.6mmx1mm, 0.34mm pitch
- 0502 package, 0.6mmx1.32mm, 0.5mm pitch

应用领域

End equipment
- Mobile phones and tablets
- Portable computers and desktops
- Set-top boxes
- TVs and monitors
- Servers
Interfaces
- USB Type-C
- HDMI 2.0/1.4
- USB 3.1 Gen 2/Gen 1, USB 3.0, and USB 2.0
- Thunderbolt-1 and Thunderbolt-2
- DisplayPort 1.3
- PCI Express 3.0 bus interface
- Serial ATA (SATA)

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	双向
	反向截止电压(Vrwm)	3.6V
	钳位电压	8.4V
	峰值脉冲电流(Ipp)	2.5A@8/20us
	峰值脉冲功率(Ppp)	20W@8/20us
	击穿电压	7.9V

	属性	参数值
	反向电流(Ir)	10nA
	通道数	双路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-4；IEC 61000-4-5；IEC 61000-4-2
	类型	ESD
	Cj-结电容	0.2pF
