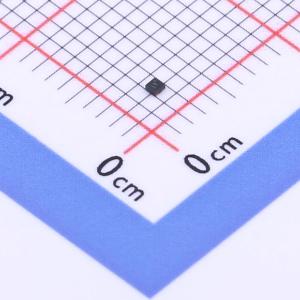

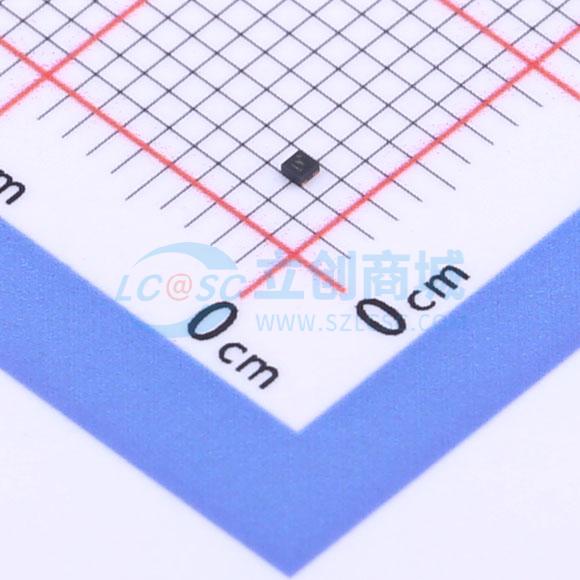

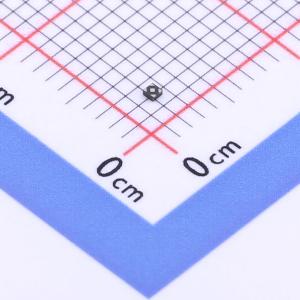

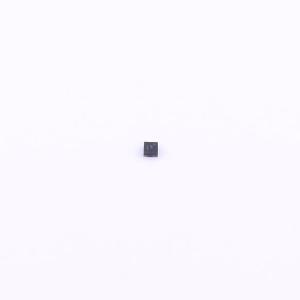

TPD4E101DPWR
双向ESD 5.5V截止 峰值浪涌电流：3A@8/20us
- 描述
- TPD4E101 采用 0.5mm 间距、0.64mm2 SON 封装的四路 4.8pF、±5.5V、±15kV ESD 保护二极管
- 品牌名称
- TI(德州仪器)
- 商品型号
- TPD4E101DPWR
- 商品编号
- C1975353
- 商品封装
- X2-SON-4-EP(0.8x0.8)
- 包装方式
- 编带
- 商品毛重
- 0.008667克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 极性 | 双向 | |
| 反向截止电压(Vrwm) | 5.5V | |
| 钳位电压 | 13V | |
| 峰值脉冲电流(Ipp) | 3A@8/20us | |
| 峰值脉冲功率(Ppp) | - |
| 属性 | 参数值 | |
|---|---|---|
| 击穿电压 | 6V | |
| 通道数 | 四路 | |
| 工作温度 | -40℃~+125℃ | |
| 防护等级 | IEC 61000-4-2 | |
| 类型 | ESD | |
| Cj-结电容 | 5pF |
商品概述
The TPD4E101 is a four-channel ESD protection device in an ultra-small package. The larger pin pitch helps save the manufacturing cost of the printed circuit board (PCB). This device provides up to 15kV contact discharge protection compliant with IEC61000 - 4 - 2. This device features an ESD clamping circuit, and the back-to-back diodes of this circuit support single-pole/bidirectional signals. The low line capacitance makes this device suitable for a wide range of applications supporting data rates up to 700Mbps. Typical application areas in portable applications include audio lines (microphones, headphones, and speakerphones), SD interfaces, SIM interfaces, auxiliary keyboards, or other buttons.
商品特性
- Provides system-level ESD protection for low-voltage input/output (IO) interfaces, IEC61000 - 4 - 2 Level 4
- ±15kV (air discharge)
- ±15kV (contact discharge)
- IO capacitance < 5pF
- Ultra-low leakage current
- Ultra-low clamping voltage
- Industrial temperature range: -40°C to 125°C
- Space-saving micro quad flat no-lead (μQFN) package
应用领域
- Mobile phones
- E-books
- Portable media players
- Digital video cameras
- Tablet PCs
- Set-top boxes
