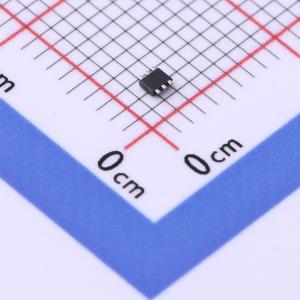

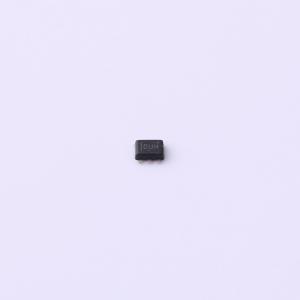

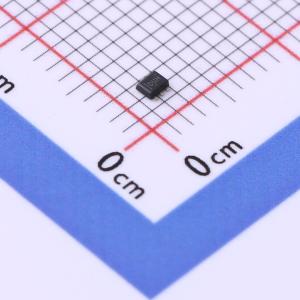

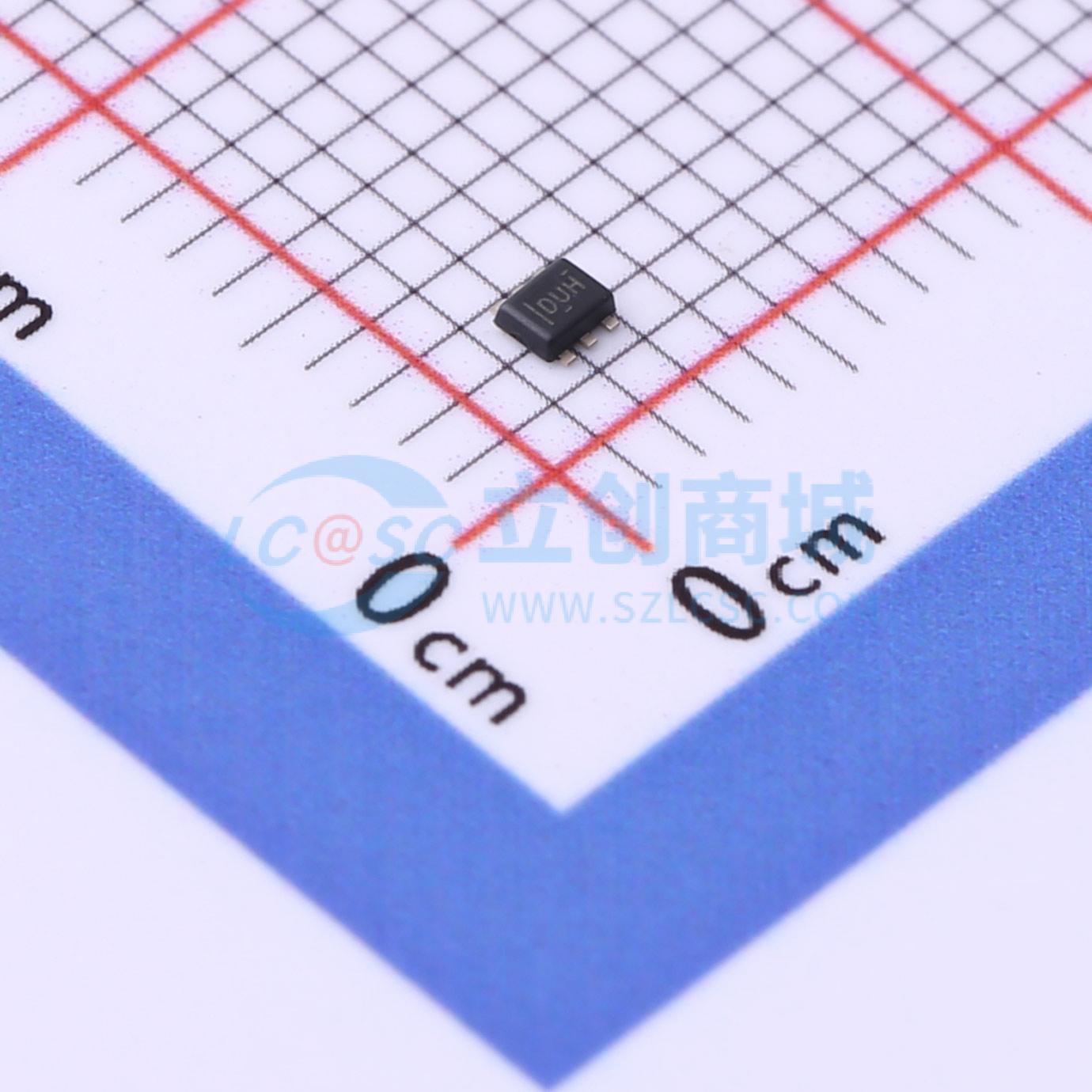

温馨提醒：图片仅供参考，商品以实物为准

TPD2E1B06DRLR

ESD 5.5V截止峰值浪涌电流：2.5A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: TPD2E1B06 适用于 USB 2.0 且具有 ESD 等级的双通道 1pF、±5.5V、±10kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: TPD2E1B06DRLR
商品编号: C1974127
商品封装: SOT-666-6
包装方式: 编带
商品毛重: 0.34克(g)

商品参数

商品概述

The TPD2E1B06 is a dual-channel ultra-low capacitance ESD protection device. It provides ±10 kV IEC contact ESD protection. Its 1 pF line capacitance makes this device suitable for a wide range of applications. Typical application interfaces are USB 2.0, Low-Voltage Differential Signaling (LVDS), and I2C.

商品特性

Provides system-level electrostatic discharge (ESD) protection for low-voltage input/output (IO) interfaces
IEC 61000-4-2 Level 4 contact ESD rating
IO capacitance of 1 pF (typical)
DC breakdown voltage of 7 V (minimum)
Ultra-low leakage current of 10 nA (maximum)
Low ESD clamping voltage
Automotive temperature range: -40°C to 125°C
Small and easy-to-route DRL package

应用领域

Game consoles
E-books
Portable media players
Digital video cameras

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	反向截止电压(Vrwm)	5.5V
	钳位电压	15V
	峰值脉冲电流(Ipp)	2.5A@8/20us
	峰值脉冲功率(Ppp)	35W@8/20us
	击穿电压	9.5V

	属性	参数值
	反向电流(Ir)	10nA
	通道数	双路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-2
	类型	ESD
	Cj-结电容	0.85pF；1.05pF
