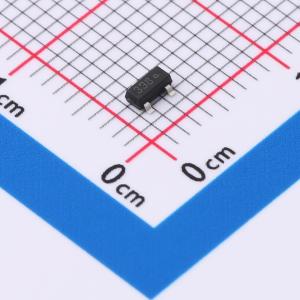

温馨提醒：图片仅供参考，商品以实物为准
FDN338P
耐压:20V 电流:1.6A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 适用于各类小型电子设备，提供高效、稳定的开关与功率转换性能。
- 品牌名称
- JSMSEMI(杰盛微)
- 商品型号
- FDN338P
- 商品编号
- C2874698
- 商品封装
- SOT-23
- 包装方式
- 编带
- 商品毛重
- 0.034克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 场效应管(MOSFET) | |
| 数量 | - | |
| 漏源电压(Vdss) | 20V | |
| 连续漏极电流(Id) | 1.6A | |
| 导通电阻(RDS(on)) | 210mΩ@2.5V | |
| 耗散功率(Pd) | 350mW |
| 属性 | 参数值 | |
|---|---|---|
| 阈值电压(Vgs(th)) | 1V@250uA | |
| 栅极电荷量(Qg) | 6nC@10V | |
| 输入电容(Ciss) | 405pF | |
| 反向传输电容(Crss) | 55pF | |
| 工作温度 | -55℃~+150℃ | |
| 输出电容(Coss) | 75pF |
商品概述
This 63mΩ, 12V N-channel FemtoFET™ MOSFET is designed and optimized to minimize the space occupied in many handheld and mobile applications. This technology can significantly reduce the package size while replacing standard small-signal MOSFETs.
商品特性
- Low on-resistance
- Ultra-low Qg and Qgd
- High drain operating current
- Ultra-small size
- Thin package
- Integrated ESD protection diode
- Lead-free and halogen-free
- RoHS compliant
应用领域
- Optimized for load switch applications
- Optimized for general-purpose switch applications
- Battery applications
- Handheld and mobile applications
