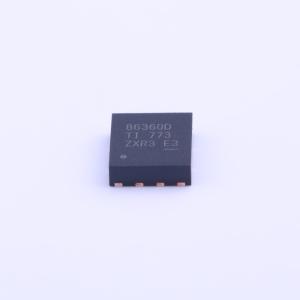

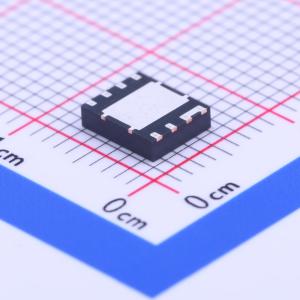

CSD86360Q5D
耐压:25V 电流:50A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- CSD86360Q5D 采用 5mm x 6mm SON 封装的 50A、25V、N 沟道同步降压 NexFET™ 功率 MOSFET™电源块
- 品牌名称
- TI(德州仪器)
- 商品型号
- CSD86360Q5D
- 商品编号
- C181654
- 商品封装
- LSON-8-EP(5x6)
- 包装方式
- 编带
- 商品毛重
- 0.182克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 场效应管(MOSFET) | |
| 数量 | - | |
| 漏源电压(Vdss) | 25V | |
| 连续漏极电流(Id) | 50A | |
| 导通电阻(RDS(on)) | 3.7mΩ@5V | |
| 耗散功率(Pd) | 13W |
| 属性 | 参数值 | |
|---|---|---|
| 阈值电压(Vgs(th)) | 2.1V@250uA | |
| 栅极电荷量(Qg) | 30nC@4.5V | |
| 输入电容(Ciss) | 5.08nF | |
| 反向传输电容(Crss) | 69pF | |
| 工作温度 | -55℃~+150℃ | |
| 输出电容(Coss) | 2.56nF |
商品概述
The CSD86360Q5D NexFET™ Power Block is an optimized design for synchronous buck applications, capable of delivering high current, high efficiency, and high frequency performance in a compact 5 mm × 6 mm footprint. This product is optimized for 5V gate drive applications and provides a flexible solution for high-density power supplies when used with any 5V gate drive of an external controller/driver.
商品特性
- Half-bridge power block
- Up to 91% system efficiency at 25A current
- Operating current up to 50A
- High-frequency operation (up to 1.5 MHz)
- High-density SON 5 mm × 6 mm package
- Optimized for 5V gate drive
- Low switching losses
- Ultra-low inductance package
- RoHS compliant
- Halogen-free
- Lead-free pin plating
应用领域
- Synchronous buck converters
- High-frequency applications
- High-current, low-duty-cycle applications
- Multi-phase synchronous buck converters
- Point-of-load (POL) DC/DC converters
- IMVP, VRM, and VRD applications
