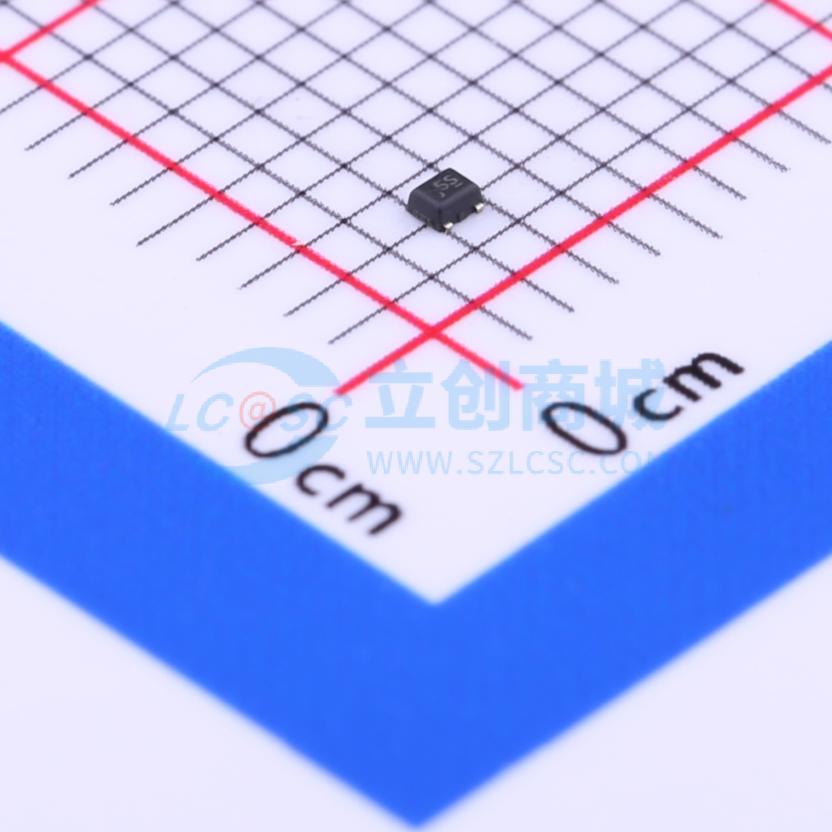

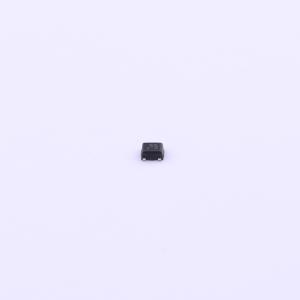

TPD2EUSB30ADRTR
单向ESD 3.6V截止 峰值脉冲电流：5A@8/20us
- 描述
- TPD2EUSB30A 适用于 USB 3.0 且具有 5A 浪涌额定值的双通道 0.7pF、3.6V、±8kV ESD 保护二极管
- 品牌名称
- TI(德州仪器)
- 商品型号
- TPD2EUSB30ADRTR
- 商品编号
- C94934
- 商品封装
- SOT(9x3)
- 包装方式
- 编带
- 商品毛重
- 0.028克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 极性 | 单向 | |
| 反向截止电压(Vrwm) | 3.6V | |
| 钳位电压 | 8V | |
| 峰值脉冲电流(Ipp) | 5A@8/20us | |
| 峰值脉冲功率(Ppp) | 45W@8/20us |
| 属性 | 参数值 | |
|---|---|---|
| 击穿电压 | 4.5V | |
| 通道数 | 双路 | |
| 工作温度 | -40℃~+85℃ | |
| 防护等级 | IEC 61000-4-5；IEC 61000-4-2 | |
| 类型 | ESD | |
| Cj-结电容 | 0.7pF |
商品概述
The TPD2EUSB30, TPD2EUSB30A, and TPD4EUSB30 are electrostatic discharge (ESD) protection diode arrays based on 2-channel and 4-channel transient voltage suppressors (TVS). The TPDxEUSB30/A devices are rated to dissipate ESD strikes up to the highest level specified by the IEC 61000-4-2 international standard (contact). These devices also offer a peak pulse current rating of 5A (8/20 μs) per the IEC 61000-4-5 (surge) specification. The TPD2EUSB30A features a low DC breakdown voltage of 4.5V. With low capacitance, low breakdown voltage, and low dynamic resistance, the TPD2EUSB30A device provides excellent protection for high-speed differential IOs. The TPD2EUSB30 and TPD2EUSB30A are available in a space-saving DRT (1mm × 1mm) package. The TPD4EUSB30 is available in a space-saving DQA (2.5mm × 1.0mm) package.
商品特性
- Supports USB 3.0 data rates (5Gbps)
- IEC 61000-4-2 ESD protection (Level 4 contact)
- IEC 61000-4-5 - 5A (8/20μs)
- Low capacitance
- DRT: 0.7pF (typical)
- DQA: 0.8pF (typical)
- Dynamic resistance: 0.6Ω (typical)
- Space-saving DRT, DQA packages
- Through-hole pin mapping
应用领域
- Notebook computers
- Set-top boxes
- DVD players
- Media players
- Portable computers
