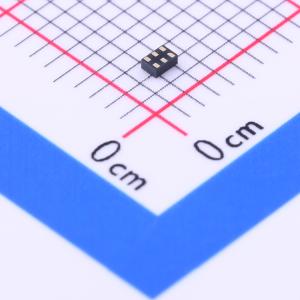

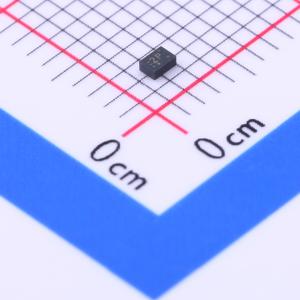

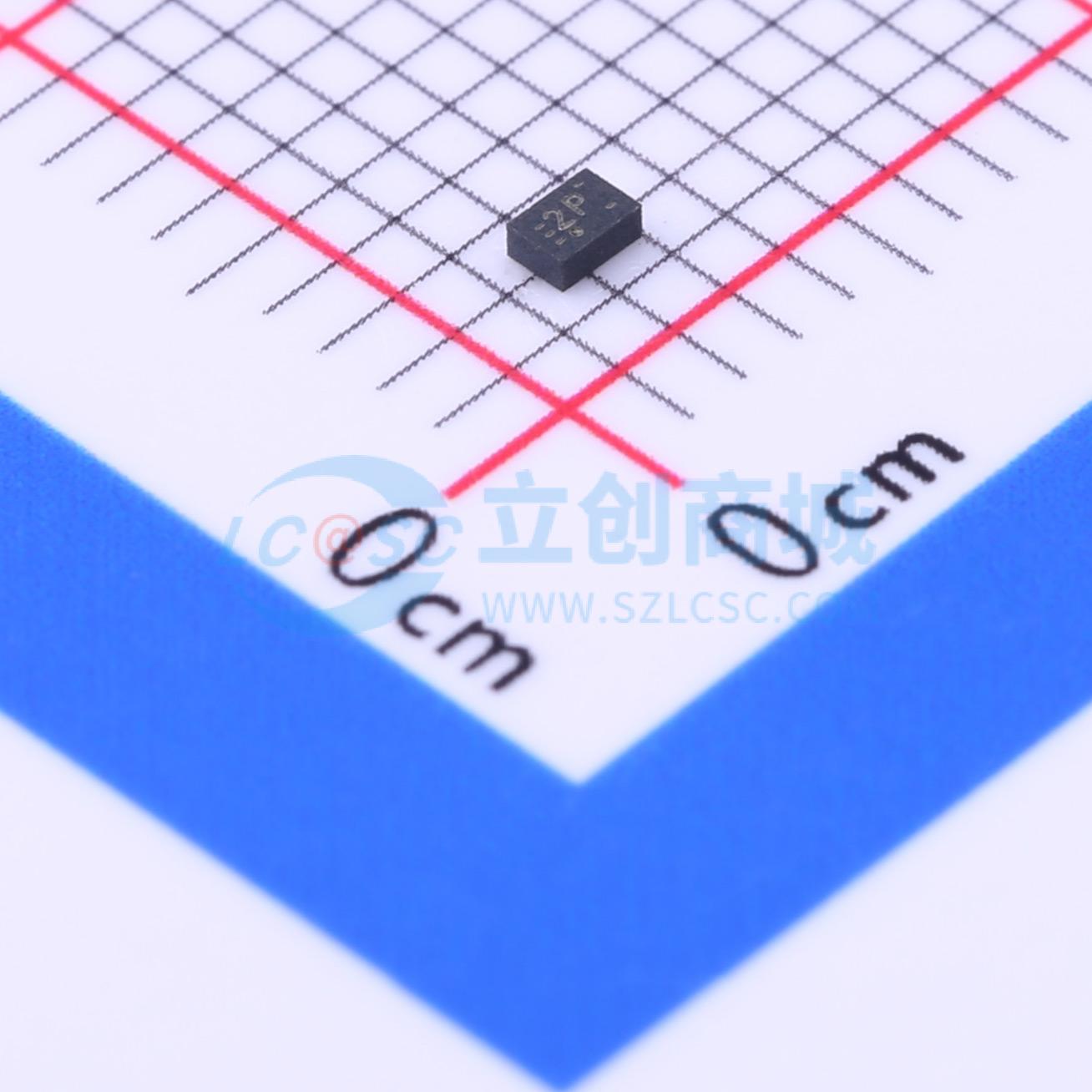

温馨提醒：图片仅供参考，商品以实物为准
TPD4E004DRYR
5.5V
SMT扩展库SMT补贴嘉立创PCB免费打样
私有库下单最高享92折
- 描述
- TPD4E004 适用于高速接口且具有 VCC 引脚的四通道 1.6pF、5.5V、±8kV ESD 保护二极管
- 品牌名称
- TI(德州仪器)
- 商品型号
- TPD4E004DRYR
- 商品编号
- C97503
- 商品封装
- SON-6(1x1.5)
- 包装方式
- 编带
- 商品毛重
- 0.024克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 反向截止电压(Vrwm) | 5.5V | |
| 击穿电压 | 8V | |
| 反向电流(Ir) | 1nA | |
| 通道数 | 四路 |
| 属性 | 参数值 | |
|---|---|---|
| 工作温度 | -40℃~+85℃ | |
| 防护等级 | IEC 61000-4-2 | |
| 类型 | TVS | |
| Cj-结电容 | 1.6pF |
商品概述
The TPD4E004 is a low-capacitance transient voltage suppression (TVS) device. It is designed to protect sensitive electronic components connected to communication lines from electrostatic discharge (ESD). Each of the four channels contains a pair of diodes to direct ESD current pulses to VCC or GND. It can provide protection against human body model (HBM) ESD pulses up to ±15 kV (as specified in IEC 61000 - 4 - 2), and offers ±8 kV contact discharge and ±12 kV air-gap discharge protection. With a capacitance of 1.6 pF per channel, this device is well-suited for use in high-speed data I/O interfaces. The TPD4E004 is a four-channel ESD structure designed for USB, Ethernet, and other high-speed applications.
商品特性
- IEC 61000 - 4 - 2 ESD protection:
- ±8 kV IEC 61000 - 4 - 2 contact discharge
- ±12 kV IEC 61000 - 4 - 2 air-gap discharge
- ANSI/ESDA/JEDEC JS - 001: ±15 kV human body model (HBM)
- 1.6 pF low input capacitance
- 0.9 V to 5.5 V power supply voltage range
- 4-channel device
- Space-saving SON (DRY) package
应用领域
- USB
- Ethernet
- FireWire
- Video
- Mobile phones
- SVGA video connections
- Blood glucose meters
