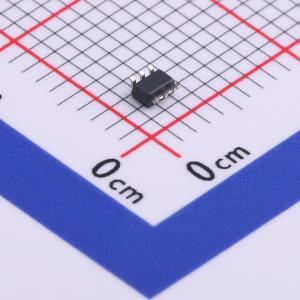

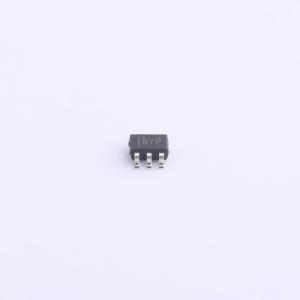

TPD4E1B06DCKR

双向 5.5V 3A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: TPD4E1B06 采用 SOT 和 SC70 封装且具有 0.5nA 最大泄漏电流的四路 0.7pF、±5.5V、±12kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: TPD4E1B06DCKR
商品编号: C840093
商品封装: SC-70-6
包装方式: 编带
商品毛重: 0.9克(g)

商品参数

商品概述

The TPD4E1B06 is a 4-channel bidirectional electrostatic discharge (ESD) protection diode array. This device features ultra-low leakage current (0.5 nA), enabling precise analog measurements. The ±12 kV contact and ±15 kV air-gap ESD protection exceed the requirements of IEC 61000-4-2 Level 4. The 0.7 pF line capacitance of the TPD4E1B06 device makes it well-suited for applications such as precision analog, USB 2.0, Ethernet, SATA, LVDS, and 1394 interfaces.

商品特性

Ultra-low leakage current of 0.5 nA (maximum)
Transient protection for 4 I/O lines:
- IEC 61000-4-2 contact discharge ±12 kV
- IEC 61000-4-2 air-gap discharge ±15 kV
- IEC 61000-4-5 surge 3.0 A (8/20 μs)
I/O capacitance of 0.7 pF (typical)
Bidirectional ESD protection diode array
Low ESD clamping voltage
Industrial temperature range: -40°C to 125°C
Small DRL and DCK packages for easy routing

应用领域

Blood glucose meters
Tablets
GPS
Portable media players
TVs
Set-top boxes

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	双向
	反向截止电压(Vrwm)	5.5V
	钳位电压	14.5V
	峰值脉冲电流(Ipp)	3A@8/20us
	峰值脉冲功率(Ppp)	45W@8/20us
	击穿电压	7V

	属性	参数值
	反向电流(Ir)	500pA
	通道数	四路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-5；IEC 61000-4-2
	类型	ESD
	Cj-结电容	0.7pF
