温馨提醒：图片仅供参考，商品以实物为准

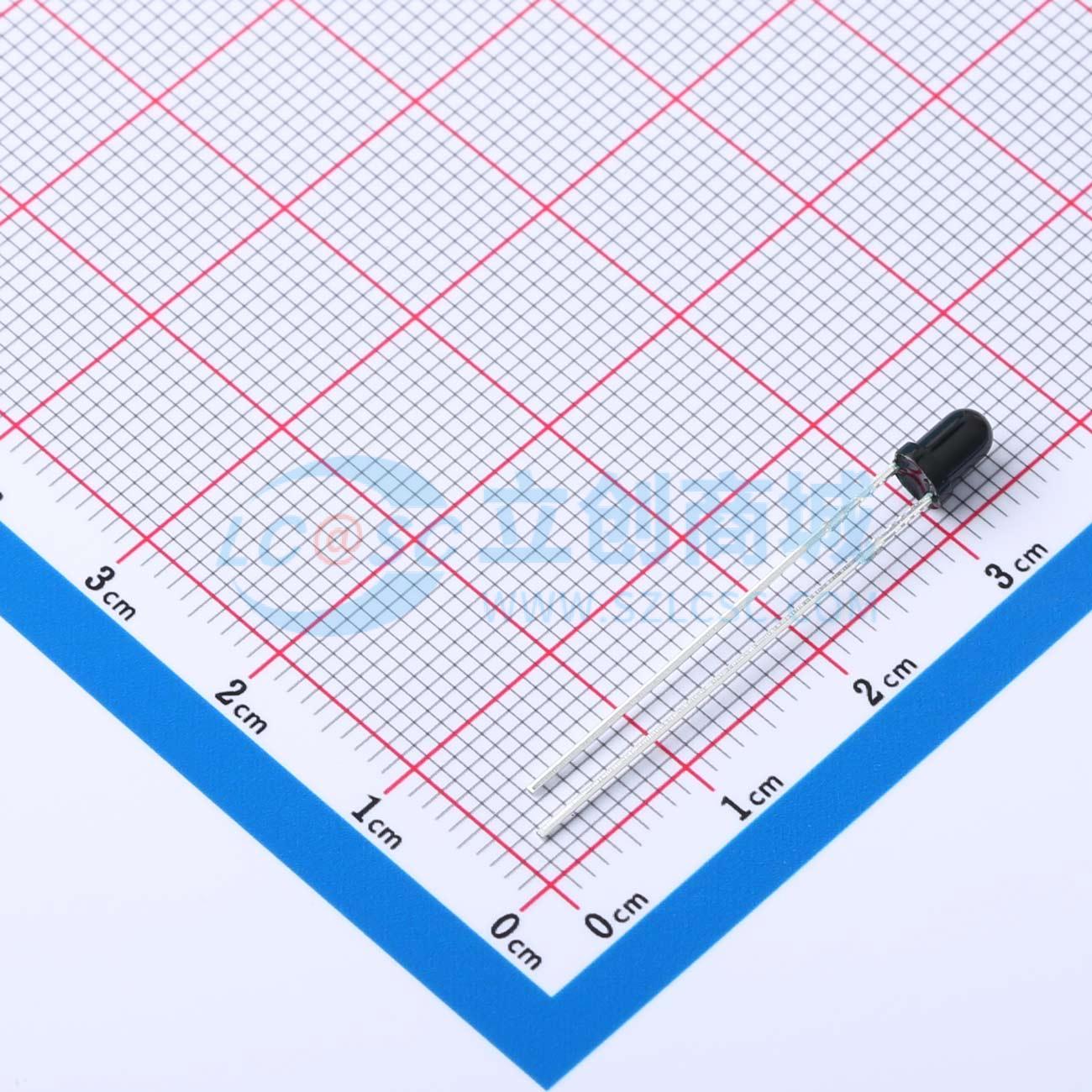

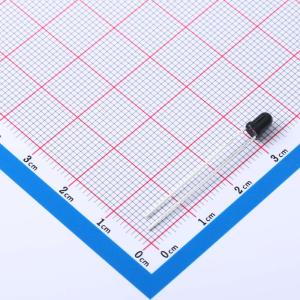

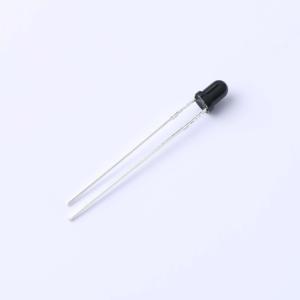

XYC-PT3B940DFC-L1-1

3mm黑色圆头45°有边过滤可见光光敏

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: 光敏二极管光敏三极管抗干扰强尺寸3*5.3Typ.940nm860-1100nmmin.30V（Bvceo）Typ.2mAMax.0.1μA
品牌名称: NEWOPTO(鑫永诚光电)
商品型号: XYC-PT3B940DFC-L1-1
商品编号: C6081280
商品封装: 插件,D=3mm
包装方式: 袋装
商品毛重: 0.1599克(g)

商品概述

XYC-PT3B940DFC-L1-1是NPN硅光电晶体管，封装在一个特殊黑色树脂胶的透镜内。该透镜效应使产品的2倍半功率的接受角度为60°。XYC-PT3B940DFC-L1-1 is NPN silicon phototransistor mounted in a lensed, special dark plastic package. The lensing effect of the package allows an acceptance half angle 60° that is measured from the optical axis to the half power point.

商品特性

感光峰值波长850nm Photosensitive peak wavelength λₚ = 850 nm
高可靠性 High reliability
低功耗 Low Power Consumption
符合RoHS RoHS compliant

应用领域

替代传统CDS光敏电阻 Replacement of conventional CDS photosensitive resistors
适用于各类光控照明产品：如小夜灯等 Suitable for all kinds of light products: such as night lamp etc.
自动调节背景光：如LCD、手机、照像机、电脑摄像头等 Products which need to adjust background light automatically, LCD, mobile phone, camera, computer camera etc.
控制各类光控影控玩具 Control all kinds of light and shadow controlled toys
各类光控红外检测测试设备等 All kinds of infrared light detection and testing equipment

数据手册PDF

放大查看下载PDF

	属性	参数值
	商品目录	环境光传感器
	感测类型	光强
	工作电压	400mV~30V

	属性	参数值
	静态电流(Iq)	-
	工作温度	-30℃~+85℃
