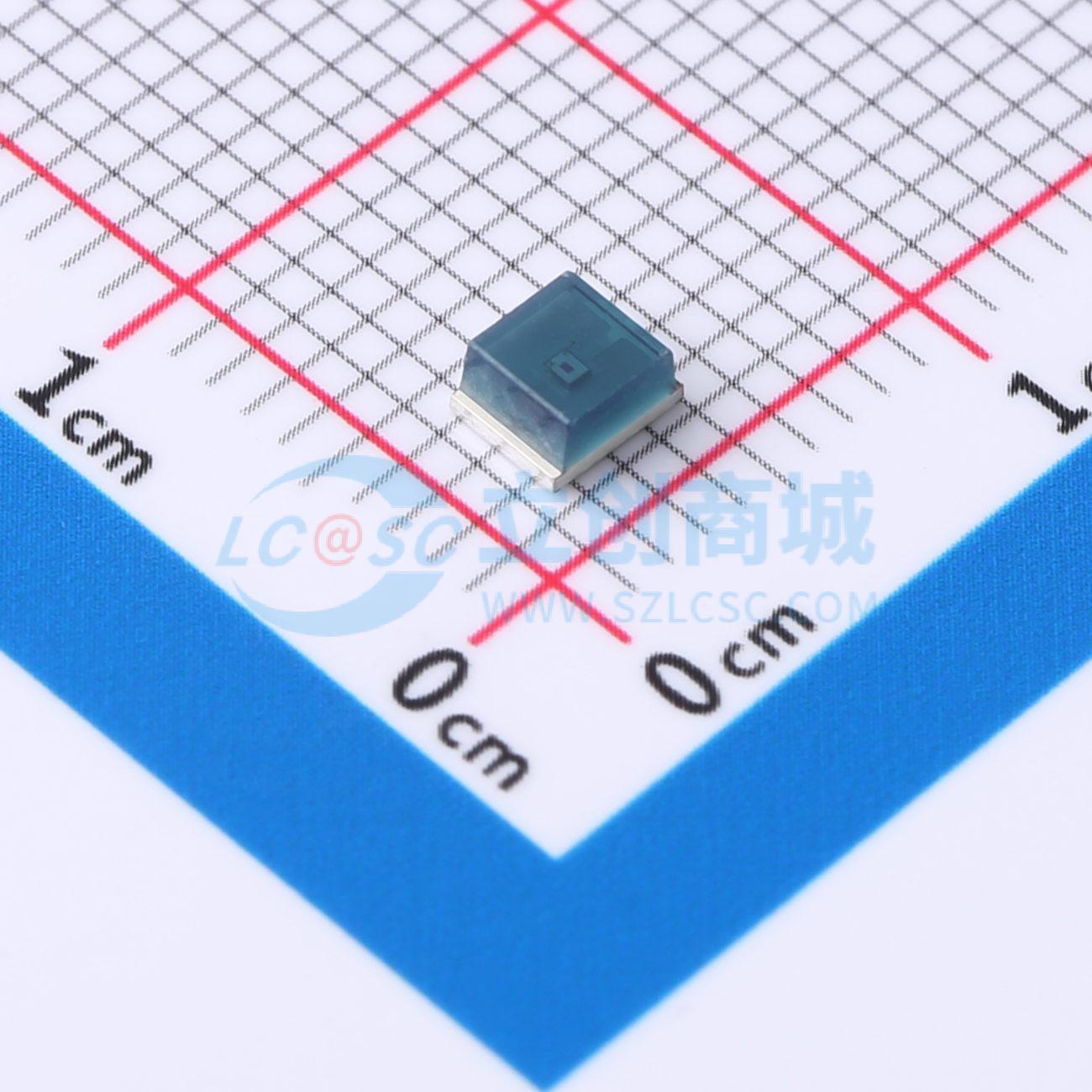

XYC-PT1411BC-I9

3528滤红外IC

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: 光敏传感器接收可见光光敏抗干扰强尺寸3.5*2.8Typ.550nm400-700nmVCC:1-10VTyp.3.0μAMax.0.4μA
品牌名称: NEWOPTO(鑫永诚光电)
商品型号: XYC-PT1411BC-I9
商品编号: C6081367
商品封装: SMD3528-2P
包装方式: 编带
商品毛重: 0.0701克(g)

商品概述

XYC-PT1411BC-I9是一款高灵敏度的环境光感测器，BT板封装工艺，具有高耐热性、抗湿性、高可靠性、环保等优点，减少LED吸湿后过回流焊开路隐患，完美一比一替换普通3528光敏规格，性能稳定可靠。 XYC-PT1411BC-I9 is a high-sensitivity environmental light sensor, BT Board packaging process, with high heat resistance, moisture resistance, high reliability and other advantages, reduce the LED moisture after over-reflow soldering open circuit hidden trouble, a perfect one-to-one replacement of the common 3528 photosensitive specifications, stable and reliable performance.

商品特性

感光峰值波长550nm Photosensitive peak wavelength λₚ = 550nm
高可靠性 High reliability
低功耗 Low Power Consumption
符合RoHS RoHS compliant

应用领域

替代传统CDS光敏电阻 Replacement of conventional CDS photosensitive resistors
适用于各类光控照明产品：如小夜灯等 Suitable for all kinds of light products: such as night lamp etc.
自动调节背景光：如LCD、手机、照像机、电脑摄像头等 Products which need to adjust background light automatically, LCD, mobile phone, camera, computer camera etc.
控制各类光控影控玩具 Control all kinds of light and shadow controlled toys
各类光控红外检测测试设备等 All kinds of infrared light detection and testing equipment

数据手册PDF

放大查看下载PDF

优惠活动

购买数量

(2000个/圆盘，最小起订量 5 个)

个

起订量：5 个2000个/圆盘

总价金额：

￥ 0.00

近期成交1单

	属性	参数值
	商品目录	环境光传感器
	感测类型	光强
	工作电压	1V~10V

	属性	参数值
	静态电流(Iq)	-
	工作温度	-40℃~+85℃
