温馨提醒：图片仅供参考，商品以实物为准

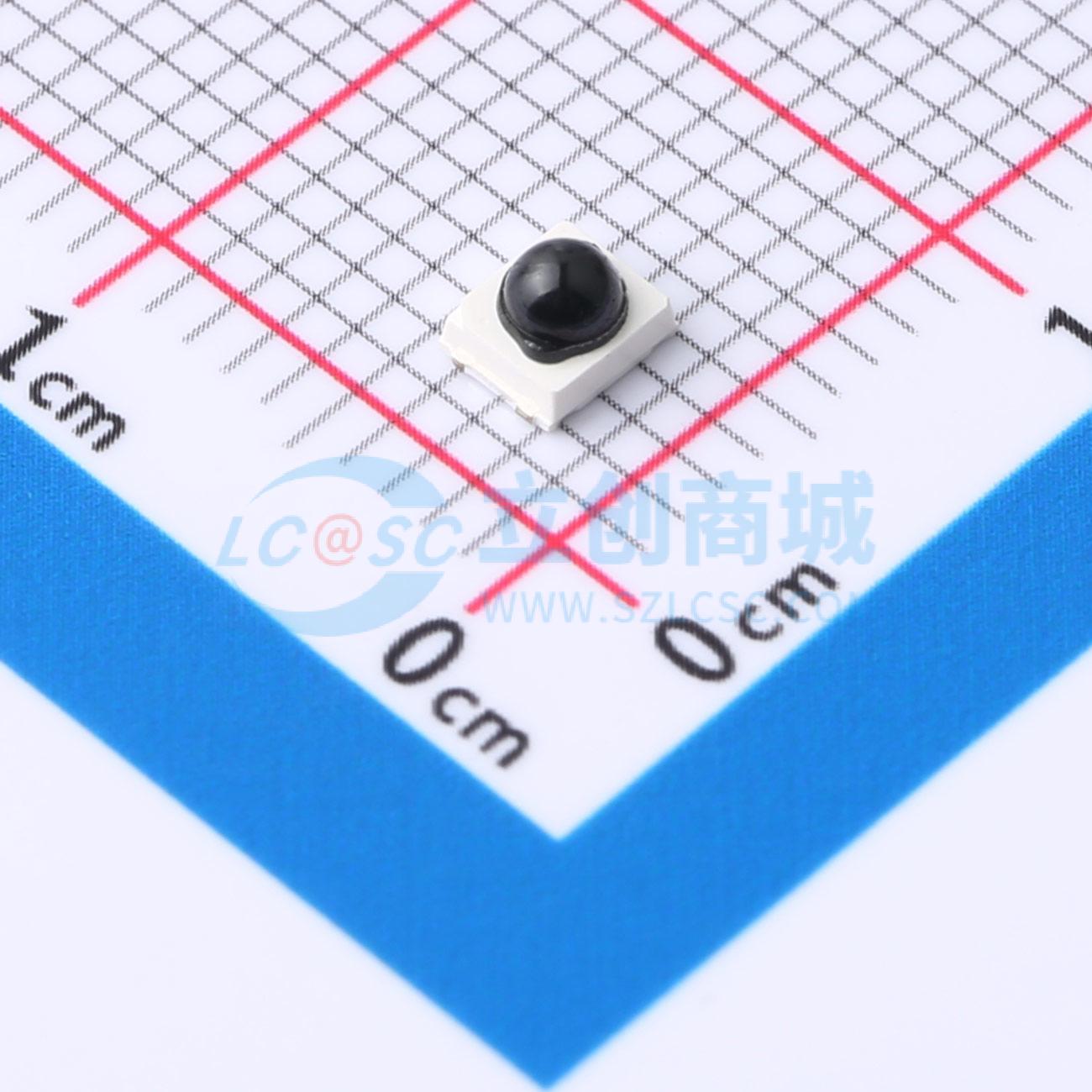

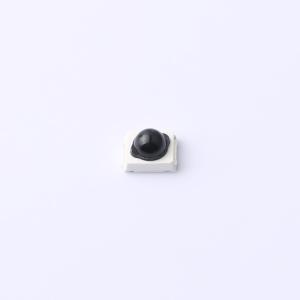

XYC-PT2835F30-A4
2835贴片30°球头接收红外线光敏
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 尺寸2.8*3.5Typ.940nm820-1100nmmin.30V（Bvceo）Typ.75μAMax.0.1μA
- 品牌名称
- NEWOPTO(鑫永诚光电)
- 商品型号
- XYC-PT2835F30-A4
- 商品编号
- C6081289
- 商品封装
- SMD2835-2P
- 包装方式
- 编带
- 商品毛重
- 0.06455克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 光电晶体管 | |
| 晶体管类型 | NPN | |
| 集射极击穿电压(Vceo) | 30V | |
| 集电极电流(Ic) | 4mA | |
| 耗散功率(Pd) | 70mW |
| 属性 | 参数值 | |
|---|---|---|
| 暗电流 | 100nA | |
| 峰值波长 | 940nm | |
| 视角 | 30° | |
| 工作温度 | -30℃~+85℃ | |
| 集射极饱和电压(VCE(sat)) | 0.4V@2mA |
商品概述
鑫永诚PT2835是一款高灵敏度的光敏传感器，贴片式外型封装，体积小巧，高可靠性，既节能又环保，应用领域广，用于产品对射及反射使用。 NEW PTO PT2835 is a high sensitivity of the photosensitive sensor, SMD package, small size, high reliability, energy saving and environmental protection, wide application field, it can also be used for product use on the radio and reflection.
商品特性
- 感光峰值波长940nm Photosensitive peak wavelength λp = 940nm
- 高可靠性High reliability
- 低功耗Low Power Consumption
- 符合RoHS compliant RoHS
应用领域
- 替代传统CDS光敏电阻Replacement of conventional CDS photosensitive resistors
- 适用于各类光控照明产品Suitable for all kinds of light products.
- 自动调节背景光：如LCD、手机、照相机、电脑摄像头等Products which need to adjust background light automatically, LCD, mobile phone, camera, computer camera etc.
- 控制各类光控影控玩具Control all kinds of light and shadow controlled toys
- 各类光控红外检测测试设备等All kinds of infrared light detection and testing equipment
