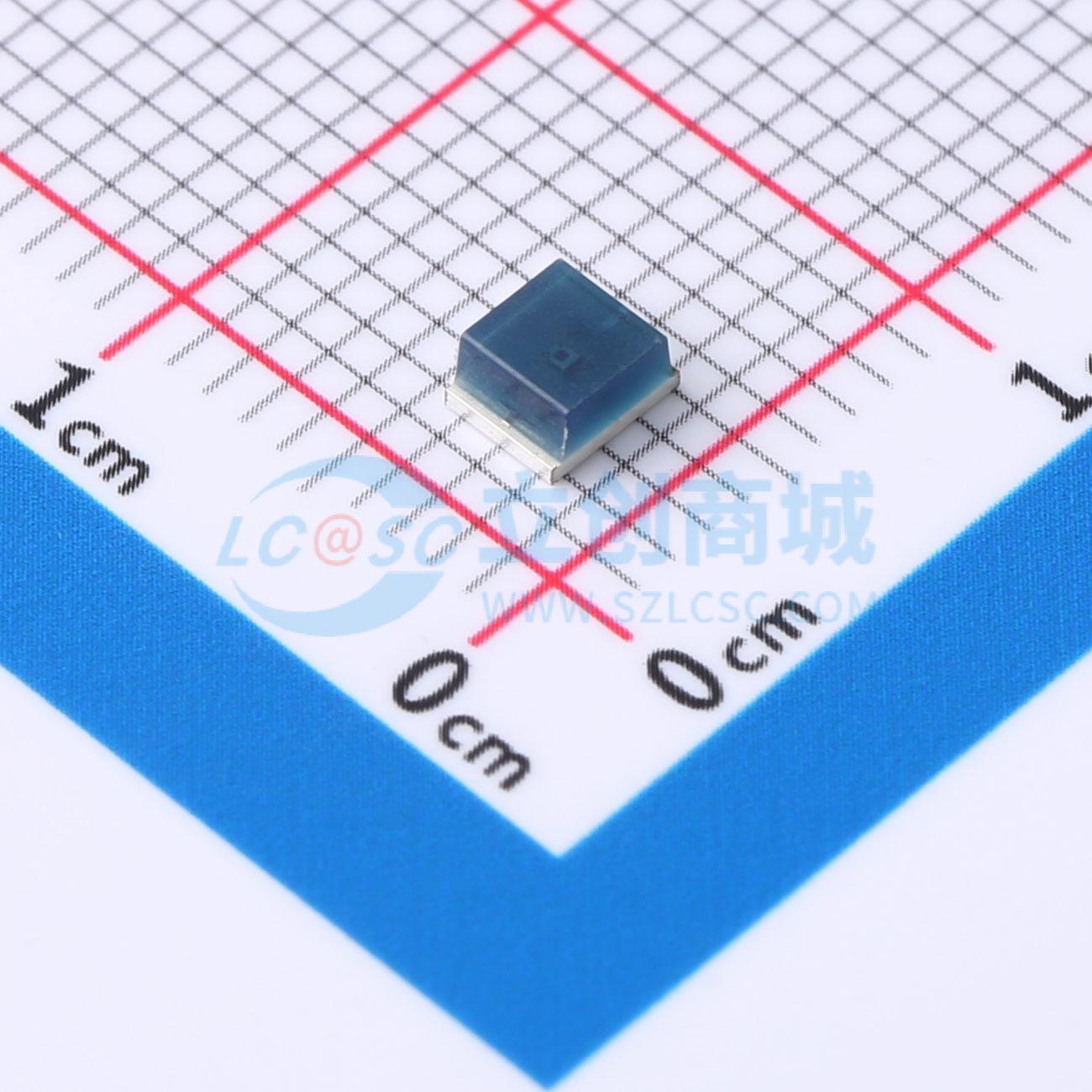

XYC-PT1411BC-I6
3528贴片接收可见光光敏传感器
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 光敏传感器 接收可见光光敏 抗干扰强 尺寸3.5*2.8Typ.550nm400-700nmVCC:1-10VTyp.3μAMax.0.1μA
- 品牌名称
- NEWOPTO(鑫永诚光电)
- 商品型号
- XYC-PT1411BC-I6
- 商品编号
- C6081301
- 商品封装
- SMD3528-2P
- 包装方式
- 编带
- 商品毛重
- 0.0697克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 环境光传感器 | |
| 感测类型 | 光强 | |
| 工作电压 | 1V~10V |
| 属性 | 参数值 | |
|---|---|---|
| 静态电流(Iq) | - | |
| 工作温度 | -30℃~+85℃ |
商品概述
XYC- PT1411BC- I6 是一款高灵敏度的环境光感测器，BT 板封装工艺，具有高耐热性、抗湿性、高可靠性、环保等优点，减少 LED 吸湿后过回流焊开路隐患，完美一比一替换普通 3528 光敏规格，性能稳定可靠。 XYC- PT1411BC- I6 is a high- sensitivity environmental light sensor, BT Board packaging process, with high heat resistance, moisture resistance, high reliability and other advantages, reduce the LED moisture after over- reflow soldering open circuit hidden trouble, a perfect one- to- one replacement of the common 3528 photosensitive specifications, stable and reliable performance.
商品特性
- 感光峰值波长 550nm Photosensitive peak wavelength λp = 550 nm
- 高可靠性 High reliability
- 低功耗 Low Power Consumption
- 符合 RoHS RoHS compliant
应用领域
- 替代传统 CDS 光敏电阻 Replacement of conventional CDS photosensitive resistors
- 适用于各类光控照明产品：如小夜灯等 Suitable for all kinds of light products: such as night lamp etc.
- 自动调节背景光：如 LCD、手机、照像机、电脑摄像头等 Products which need to adjust background light automatically, LCD, mobile phone, camera, computer camera etc.
- 控制各类光控影控玩具 Control all kinds of light and shadow controlled toys
- 各类光控红外检测测试设备等 All kinds of infrared light detection and testing equipment
