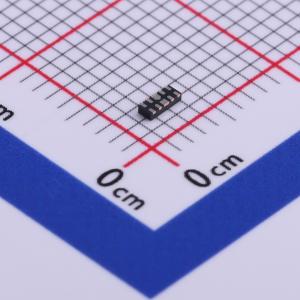

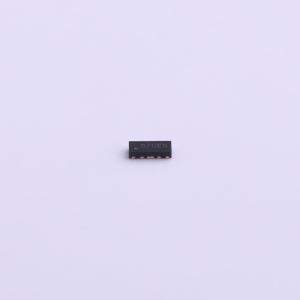

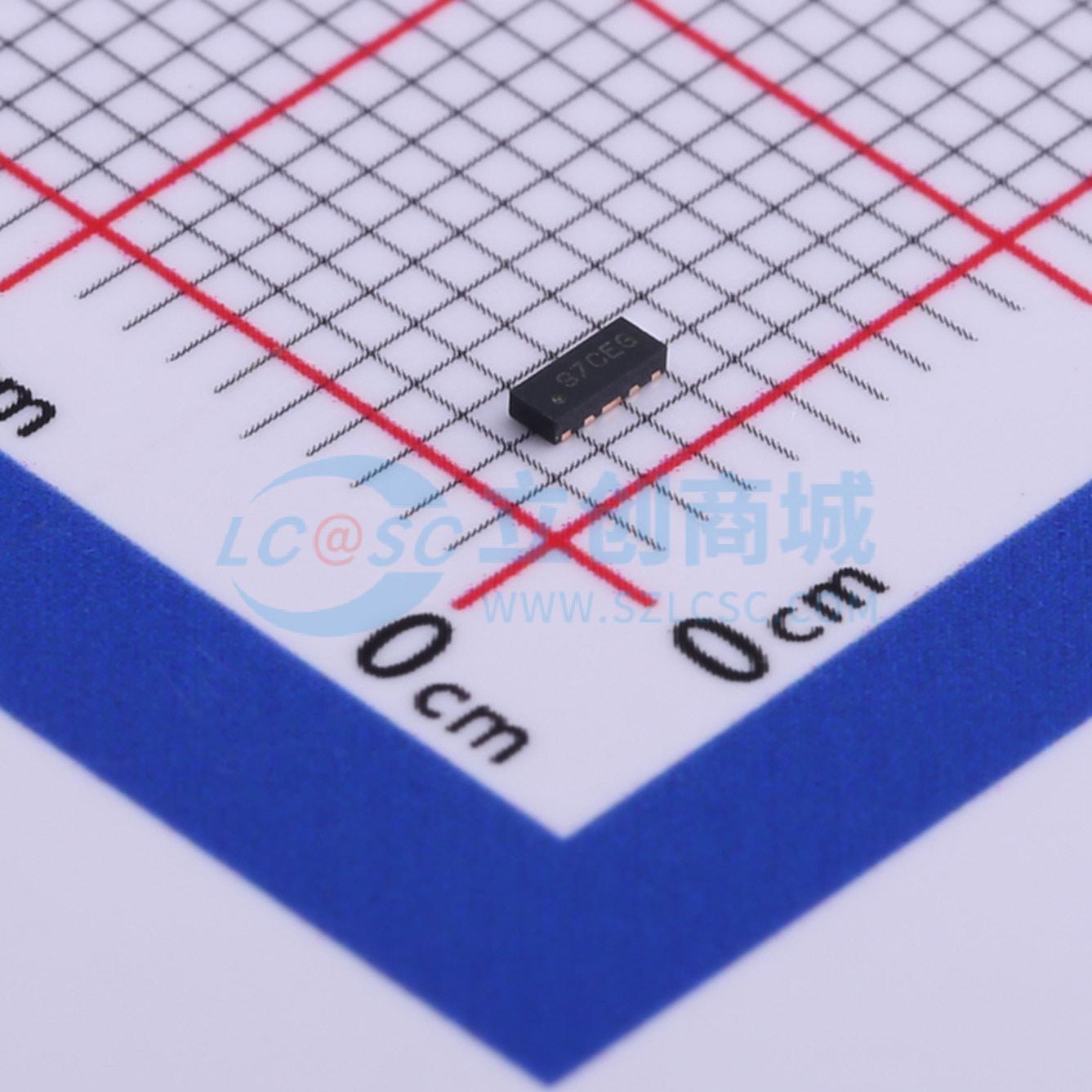

温馨提醒：图片仅供参考，商品以实物为准

ESD204DQAR

双向 3.6V 5.5A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

私有库下单最高享92折

描述: ESD204 适用于 USB 和 HDMI 且具有 5.5A 浪涌额定值的四通道 0.55pF、±3.6V、±30kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: ESD204DQAR
商品编号: C553132
商品封装: USON-10(1x2.5)
包装方式: 编带
商品毛重: 0.056克(g)

商品参数

商品概述

ESD204 is a bidirectional TVS ESD protection diode array that provides up to 5.5 A (8 / 20 μs) of surge protection for HDMI and USB. The rated ESD shock dissipation value of ESD204 reaches the highest level specified in the international standard IEC 61000-4-2 (Level 4). ESD204 offers low clamping and high differential bandwidth, enabling the device to transmit high-speed signals cleanly and providing strong protection for downstream devices. The device has a low capacitance value of 0.55 pF per channel, making it ideal for protecting high-speed interfaces with rates up to 6Gbps (such as HDMI 2.0, HDMI 1.4, USB 3.0, and Ethernet 1G). Low dynamic resistance and low clamping voltage ensure system-level protection against transient events. ESD204 comes in an industry-standard USON-10 (DQA) package. This package features through wiring with a pin pitch of 0.5 mm, which simplifies implementation and shortens design time.

商品特性

IEC 61000-4-2 Level 4 electrostatic discharge (ESD) protection
±30kV contact discharge
±30kV air-gap discharge
IEC 61000-4-4 electrical fast transient (EFT) protection
80A (5/50ns)
IEC 61000-4-5 surge protection
5.5 A (8 / 20 μs)
Low surge clamping voltage of 8.5 V at 5.5 A IPP
IO capacitance: 0.55pF (typical)
Compliant with HDMI 2.0 standard
DC breakdown voltage: 5.5V (minimum)
Ultra-low leakage current: 10nA (maximum)
Supports high-speed interfaces with rates up to 6Gbps
Industrial temperature range: -40°C to +125°C
Simple through-wiring package

应用领域

End devices
IP network cameras
Digital video recorders (DVR) and network video recorders (NVR)
Ethernet switches and routers
Portable computers and desktops
Set-top boxes
TVs and monitors
Mobile phones and tablets
Interfaces
HDMI 2.0
HDMI 1.4
USB 3.0
DisplayPort 1.3
PCI Express 3.0 bus interface
Ethernet 10/100/1000Mbps

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	双向
	反向截止电压(Vrwm)	3.6V
	钳位电压	8.5V
	峰值脉冲电流(Ipp)	5.5A@8/20us
	峰值脉冲功率(Ppp)	50W@8/20us
	击穿电压	7.9V

	属性	参数值
	反向电流(Ir)	10nA
	通道数	四路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-4；IEC 61000-4-5；IEC 61000-4-2
	类型	ESD
	Cj-结电容	0.55pF
