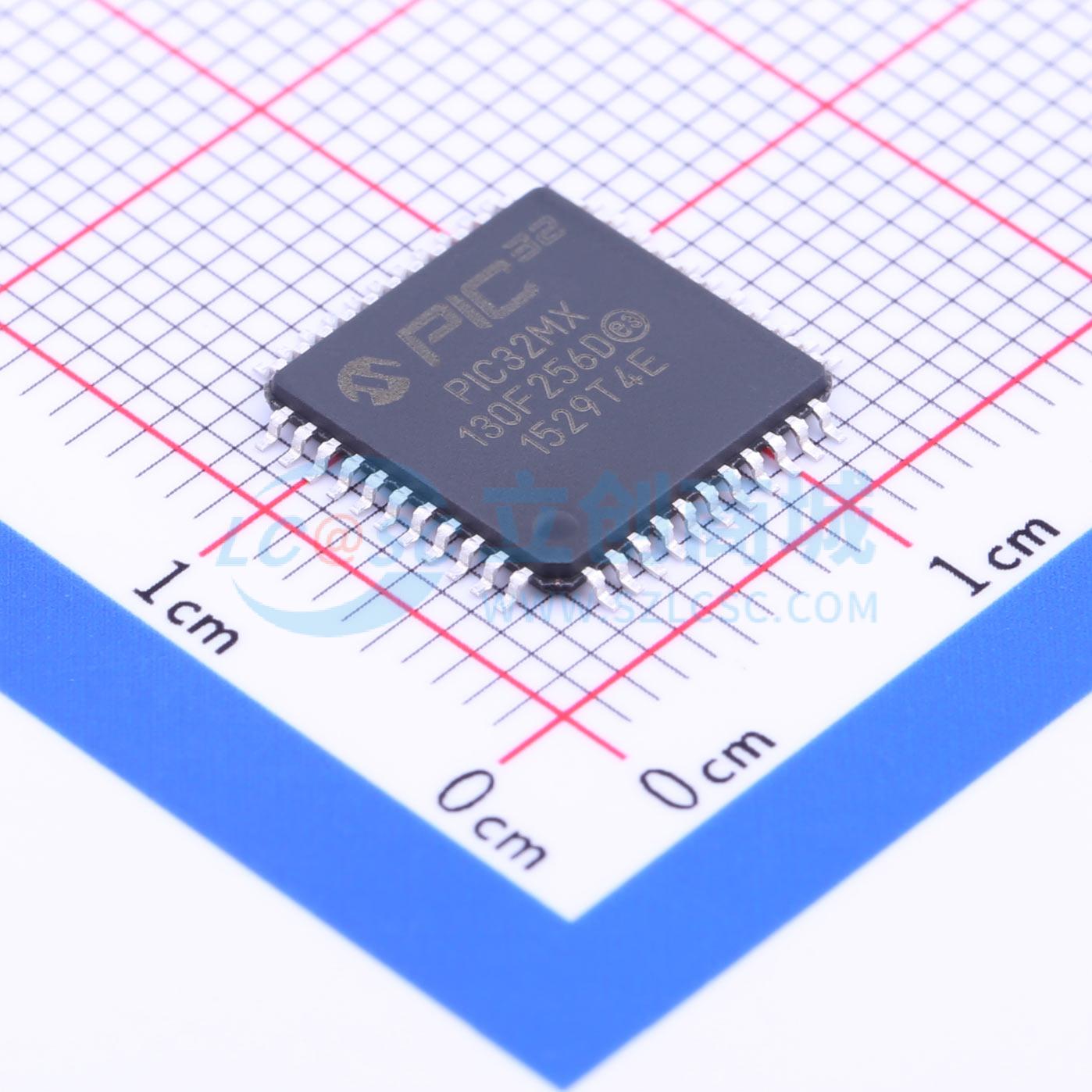

Name: MICROCHIP(美国微芯) PIC32MX130F256D-50I/PT
Brand: MICROCHIP(美国微芯)
SKU: C220661
Price: 11.55 CNY
Availability: OutOfStock

工作条件：2.3V to 3.6V, -40℃ to +105℃, DC to 40 MHz；2.3V to 3.6V, -40℃ to +85℃, DC to 50 MHz
MIPS16e mode for up to 40% smaller code size
Code-efficient (C and Assembly) architecture
Single-cycle (MAC) 32×16 and two-cycle 32×32 multiply
0.9% internal oscillator
Programmable PLLs and oscillator clock sources
Fail-Safe Clock Monitor (FSCM)
Independent Watchdog Timer
Fast wake-up and start-up
Low-power management modes (Sleep and Idle)
Integrated Power-on Reset and Brown-out Reset
0.5 mA/MHz dynamic current (typical)
44 μA IPD current (typical)
Data communication: I²S, LJ, RJ, and DSP modes
Control interface: SPI and I²C
Master clock: Generation of fractional clock frequencies; Can be synchronized with USB clock; Can be tuned in run-time
ADC Module: 10-bit 1.1 Msps rate with one S&H; Up to 10 analog inputs on 28-pin devices and 13 analog inputs on 44-pin devices
Flexible and independent ADC trigger sources
Charge Time Measurement Unit (CTMU): Supports mTouch capacitive touch sensing; Provides high-resolution time measurement (1 ns); On-chip temperature measurement capability
Comparators: Up to three Analog Comparator modules; Programmable references with 32 voltage points
Five General Purpose Timers: Five 16-bit and up to two 32-bit Timers/Counters
Five Output Compare (OC) modules
Five Input Capture (IC) modules
Peripheral Pin Select (PPS) to allow function remap
Real-Time Clock and Calendar (RTCC) module
USB 2.0-compliant Full-speed OTG controller
Two UART modules (12.5 Mbps): Supports LIN 2.0 protocols and IrDA support
Two 4-wire SPI modules (25 Mbps)
Two I²C modules (up to 1 Mbaud) with SMBus support
PPS to allow function remap
Parallel Master Port (PMP)
Four channels of hardware DMA with automatic data size detection
Two additional channels dedicated for USB
Programmable Cyclic Redundancy Check (CRC)
10 mA source/sink on all I/O pins and up to 14 mA on non-standard VOH
5V-tolerant pins
Selectable open drain, pull-ups, and pull-downs
External interrupts on all I/O pins
AEC-Q100 REVG (Grade -40℃ to +105℃) planned
Class B Safety Library, IEC 60730
In-circuit and in-application programming
4-wire MIPS Enhanced JTAG interface
Unlimited program and six complex data breakpoints
IEEE 1149.2-compatible (JTAG) boundary scan

	属性	参数值
	商品目录	单片机(MCU/MPU/SOC)
	CPU内核	MIPS32 M4K
	CPU最大主频	50MHz
	CPU位数	32 Bit
	程序存储容量	256KB
	程序存储器类型	FLASH
	RAM容量	16KB

	属性	参数值
	EEPROM容量	-
	I/O数量	35
	ADC(位数)	10bit
	振荡器类型	内置
	工作电压	2.3V~3.6V
	工作温度	-40℃~+85℃
