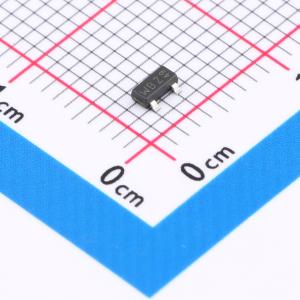

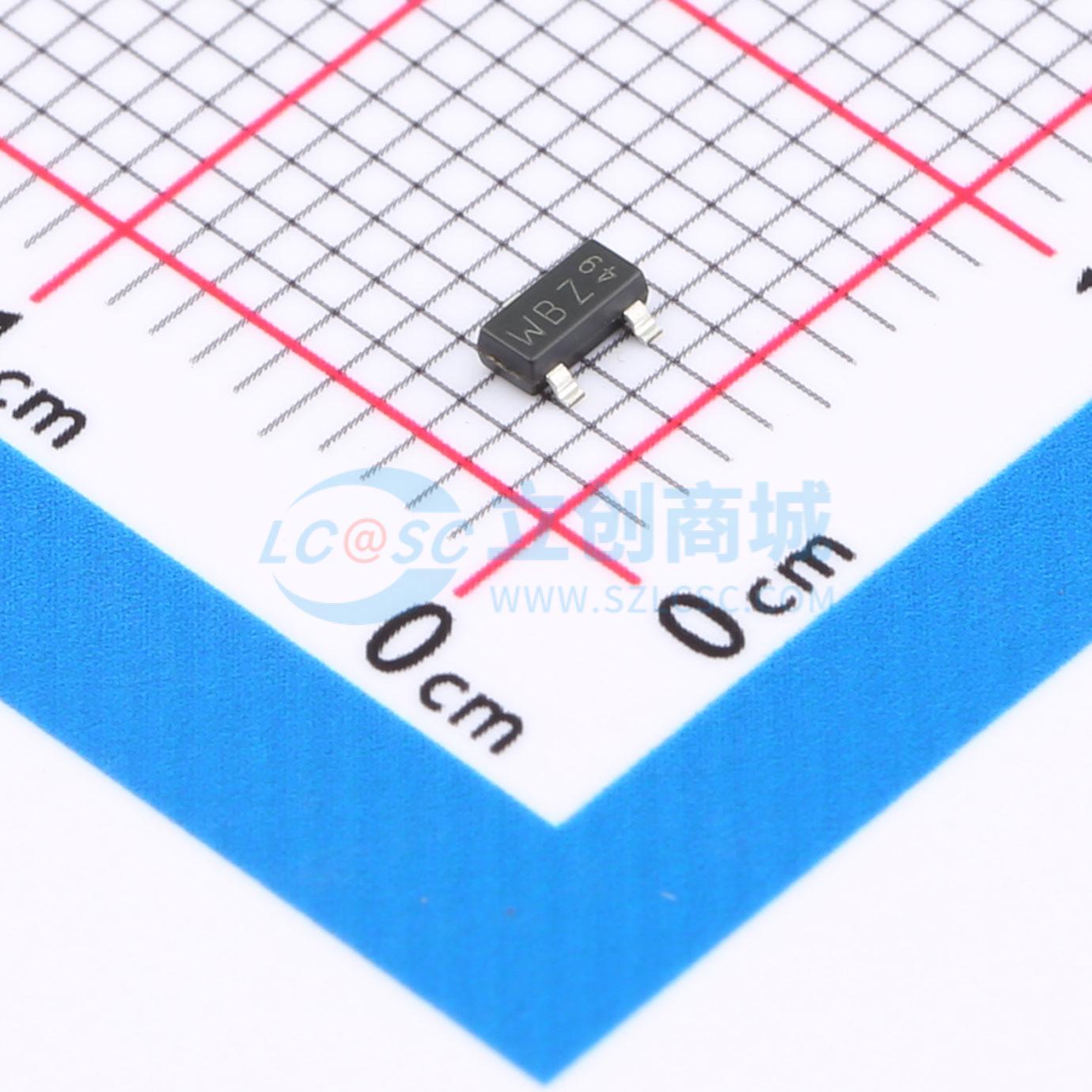

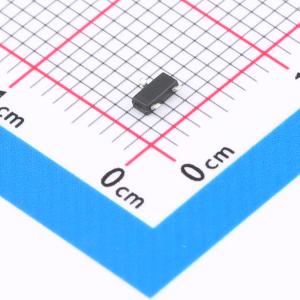

PMV16XNR



















It can replace PMV16XNR



In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
V DS drain-source voltage - 20 V
V GS gate-source voltage
T j = 25 °C
-12 12 V
V GS = 4.5 V; T amb = 25 °C; t ≤ 5 s [1] - 8.6 A
V GS = 4.5 V; T amb = 25 °C [1] - 6.8 A
I D drain current
V GS = 4.5 V; T amb = 100 °C [1] - 4.3 A
I DM peak drain current T amb = 25 °C; single pulse; t p ≤ 10 μs - 27 A
[2] - 510 mW T amb = 25 °C
[1] - 1200 mW
P tot total power dissipation
T sp = 25 °C - 6940 mW
T j junction temperature -55 150 °C
T amb ambient temperature -55 150 °C
T stg storage temperature -65 150 °C
Source-drain diode
I S source current T amb = 25 °C [1] - 1.2 A
[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and mounting pad
for drain 6 cm 2 .
[2] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.
