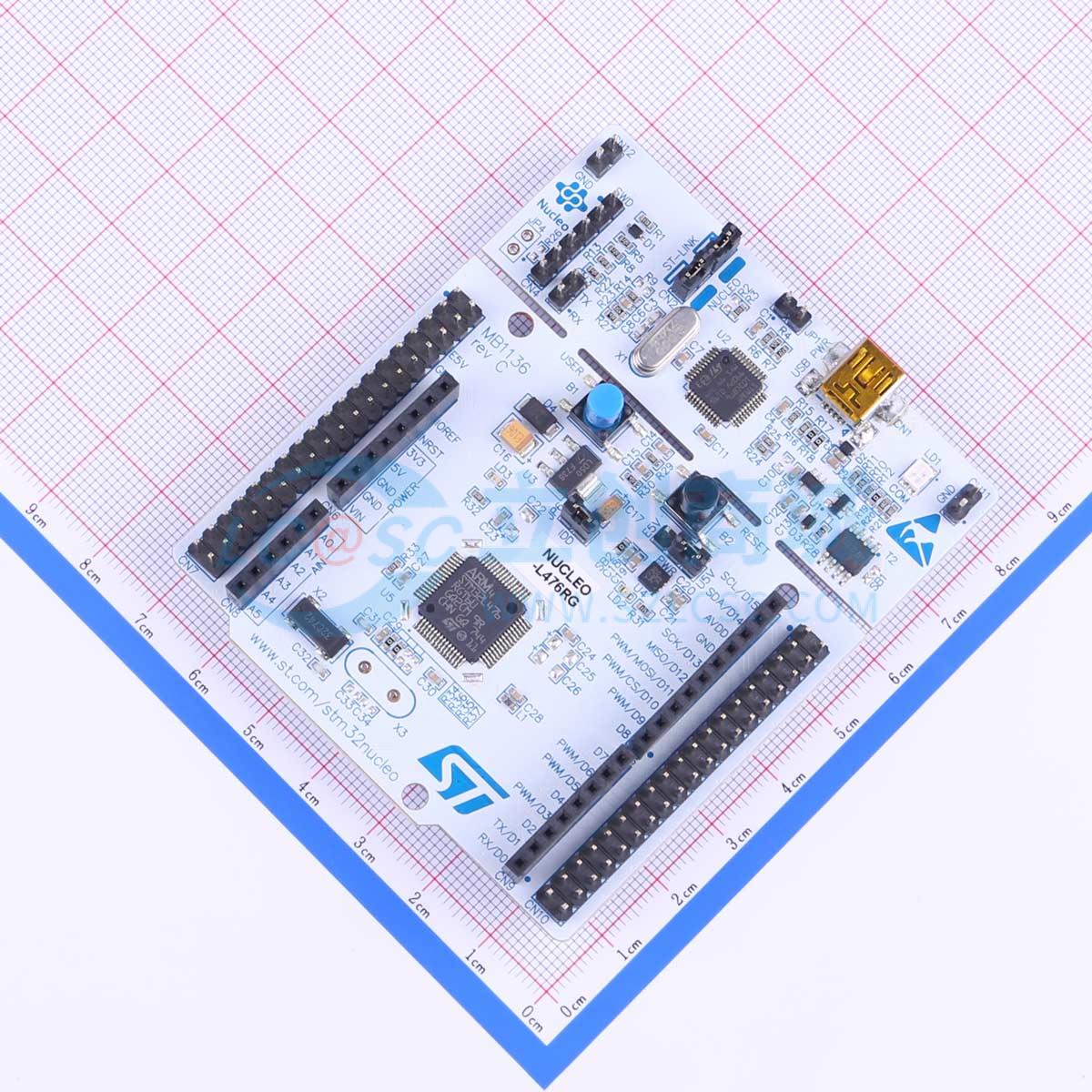

NUCLEO-L476RG

STM32 Nucleo-64 development board with STM32L476RG MCU, supports Arduino and ST morpho connectivity

https://www.st.com/en/evaluation-tools/nucleo-l476rg.html

Schematic Packs (原理图及PCB)

https://www.st.com/resource/en/schematic_pack/nucleo_64pins_sch.zip
https://www.st.com/content/ccc/resource/technical/layouts_and_diagrams/schematic_pack/71/1e/2a/ac/b5/c1/4b/a9/nucleo_64pins_sch.zip/files/nucleo_64pins_sch.zip/jcr:content/translations/en.nucleo_64pins_sch.zip

推荐配套超低功耗LDO：

TPS78218DDCR 1.8v，150mA，0.13V压差，0.5uA静态电流，0.018uA关断电流

TPS78228DDCR 2.8v，150mA，0.13V压差，0.5uA静态电流，0.018uA关断电流

TPS78230DDCR 3.0v，150mA，0.13V压差，0.5uA静态电流，0.018uA关断电流

TPS78233DDCR 3.3v，150mA，0.13V压差，0.5uA静态电流，0.018uA关断电流

推荐超低功耗LED驱动：

TPS61042DRBR Vin：1.8v~6v，0.1uA关断电流，38uA静态电流，PWM亮度调节

类似相关产品：

NUCLEO-L432KC STM32 Nucleo-32 development board with STM32L432KC MCU, supports Arduino connectivity

NUCLEO-L476RG STM32 Nucleo-64 development board with STM32L476RG MCU, supports Arduino and ST morpho connectivity

NUCLEO-F746ZG STM32 Nucleo-144 development board with STM32F746ZG MCU, supports Arduino, ST Zio and morpho connectivity
