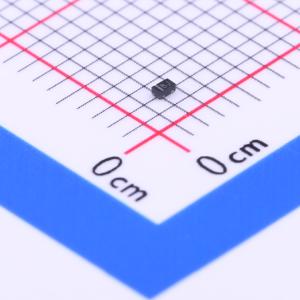

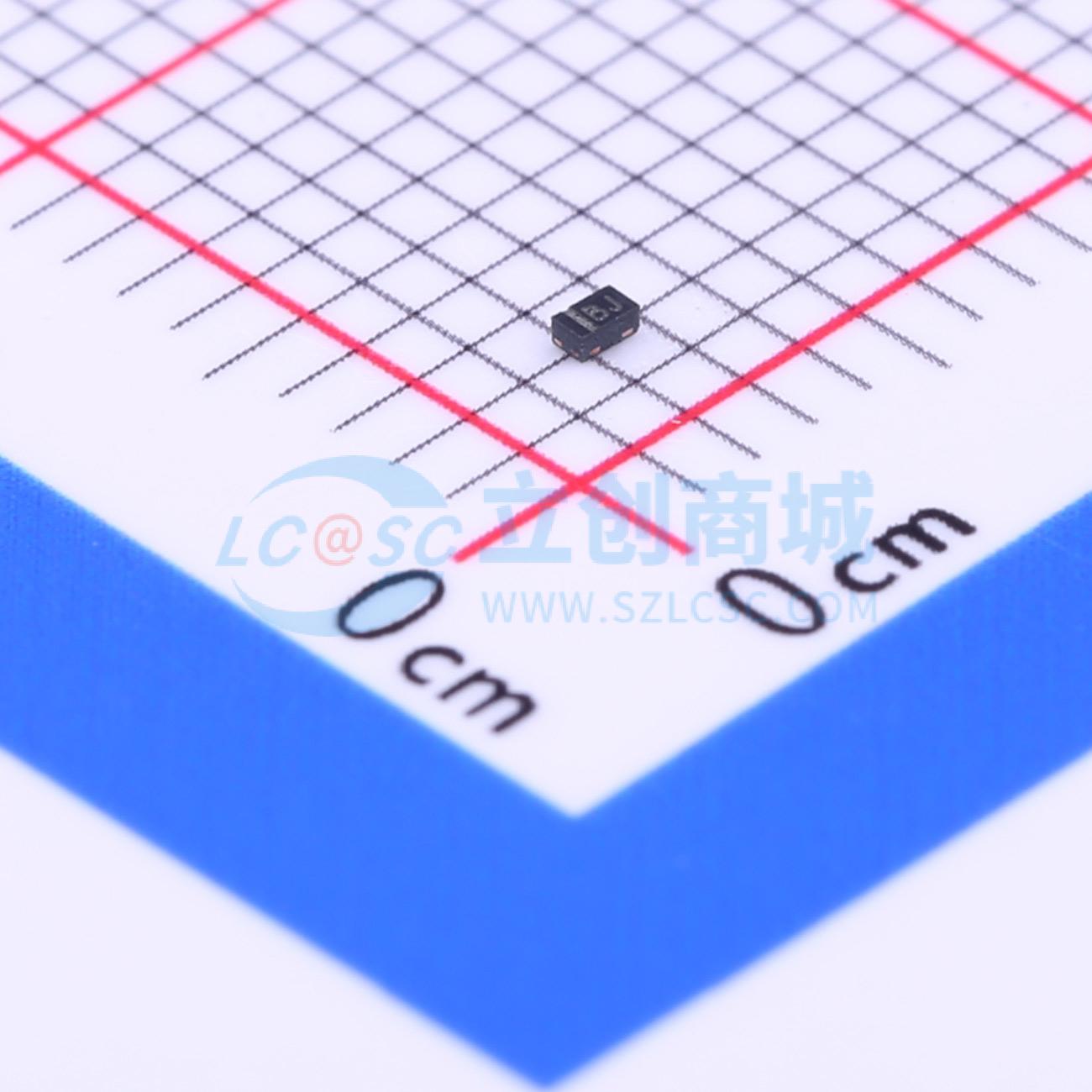

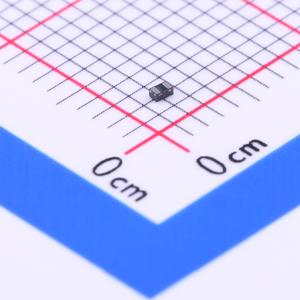

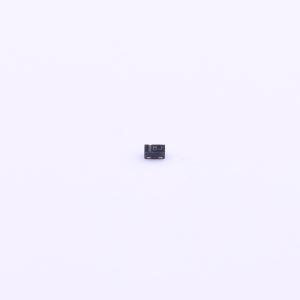

温馨提醒：图片仅供参考，商品以实物为准
TPD1E10B09DPYR
双向 9V 4.5A@8/20us
- 描述
- TPD1E10B09 采用 0402 封装、具有 6A 8/20us 浪涌的 10pF、±9V、±20kV ESD 保护二极管
- 品牌名称
- TI(德州仪器)
- 商品型号
- TPD1E10B09DPYR
- 商品编号
- C88031
- 商品封装
- X1-SON-2(0.6x1)
- 包装方式
- 编带
- 商品毛重
- 0.009克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 极性 | 双向 | |
| 反向截止电压(Vrwm) | 9V | |
| 钳位电压 | 13V | |
| 峰值脉冲电流(Ipp) | 4.5A@8/20us | |
| 峰值脉冲功率(Ppp) | 90W@8/20us | |
| 击穿电压 | 9.5V |
| 属性 | 参数值 | |
|---|---|---|
| 反向电流(Ir) | 100nA | |
| 通道数 | 单路 | |
| 工作温度 | -40℃~+125℃ | |
| 防护等级 | IEC 61000-4-5；IEC 61000-4-2 | |
| 类型 | ESD | |
| Cj-结电容 | 10pF |
商品概述
The TPD1E10B09 device is a single-channel ESD transient voltage suppressor (TVS) diode in a small 0402 package. This ESD protection diode provides ±20 kV IEC 61000-4-2 (Level 4) contact and air-gap ESD protection. The device offers a back-to-back TVS diode configuration to support bipolar or bidirectional signals. The 10 pF line capacitance is suitable for a wide range of applications capable of supporting data rates up to 500 Mbps. The 0402 package is an industry-standard package that facilitates component installation in space-constrained applications. Typical applications of this ESD protection TVS diode include providing circuit protection for audio lines (microphones, headphones, and speakers), SD interfaces, keyboards or other buttons, the V_BUS and ID pins of USB ports, and general-purpose I/O ports. This ESD clamp helps protect end devices such as e-book readers, tablets, remote controllers, wearables, set-top boxes, and electronic point-of-sale terminals.
商品特性
- Provides system-level ESD protection for I/O interfaces up to ±9 V
- IEC 61000-4-2 Level 4:
- ±20 kV (air-gap discharge)
- ±20 kV (contact discharge)
- IEC 61000-4-5 surge protection:
- 4.5 A (8/20 μs)
- I/O capacitance of 10 pF (typical)
- R_DYN of 0.5 Ω (typical)
- DC breakdown voltage of ±9.5 V (minimum)
- Ultra-low leakage current of 100 nA (maximum)
- Clamping voltage of 13 V (maximum at |I_PP = 1 A)
- Industrial temperature range: -40°C to 125°C
- Space-saving 0402 form factor (1 mmx0.6 mmx0.5 mm)
应用领域
- End devices:
- Tablets
- Remote controllers
- Wearables
- Set-top boxes
- Electronic point-of-sale (EPOS)
- E-book readers
- Interfaces:
- Audio lines
- Buttons
- General-purpose input/output (GPIO)
