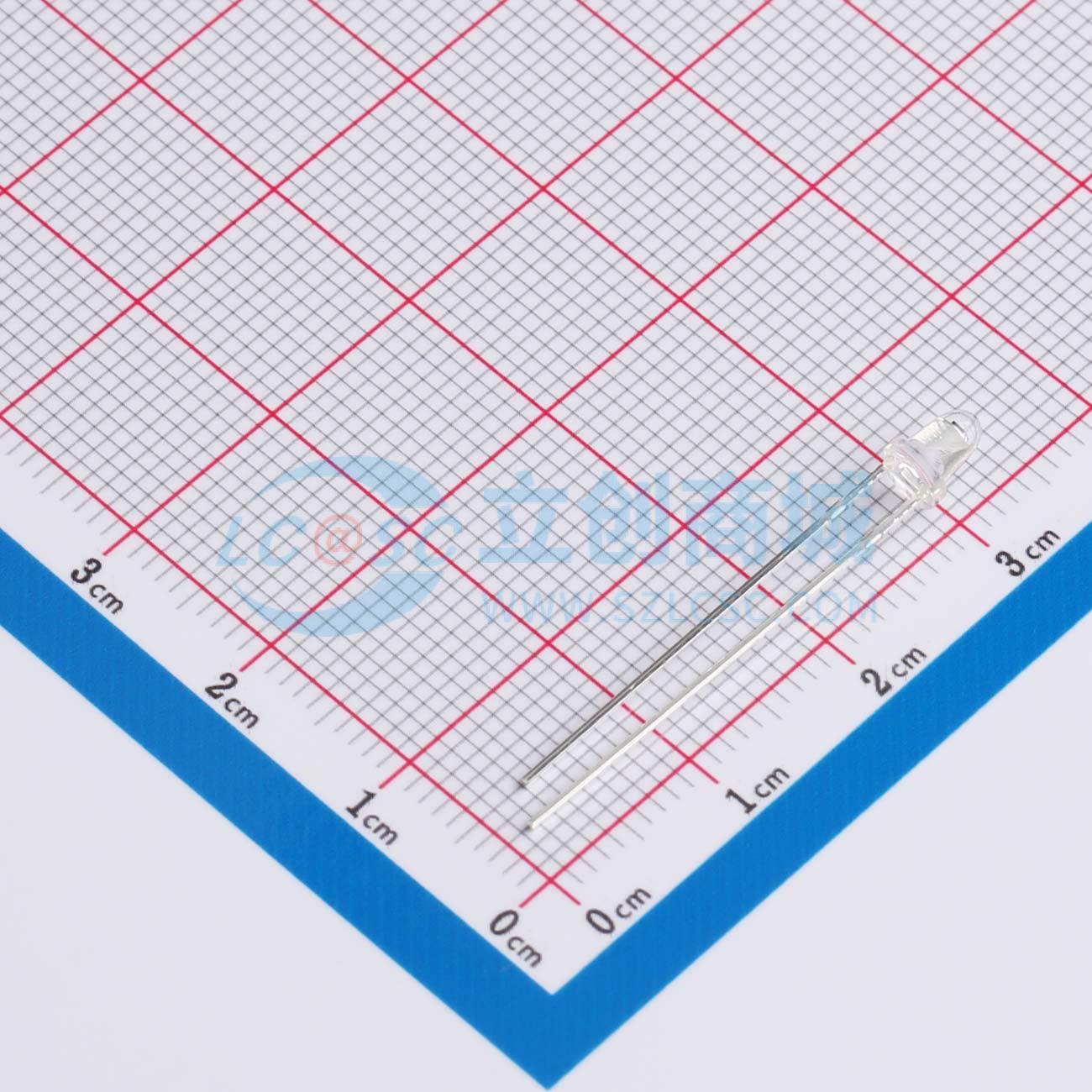

温馨提醒：图片仅供参考，商品以实物为准
XYC-PT3A850AC-A7
3mm圆头30°光敏二极管
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 光敏二极管 光敏三极管 尺寸3*5.1Typ.850nm400-1100nmmin.30V（Bvceo）Typ.7.0μAMax.0.1μA
- 品牌名称
- NEWOPTO(鑫永诚光电)
- 商品型号
- XYC-PT3A850AC-A7
- 商品编号
- C6081270
- 商品封装
- 插件,D=3mm
- 包装方式
- 袋装
- 商品毛重
- 0.1555克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 环境光传感器 | |
| 工作电压 | 400mV~30V |
| 属性 | 参数值 | |
|---|---|---|
| 静态电流(Iq) | - | |
| 工作温度 | -30℃~+85℃ |
商品概述
鑫永诚PT850红外LED是一款高灵敏度的光敏传感器插件式外型封装，是传统CDS光敏电阻的理想替代产品。 NEW OPTOPT850 infrared LED is a high sensitivity of the optical sensor, in DIP package, is the ideal substitute for traditional CDS photosensitive resistor products
商品特性
- 峰值波长850nm Peak wavelength λp = 850nm
- 高可靠性High reliability
- 低功耗Low Power Consumption
- 符合RoHS RoHS compliant
应用领域
- 替代传统CDS光敏电阻Instead of conventional CDS photosensitive resistors
- 适用于各类光控照明产品：如小夜灯等Suitable for all kinds of light products: such as night lamp etc.
- 自动调节背景光：如LCD、手机、照像机、电脑摄像头等As LCD, phone, camera, computer camera etc.
- 控制各类光控影控玩具Control all kinds of light controlled picture control toys
- 各类光控红外检测测试设备等All kinds of light controlled infrared inspection and testing equipment
