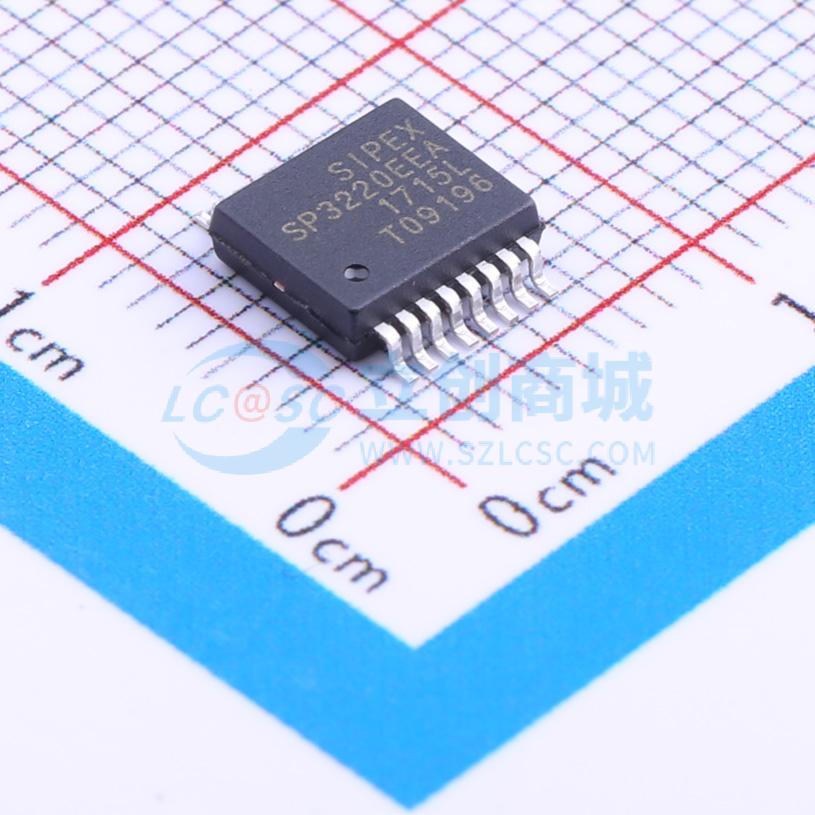

SP3220EEA-L/TR
- 1+: ¥4.38 / 个
- 10+: ¥3.62 / 个
- 30+: ¥3.23 / 个
- 100+: ¥2.85 / 个
- 500+: ¥2.31 / 个
- 1500+: ¥2.19 / 个 (折合1圆盘3285元)
1+: |
¥4.38 / 个 |
10+: |
¥3.62 / 个 |
30+: |
¥3.23 / 个 |
100+: |
¥2.85 / 个 |
500+: |
¥2.31 / 个 |
1500+: |
¥2.19 / 个 (折合1圆盘3285元) |
单击复制
单击复制
商品介绍
属性 | 参数值 | |
---|---|---|
商品目录 | RS232芯片 | |
类型 | 收发器 | |
驱动器/接收器 | 1/1 | |
数据速率 | 120Kbps | |
电源电压 | 3V~5.5V |
■ Meets all EIA/TIA-232-F Standards
from a +3.0V to +5.5V power supply
? Interoperable with RS-232 and V.28 at +2.7V
■ Supports High Serial Data Rates:
? 120kbps SP3220E
? 250kbps SP3220EB
? 1Mbps SP3220EU
■ 1μA Low Power Shutdown Mode
■ Footprint Compatible with MAX3221E, ISL3221
■ 4 x 1.0μF External Charge Pump Capacitors
■ Improved ESD Specifications:
+15kV Human Body Model
+15kV IEC61000-4-2 Air Discharge
+8kV IEC61000-4-2 Contact Discharge
The SP3220E devices are RS-232 driver/receiver solutions intended for portable or handheld applications such as palmtop computers, intrumentation and consumer products. These devices incorporate a high-efficiency, charge-pump power supply that allows the SP3220E devices to deliver true RS-232 performance from a single power supply ranging from +3.0V to +5.0V. This charge pump requires only 0.1μF capacitors in 3.3V operation. The ESD tolerance of the these devices are over +/-15kV for both Human Body Model and IEC61000-4-2 Air discharge test methods. All devices have a low-power shutdown mode where the driver outputs and charge pumps are disabled. During shutdown, the supply current falls to less than 1μA.
