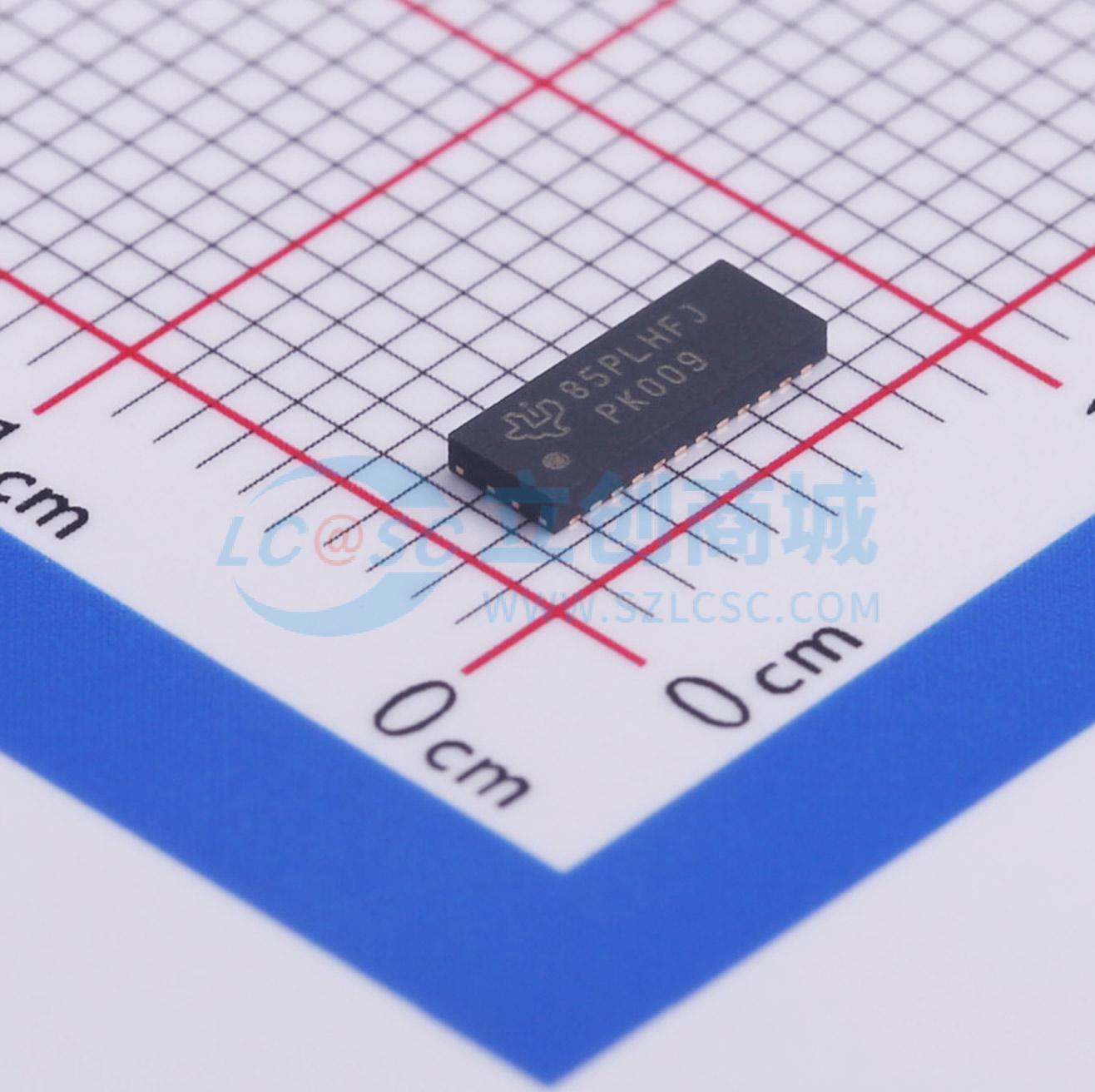

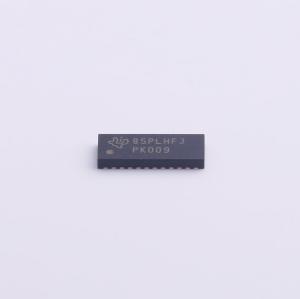

温馨提醒：图片仅供参考，商品以实物为准
TPD8S009DSMR
单向 5.5V 2.5A@8/20us
- 描述
- TPD8S009 适用于 HDMI 和 DisplayPort 的 8 通道 0.8pF、5.5V、±8kV ESD 保护二极管
- 品牌名称
- TI(德州仪器)
- 商品型号
- TPD8S009DSMR
- 商品编号
- C471873
- 商品封装
- SON-15
- 包装方式
- 编带
- 商品毛重
- 0.047克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 极性 | 单向 | |
| 反向截止电压(Vrwm) | 5.5V | |
| 钳位电压 | - | |
| 峰值脉冲电流(Ipp) | 2.5A@8/20us | |
| 峰值脉冲功率(Ppp) | 25W@8/20us | |
| 击穿电压 | 9V |
| 属性 | 参数值 | |
|---|---|---|
| 反向电流(Ir) | 100nA | |
| 通道数 | 八路 | |
| 工作温度 | -40℃~+85℃ | |
| 防护等级 | IEC 61000-4-2 | |
| 类型 | ESD | |
| Cj-结电容 | 0.8pF |
商品概述
The TPD8S009 device is an eight-channel TVS diode array for ESD protection. The TPD8S009 is rated to dissipate ESD strikes at the highest level specified in the IEC 61000-4-2 (Level 4) international standard, with a contact discharge ESD protection level of ±8kV. The device's low capacitance (0.8pF) combined with excellent matching between differential signal pairs enables the device to provide transient voltage suppression circuit protection for high-speed equivalent data rates (3dB bandwidth >4GHz). The TPD8S009 is available in an 8-pin SON package. This package enables simple design and layout because its footprint exactly matches the high-speed pinouts of HDMI and DisplayPort. The TPD8S009 provides an optional VCC supply pin that can be connected to the system power plane. There is a blocking diode at the VCC pin, which supports the I_OFF function of the TPD8S009. When the VCC pin is connected to 0V, the TPD8S009 can handle live signals on the signal pins. During startup, the VCC pin allows all internal circuit nodes of the TPD8S009 to be at a known potential. However, connecting the optional VCC pin to the board power plane does not affect the system-level ESD performance of the TPD8S009.
商品特性
- IEC 61000-4-2 Level 4 ESD protection - ±8kV contact discharge
- IEC 61000-4-5 surge protection - 2.5A (8/20μs)
- I/O capacitance: 0.8pF (typical)
- Low leakage current: 10nA (typical)
- Supports high-speed differential data rates (3dB bandwidth >4GHz)
- I_off feature
- Industrial temperature range: -40°C to +85°C
- Easy through-wiring package for HDMI and DisplayPort connectors
应用领域
- End equipment
- Set-top boxes
- Portable and desktop computers
- Projectors
- Video surveillance
- DisplayPort 1.1
- HDMI 1.4
- DVI
