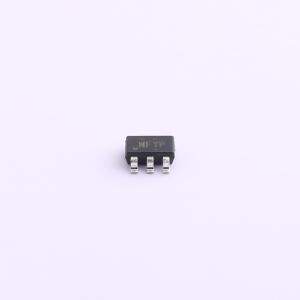

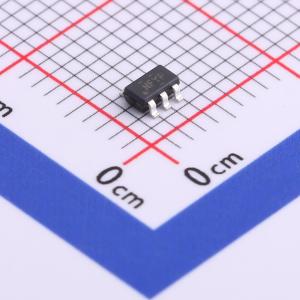

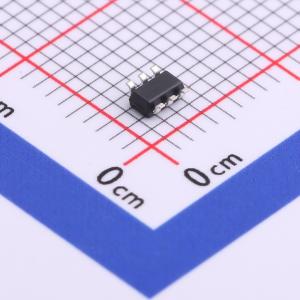

TPD4E001DBVR

单向 5.5V 5.5A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: TPD4E001 适用于 USB 2.0 且具有 1nA 最大漏电流和 VCC 引脚的四路 1.5pF、5.5V、±8kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: TPD4E001DBVR
商品编号: C465736
商品封装: SOT-23-6
包装方式: 编带
商品毛重: 0.041克(g)

商品参数

商品概述

The TPD4E001 is an electrostatic discharge (ESD) protection diode array based on a 4-channel transient voltage suppressor (TVS). The TPD4E001 is rated to dissipate ESD strikes at the highest level specified in the IEC 61000-4-2 (Level 4) international standard. Each channel of the device has an IO capacitance of 1.5 pF, making it well-suited for high-speed data IO interfaces. This ultra-low leakage current (maximum < 1 nA) is suitable for high-precision analog measurement applications such as blood glucose meters and heart rate monitors. The TPD4E001 is available in DRL (SOT), DBV (SOT-23), DCK (SC-70), DRS (QFN), and DPK (PUSON) packages and is rated for an operating temperature range of -40°C to +85°C.

商品特性

IEC 61000-4-2 ESD protection (Level 4)
±8kV contact discharge
±15kV air-gap discharge
5.5A peak pulse current (8/20 μs pulse)
IO capacitance: 1.5pF (typical)
Low leakage current: 1nA (maximum)
Low supply current: 1nA
0.9V to 5.5V supply voltage range
Space-saving DRL, DBV, DCK, DPK, and DRS package options
Alternate 2-channel, 3-channel, 6-channel options available: TPD2E001, TPD3E001, TPD6E001

应用领域

USB 2.0
Ethernet
FireWire serial bus
LVDS
SVGA video connections
Blood glucose meters

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	单向
	反向截止电压(Vrwm)	5.5V
	钳位电压	17V
	峰值脉冲电流(Ipp)	5.5A@8/20us
	峰值脉冲功率(Ppp)	100W@8/20us
	击穿电压	11V

	属性	参数值
	反向电流(Ir)	1nA
	通道数	四路
	工作温度	-40℃~+85℃
	防护等级	IEC 61000-4-2
	类型	ESD
	Cj-结电容	1.5pF
