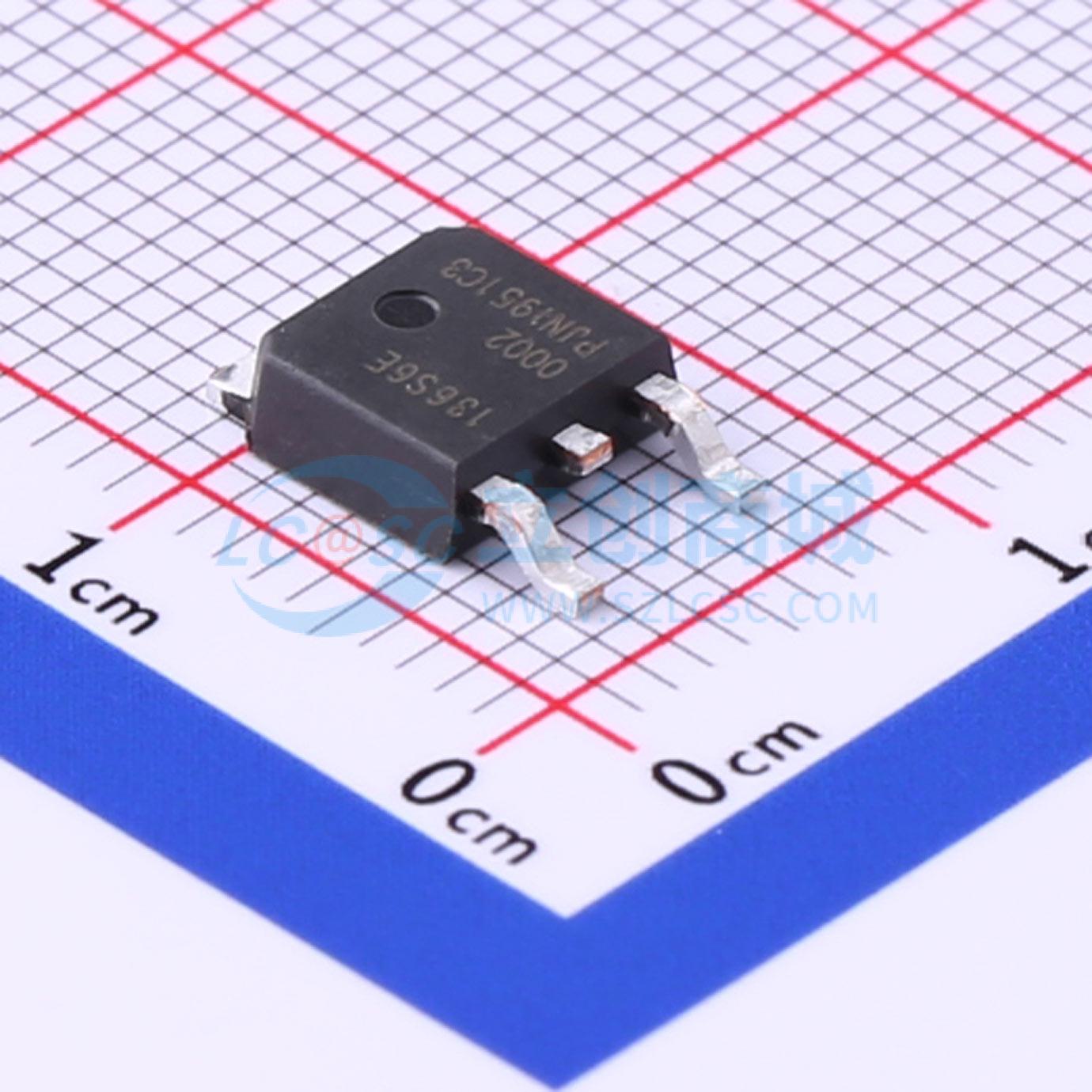

BT136S-600E,118
600V 15mA
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- Planar passivated sensitive gate four quadrant triac in a TO252 (DPAK) surface- mountable plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
- 品牌名称
- WeEn(瑞能)
- 商品型号
- BT136S-600E,118
- 商品编号
- C581425
- 商品封装
- DPAK
- 包装方式
- 编带
- 商品毛重
- 0.468克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 晶闸管(可控硅)/模块 | |
| 可控硅类型 | - | |
| 断态峰值电压(Vdrm) | 600V | |
| 通态电流(It) | 4A | |
| 浪涌电流 | 27A |
| 属性 | 参数值 | |
|---|---|---|
| 门极平均耗散功率(PG(AV)) | 500mW | |
| 门极触发电流(Igt) | 10mA | |
| 门极触发电压(Vgt) | 1V | |
| 保持电流(Ih) | 15mA | |
| 工作温度 | - |
