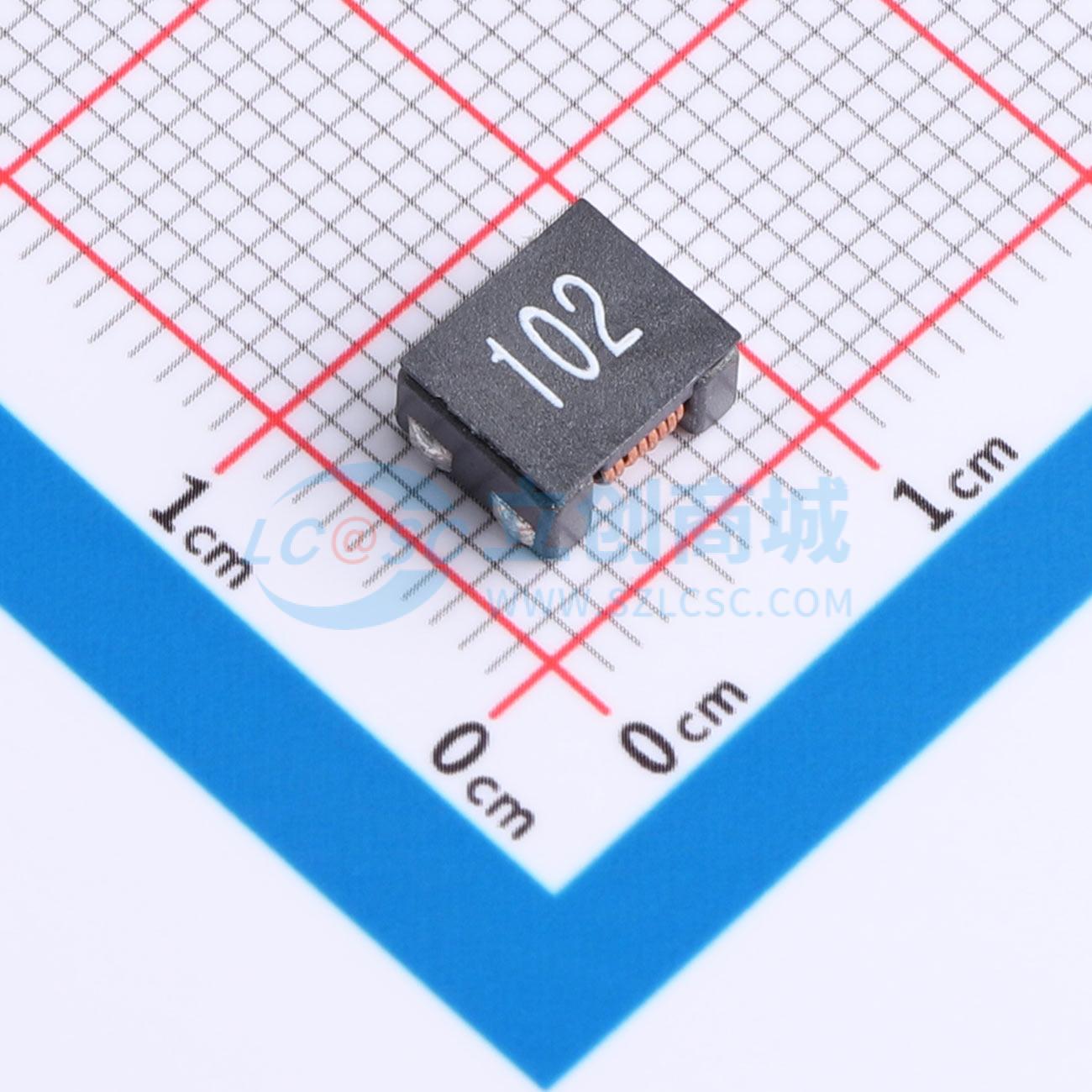

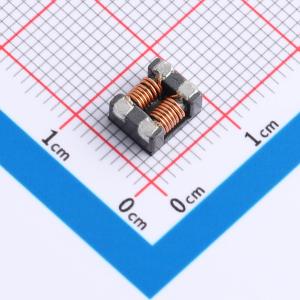

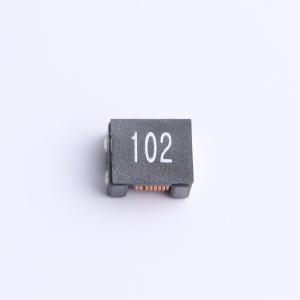

温馨提醒：图片仅供参考，商品以实物为准
ZEACM7060F-102T3A30
两路 贴片共模滤波器 阻抗1.02kΩ@100MHz 3.3A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 两路 贴片共模滤波器 阻抗1.02kΩ@100MHz 3.3A
- 品牌名称
- ZE(增益)
- 商品型号
- ZEACM7060F-102T3A30
- 商品编号
- C53154880
- 商品封装
- SMD-4P,7x6mm
- 包装方式
- 编带
- 商品毛重
- 0.767231克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 共模滤波器 | |
| 通道数 | 2 | |
| 电感@频率 | - | |
| 额定电流 | 3.3A | |
| 阻抗@频率 | 1.02kΩ@100MHz | |
| 额定电压 | 125V |
| 属性 | 参数值 | |
|---|---|---|
| 额定电压(AC) | - | |
| 耐电压 | - | |
| 直流电阻(DCR) | 15.5mΩ | |
| 工作温度 | -55℃~+125℃ | |
| 绝缘电阻 | 10MΩ |
