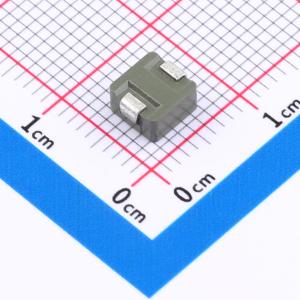

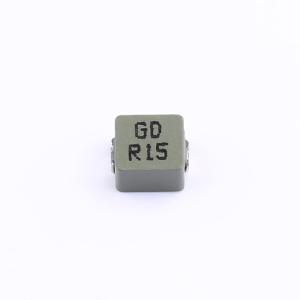

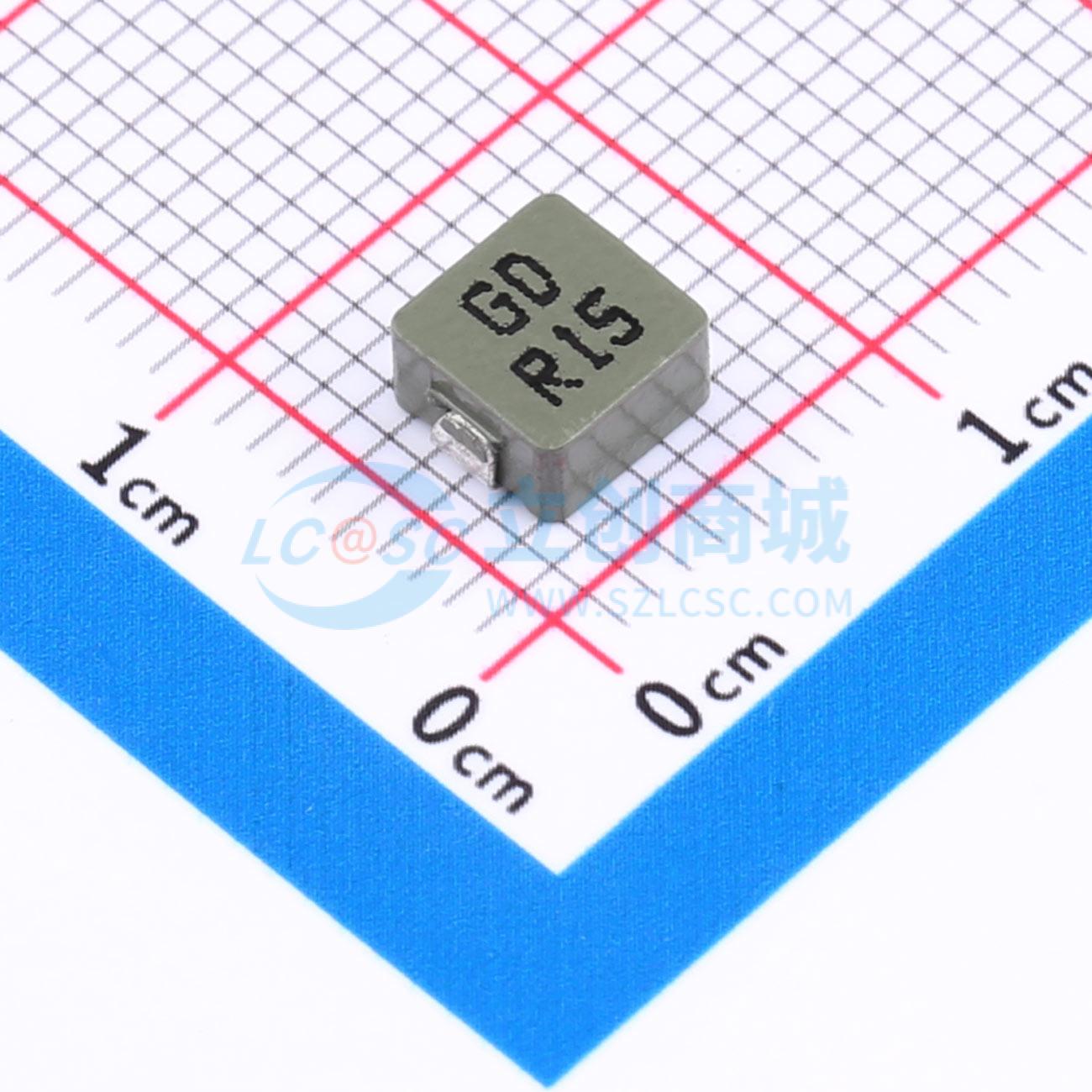

温馨提醒：图片仅供参考，商品以实物为准
GDIM0530-R15S1MTF-0R95
0.15uH±20% 35A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 一体成型电感,0.15uH±20%,5.75*5.2*3.0mm,温升电流(IRMS):35A,饱和电流(ISAT):41A,DCR:0.95mΩ±10%
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM0530-R15S1MTF-0R95
- 商品编号
- C49237916
- 商品封装
- SMD,5.8x5.2mm
- 包装方式
- 编带
- 商品毛重
- 0.63465克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 150nH | |
| 精度 | ±20% | |
| 额定电流 | 35A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 41A | |
| 直流电阻(DCR) | 0.95mΩ | |
| 类型 | 一体成型电感 |
