温馨提醒：图片仅供参考，商品以实物为准

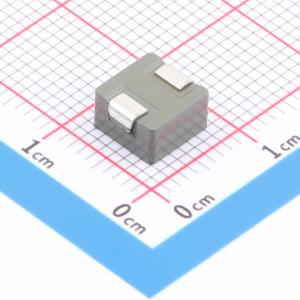

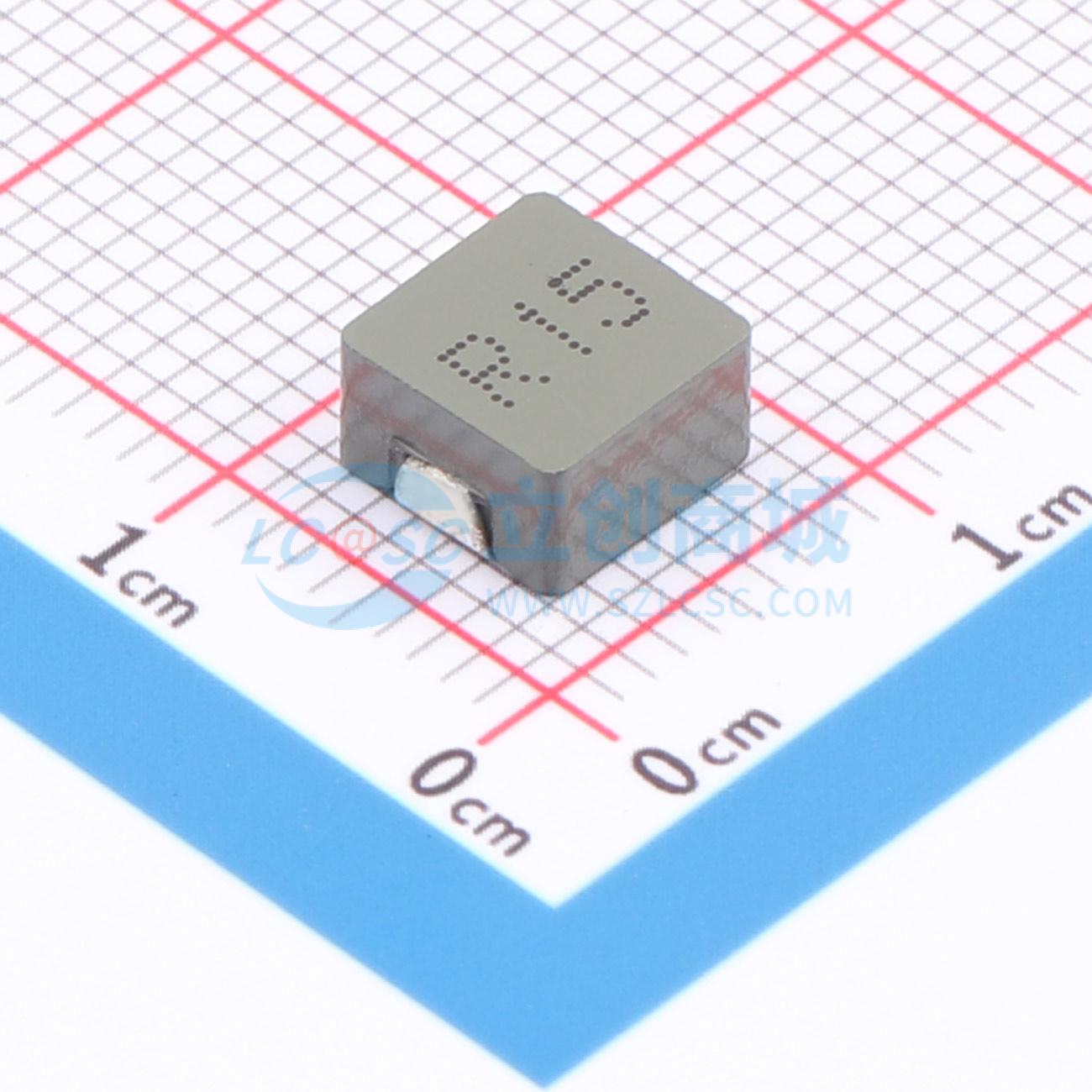

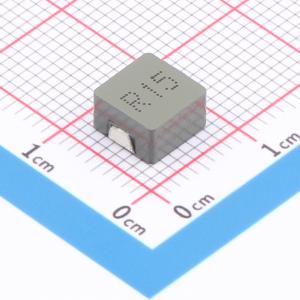

GDIM0640-R15S1MTF-0R66
0.15uH±20% 40.0A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 一体成型电感,0.15uH±20%,7.5*6.6*4.0mm,温升电流(IRMS):40A,饱和电流(ISAT):80A,DCR:0.66mΩ±10%
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM0640-R15S1MTF-0R66
- 商品编号
- C49237930
- 商品封装
- SMD,7.5x6.6mm
- 包装方式
- 编带
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 150nH | |
| 精度 | ±20% | |
| 额定电流 | 40A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 80A | |
| 直流电阻(DCR) | 0.66mΩ | |
| 类型 | 一体成型电感 |
