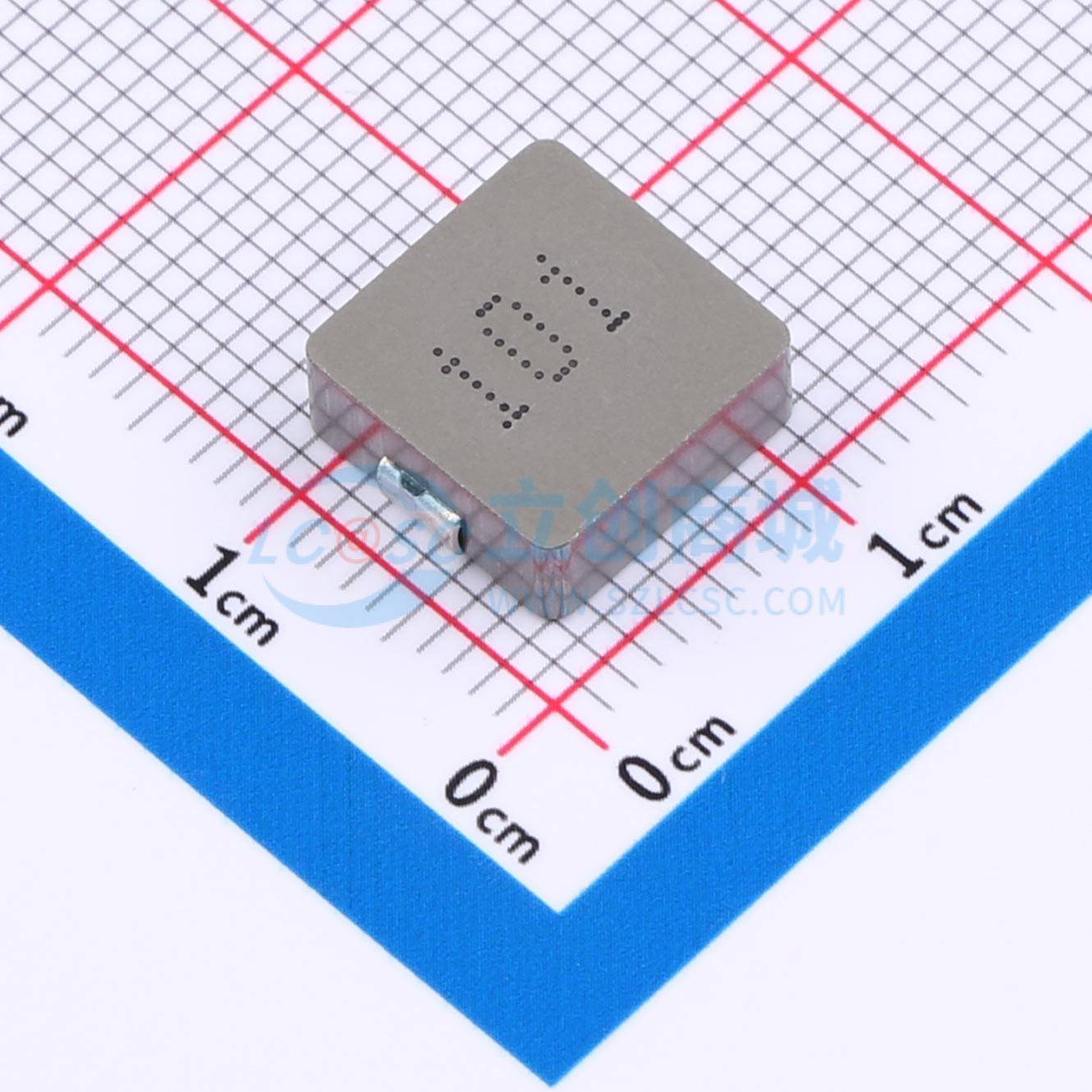

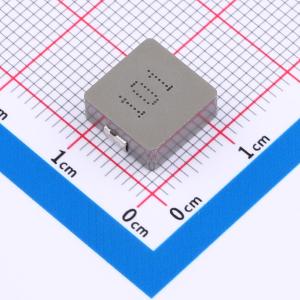

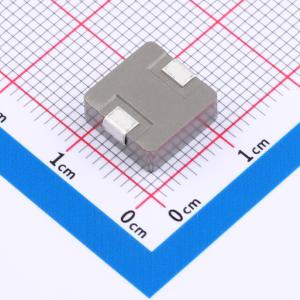

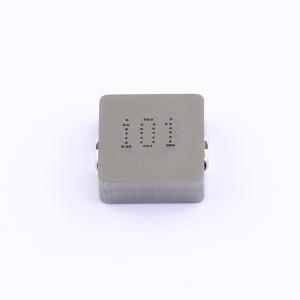

GDIM1040-101MTF
100.0uH±20% 1.8A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 一体成型电感,100.0uH±20%,11.5*10.0*4.0mm,温升电流(IRMS):1.8A,饱和电流(ISAT):2.8A,DCR:320mΩ Max
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM1040-101MTF
- 商品编号
- C49237936
- 商品封装
- SMD,11.5x10mm
- 包装方式
- 编带
- 商品毛重
- 2.730125克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 100uH | |
| 精度 | ±20% | |
| 额定电流 | 1.8A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 2.8A | |
| 直流电阻(DCR) | 320mΩ | |
| 类型 | 一体成型电感 |
