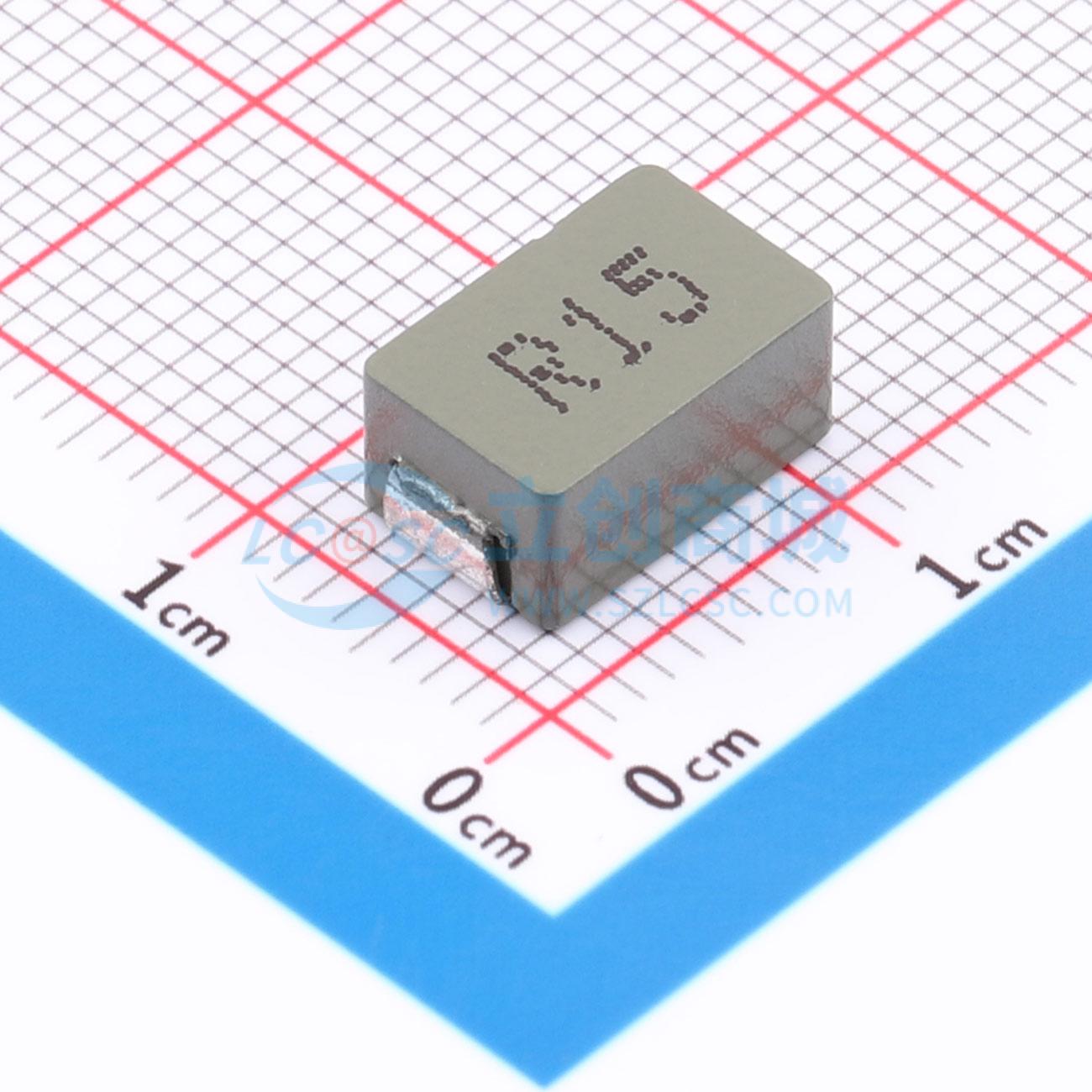

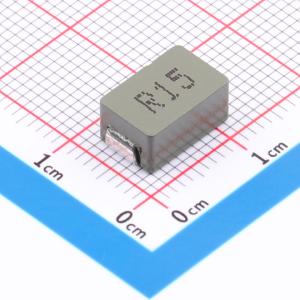

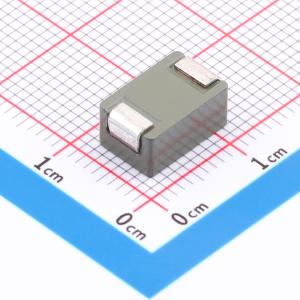

温馨提醒：图片仅供参考，商品以实物为准
GDIM106550-R15S1MTF-0R46
0.15uH±20% 60.0A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 一体成型电感,0.15uH±20%,10.5*6.5*5.0mm,温升电流(IRMS):60.0A,饱和电流(ISAT):100.0A,DCR:0.46mΩ±5%
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM106550-R15S1MTF-0R46
- 商品编号
- C49237952
- 商品封装
- SMD,10.5x6.5mm
- 包装方式
- 编带
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 150nH | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 60A | |
| 饱和电流(Isat) | 100A | |
| 直流电阻(DCR) | 0.46mΩ |
