- 引脚图
- 焊盘图
温馨提醒：图片仅供参考，商品以实物为准

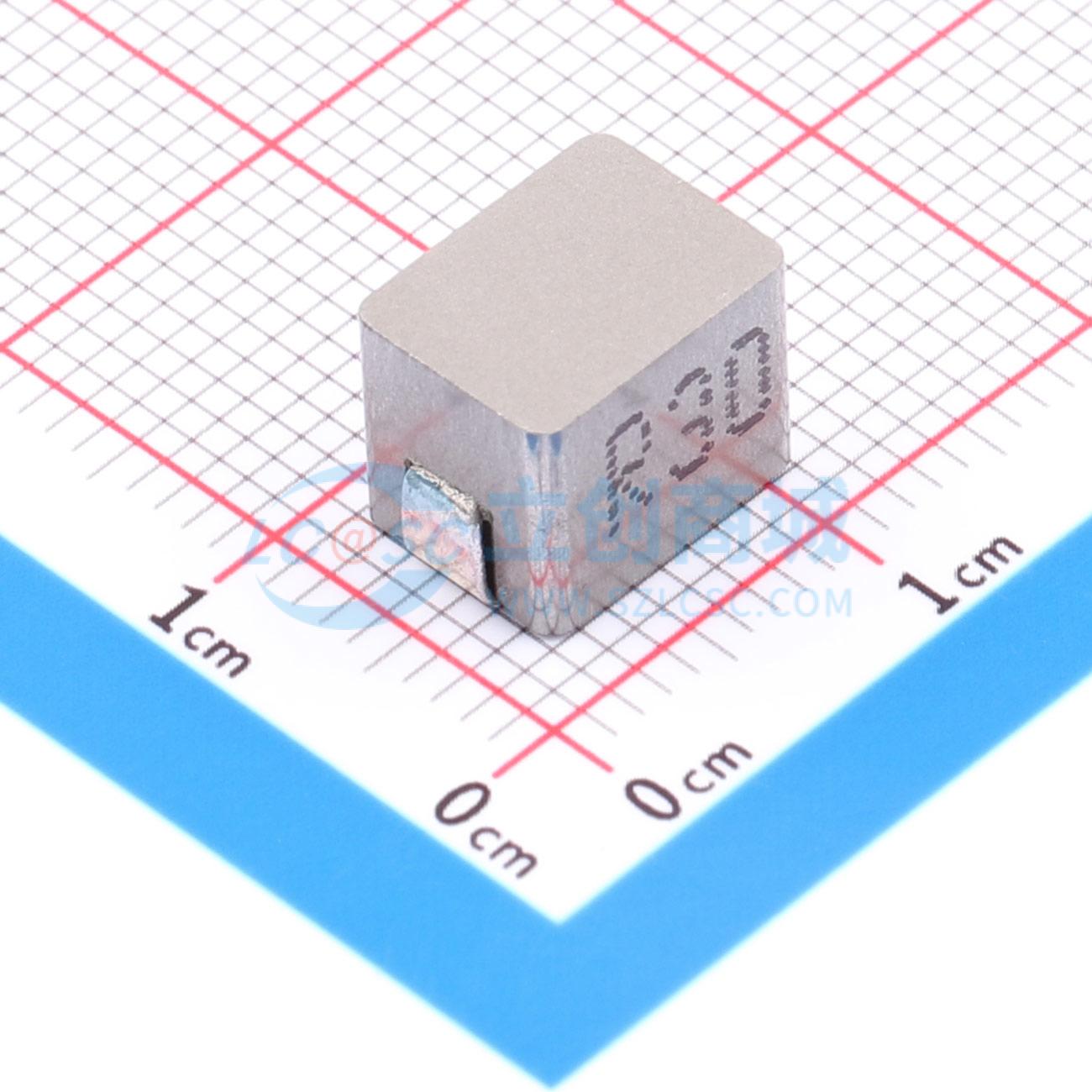

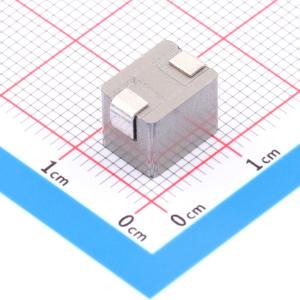

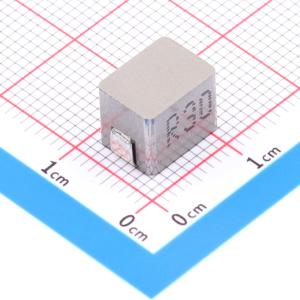

GDIM107075-R30MTF-0R82
0.30uH±20% 35.0A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 一体成型电感,0.30uH±20%,11.0*7.0*7.5mm,温升电流(IRMS):35.0A,饱和电流(ISAT):45.0A,DCR:0.82mΩ±10%
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM107075-R30MTF-0R82
- 商品编号
- C49237970
- 商品封装
- SMD,11x7mm
- 包装方式
- 编带
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 300nH | |
| 精度 | ±20% |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 35A | |
| 饱和电流(Isat) | 45A | |
| 直流电阻(DCR) | 0.82mΩ |
