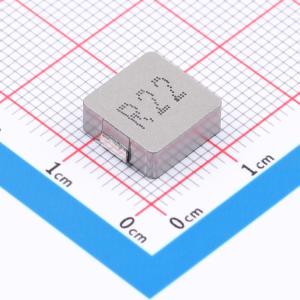

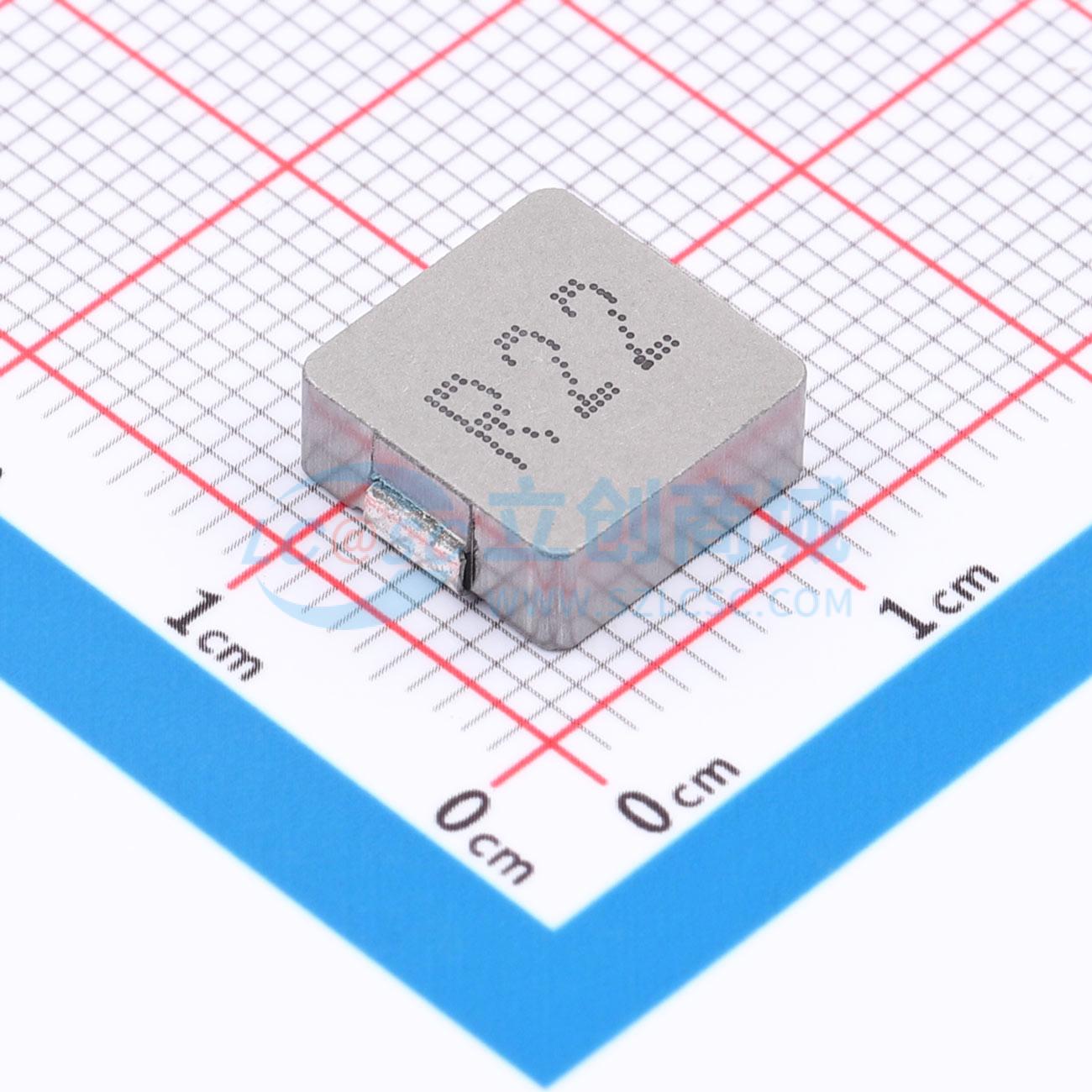

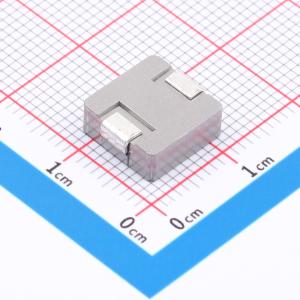

温馨提醒：图片仅供参考，商品以实物为准
GDIM1040-R22MTF-0R48
0.22uH±20% 38.0A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 一体成型电感,0.22uH±20%,11.5*10.0*4.0mm,温升电流(IRMS):38.0A,饱和电流(ISAT):50.0A,DCR:0.58mΩ Max
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM1040-R22MTF-0R48
- 商品编号
- C49237935
- 商品封装
- SMD,11.5x10mm
- 包装方式
- 编带
- 商品毛重
- 1克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 220nH | |
| 精度 | ±20% | |
| 额定电流 | 38A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 50A | |
| 直流电阻(DCR) | 0.58mΩ | |
| 类型 | 一体成型电感 |
