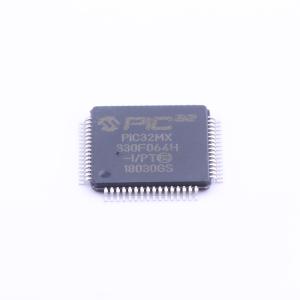

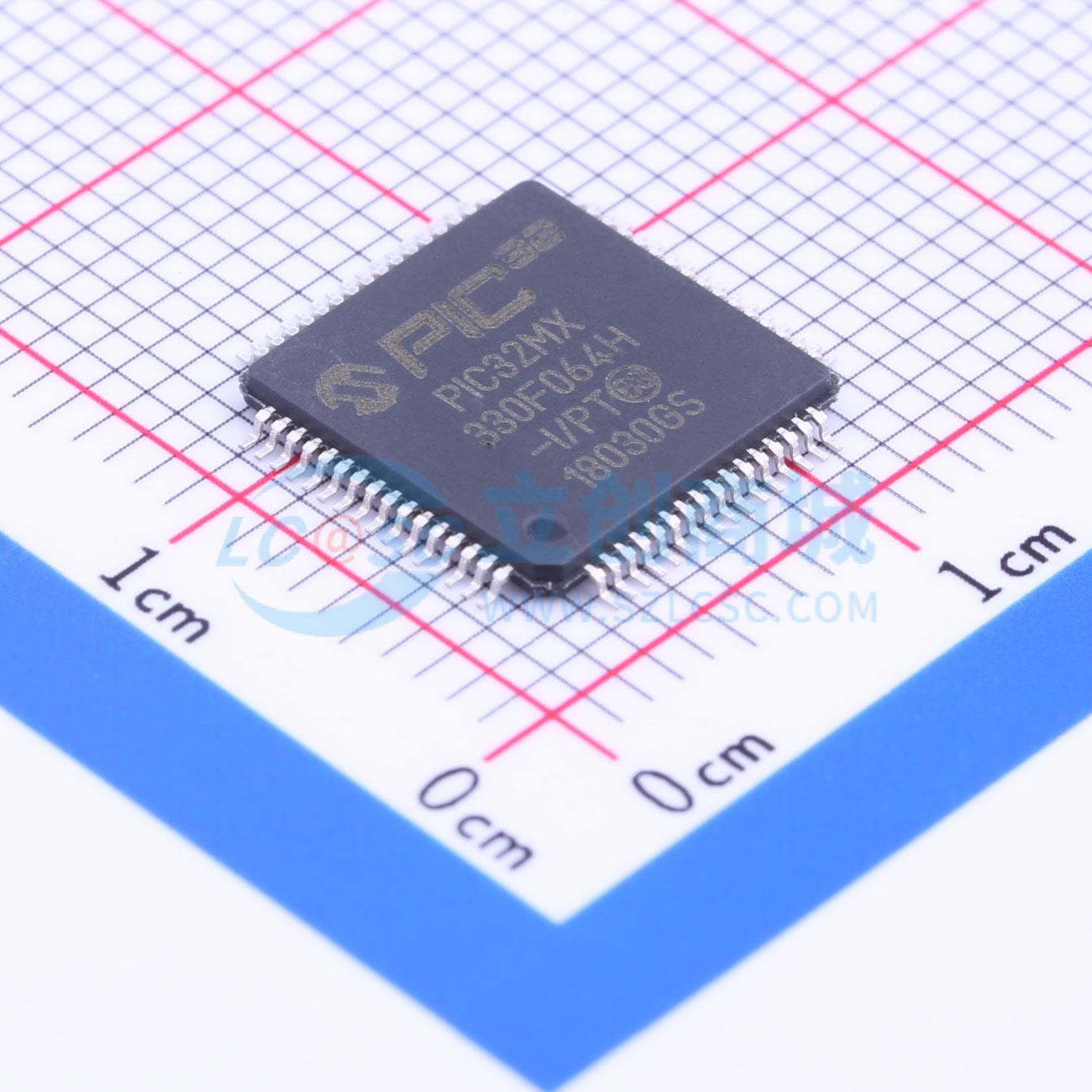

Name: MICROCHIP(美国微芯) PIC32MX330F064H-I/PT
Brand: MICROCHIP(美国微芯)
SKU: C220165
Price: 42.75 CNY
Availability: InStock

工作条件：2.3V to 3.6V；-40°C to +105°C (DC to 80 MHz)；-40°C to +85°C (DC to 100 MHz)；0°C to +70°C (DC to 120 MHz)
核心：120 MHz/150 DMIPS MIPS32 M4K；MIPS16e mode for up to 40% smaller code size；Code-efficient (C and Assembly) architecture；Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply
时钟管理：0.9% internal oscillator；Programmable PLLs and oscillator clock sources；Fail-Safe Clock Monitor (FSCM)；Independent Watchdog Timer；Fast wake-up and start-up
电源管理：Low-power management modes (Sleep and Idle)；Integrated Power-on Reset, Brown-out Reset, and High Voltage Detect；0.5 mA/MHz dynamic current (typical)；50 μA IPD current (typical)
音频/图形/触摸人机界面特性：External graphics interface with up to 34 PMP pins；Audio data communication: I²S, LJ, RJ, USB；Audio data control interface: SPI and I²C；Audio data master clock: Generation of fractional clock frequencies；Can be synchronized with USB clock；Can be tuned in run-time；Charge Time Measurement Unit (CTMU): Supports mTouch capacitive touch sensing；Provides high-resolution time measurement (1 ns)
高级模拟特性：ADC Module: 10-bit 1 Msps rate with one Sample and Hold (S&H)；Up to 28 analog inputs；Can operate during Sleep mode；Flexible and independent ADC trigger sources；On-chip temperature measurement capability；Comparators: Two dual-input Comparator modules；Programmable references with 32 voltage points
定时器/输出比较/输入捕获：Five General Purpose Timers: Five 16-bit and up to two 32-bit Timers/Counters；Five Output Compare (OC) modules；Five Input Capture (IC) modules；Peripheral Pin Select (PPS) to allow function remap；Real-Time Clock and Calendar (RTCC) module
通信接口：USB 2.0-compliant Full-speed OTG controller；Up to five UART modules (20 Mbps): LIN 2.1 protocols and PD support；Two 4-wire SPI modules (25 Mbps)；Two I²C modules (up to 1 Mbaud) with SMBus support；PPS to allow function remap；Parallel Master Port (PMP)
直接内存访问 (DMA)：Four channels of hardware DMA with automatic data size detection；32-bit Programmable Cyclic Redundancy Check (CRC)；Two additional channels dedicated to USB
输入/输出：15 mA or 12 mA source/sink for standard VOH/VOL and up to 22 mA for non-standard VOH1；5V-tolerant pins；Selectable open drain, pull-ups, and pull-downs；External interrupts on all I/O pins
AEC-Q100 REVH (Grade 2 -40°C to +105°C_J) planned；Class B Safety Library, IEC 60730
调试器开发支持：In-circuit and in-application programming；4-wire MIPS Enhanced JTAG interface；Unlimited program and six complex data breakpoints；IEEE 1149.2-compatible (JTAG) boundary scan

	属性	参数值
	商品目录	单片机(MCU/MPU/SOC)
	CPU内核	MIPS32 M4K
	CPU最大主频	100MHz
	CPU位数	32 Bit
	程序存储容量	64KB
	程序存储器类型	FLASH
	RAM容量	16KB

	属性	参数值
	EEPROM容量	-
	I/O数量	53
	ADC(位数)	10bit
	振荡器类型	内置
	工作电压	2.3V~3.6V
	工作温度	-40℃~+85℃
