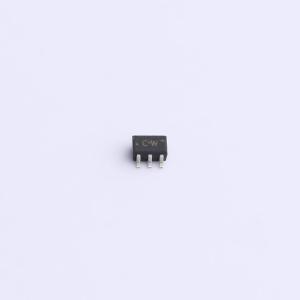

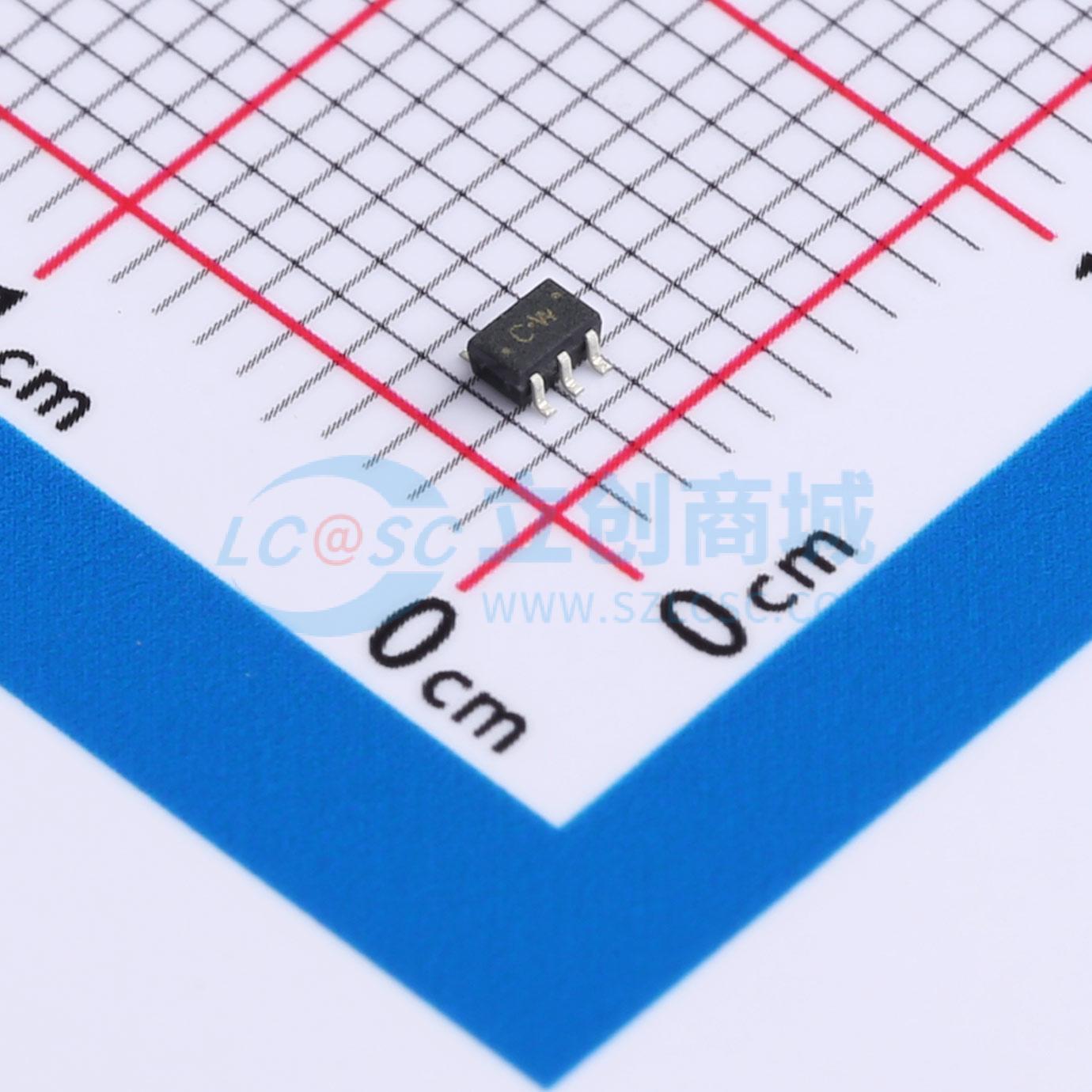

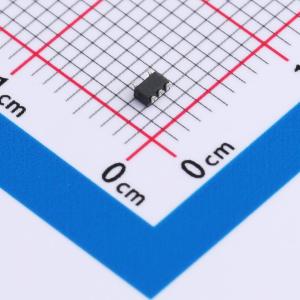

DF5A6.8CFU(TE85L,F
ESD 5V截止
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 该产品仅用于静电放电（ESD）保护，不用于其他用途，包括但不限于恒压二极管应用。在超紧凑型封装上安装四个器件，可减少零件数量和安装成本。低端子电容（阴极和阳极之间）：Cτ = 23 pF（典型值）
- 品牌名称
- TOSHIBA(东芝)
- 商品型号
- DF5A6.8CFU(TE85L,F
- 商品编号
- C1975493
- 商品封装
- SOT-353
- 包装方式
- 编带
- 商品毛重
- 0.027克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 静电和浪涌保护(TVS/ESD) | |
| 极性 | 单向 | |
| 反向截止电压(Vrwm) | 5V | |
| 击穿电压 | 6.8V | |
| 反向电流(Ir) | 500nA |
| 属性 | 参数值 | |
|---|---|---|
| 通道数 | 四路 | |
| 防护等级 | IEC 61000-4-2 | |
| 类型 | ESD | |
| Cj-结电容 | 23pF |
商品概述
- This product is only used for electrostatic discharge (ESD) protection and not for any other purposes, including but not limited to constant-voltage diode applications.
- Four devices are mounted on an ultra-compact package, which can reduce the number of parts and installation costs.
- Low terminal capacitance (between the cathode and anode), CT = 23 pF (typ.)
商品特性
- Four devices are mounted on an ultra-compact package, which can reduce the number of parts and installation costs.
- Low terminal capacitance (between the cathode and anode): CT = 23 pF (typ.)
