温馨提醒：图片仅供参考，商品以实物为准

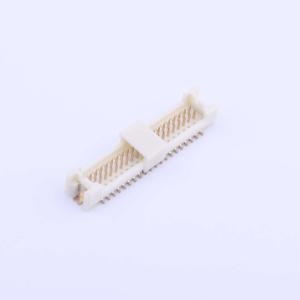

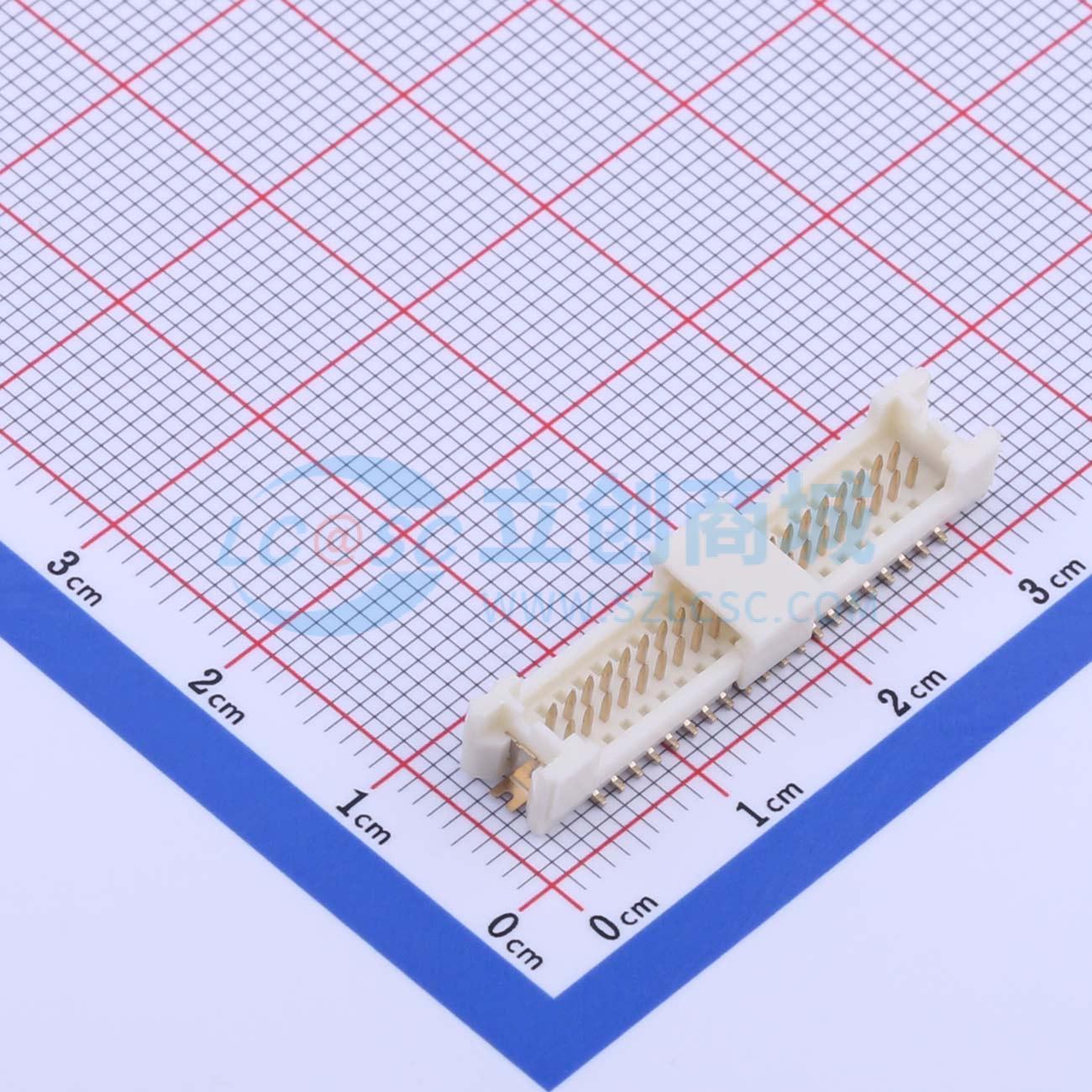

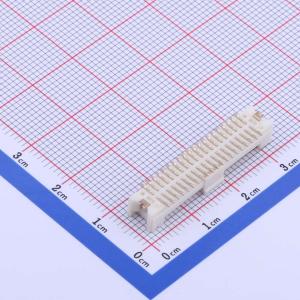

X9812WVS-2x20-6TV01
2x20P 间距:1.25mm 立贴
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 带扣 配套:针座X9812WVS-2x20-9TV01 胶壳X9812H-2x20-N0
- 商品型号
- X9812WVS-2x20-6TV01
- 商品编号
- C883221
- 商品封装
- SMD,P=1.25mm
- 包装方式
- 编带
- 商品毛重
- 1.34克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 2x20P | |
| 间距 | 1.25mm | |
| 安装方式 | 立贴 | |
| 参考系列 | - | |
| 总PIN数 | 40P | |
| 排数 | 2 | |
| 每排PIN数 | 20 |
| 属性 | 参数值 | |
|---|---|---|
| 行距 | 1.25mm | |
| 额定电流 | 1A | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+125℃ | |
| 额定电压 | 150V | |
| 塑料材质 | PA6T | |
| 阻燃等级 | UL94V-0 |
