温馨提醒：图片仅供参考，商品以实物为准

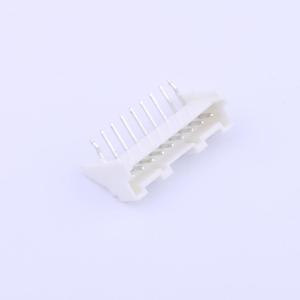

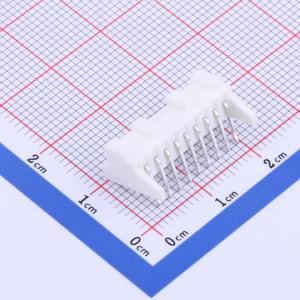

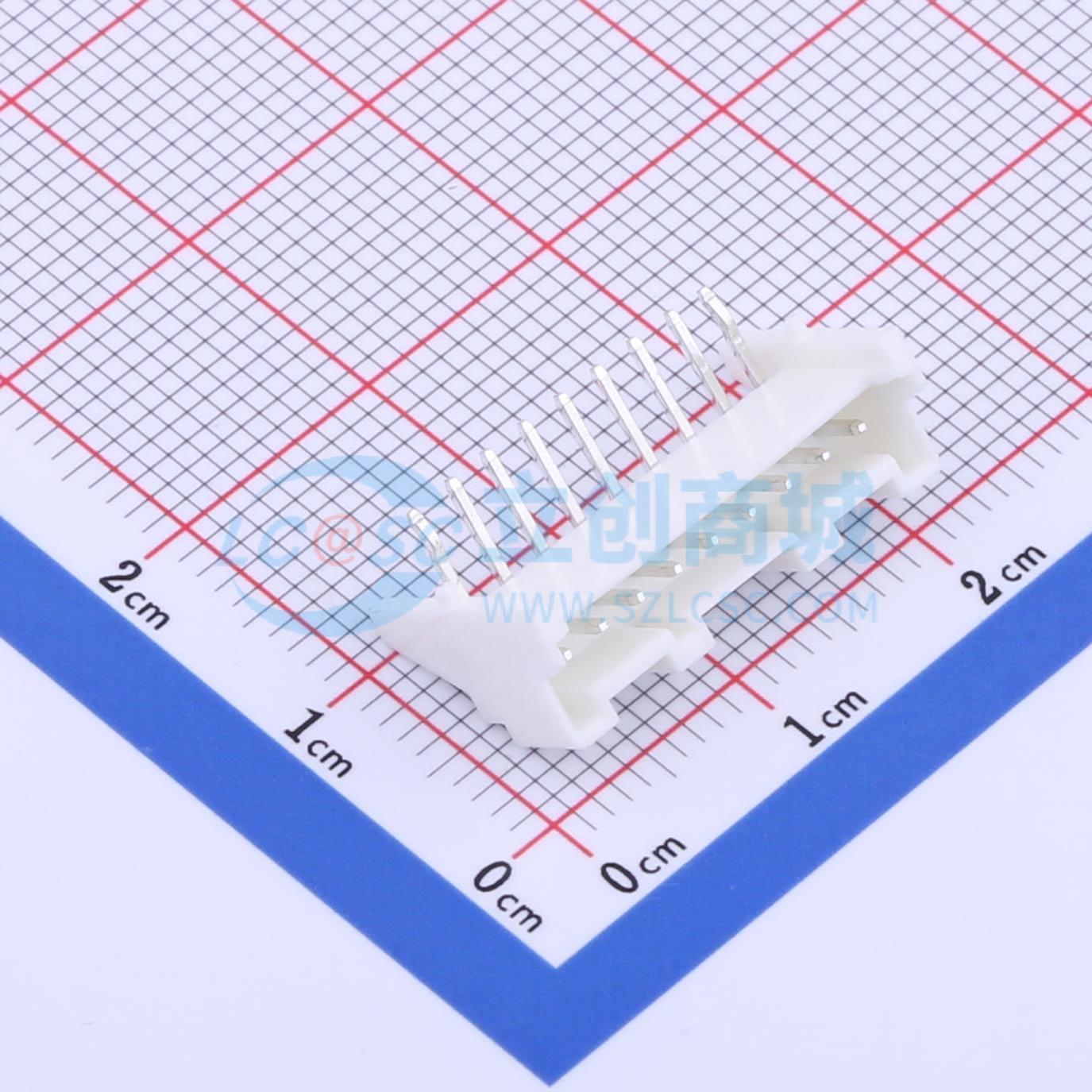

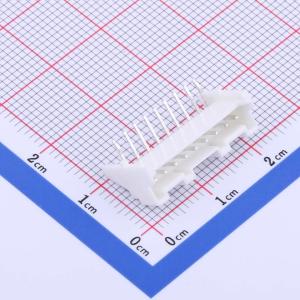

X2000WR-09A-PTSN
1x9P 间距:2mm 弯插
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 带扣 K脚 配套:针座X2000WR-09A-PTSN 胶壳X2000H-09-N0 端子X2000T-PSN
- 商品型号
- X2000WR-09A-PTSN
- 商品编号
- C883272
- 商品封装
- 弯插,P=2mm
- 包装方式
- 袋装
- 商品毛重
- 0.724克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x9P | |
| 间距 | 2mm | |
| 安装方式 | 弯插 | |
| 参考系列 | - | |
| 总PIN数 | 9P | |
| 排数 | 1 | |
| 每排PIN数 | 9 | |
| 行距 | - |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 250V | |
| 塑料材质 | PBT | |
| 阻燃等级 | UL94V-0 | |
| 颜色 | 白色 |
