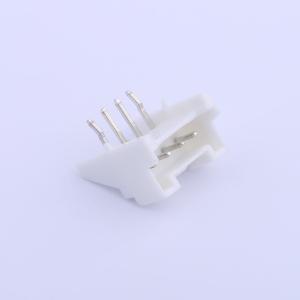

X2000WR-04A-PTSN
1x4P 间距:2mm 弯插
- 描述
- 带扣 K脚 配套:针座X2000WR-04A-PTSN 胶壳X2000H-04-N0 端子X2000T-PSN
- 商品型号
- X2000WR-04A-PTSN
- 商品编号
- C883277
- 商品封装
- 弯插,P=2mm
- 包装方式
- 袋装
- 商品毛重
- 0.385克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x4P | |
| 间距 | 2mm | |
| 安装方式 | 弯插 | |
| 参考系列 | - | |
| 总PIN数 | 4P | |
| 排数 | 1 | |
| 每排PIN数 | 4 | |
| 行距 | - |
| 属性 | 参数值 | |
|---|---|---|
| 额定电流 | 3A | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -25℃~+85℃ | |
| 额定电压 | 250V | |
| 塑料材质 | PBT | |
| 阻燃等级 | UL94V-0 | |
| X轴-板上底边长度(间距线) | 10mm |
