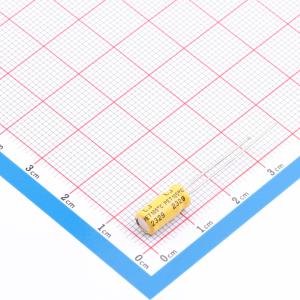

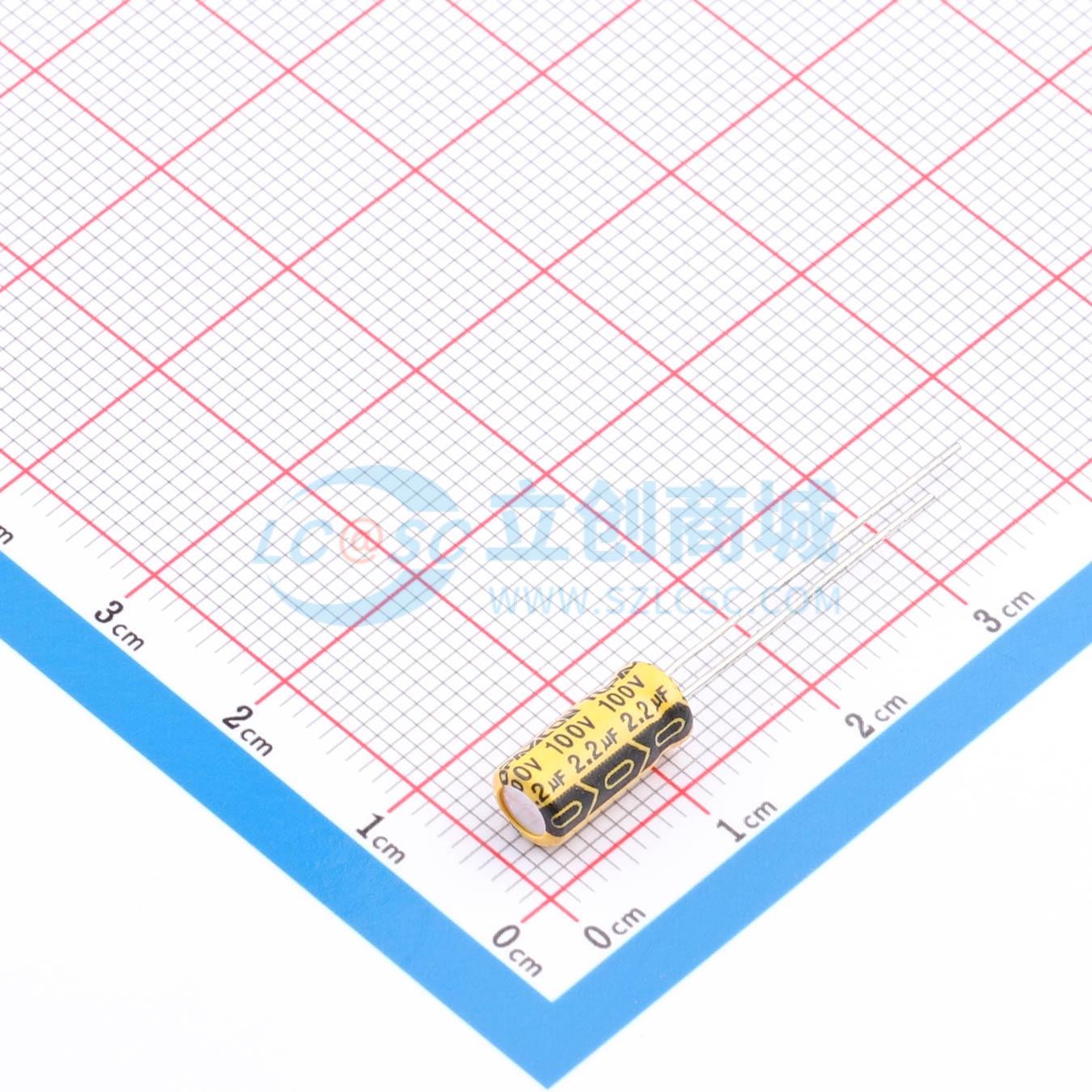

温馨提醒：图片仅供参考，商品以实物为准
ELJ2A2R2M051100Y
2.2uF ±20% 100V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 2.2uF/100V/5x11/105℃/±20%/PET/6000小时
- 品牌名称
- TOPAZCON(黄宝石)
- 商品型号
- ELJ2A2R2M051100Y
- 商品编号
- C55265411
- 商品封装
- 插件,D5xL11mm
- 包装方式
- 袋装
- 商品毛重
- 0.3968克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 2.2uF | |
| 精度 | ±20% | |
| 额定电压 | 100V | |
| 纹波电流 | 70mA@100kHz | |
| 等效串联电阻(ESR) | 4.5Ω@100KHz |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 2mm | |
| 电容体直径 | 5mm | |
| 电容体长度 | 11mm | |
| 工作寿命 | 6000hrs@105℃ | |
| 工作温度 | -40℃~+105℃ |
