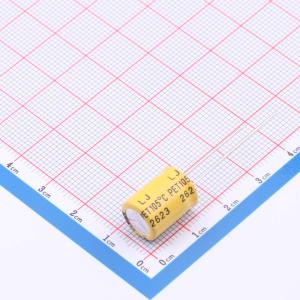

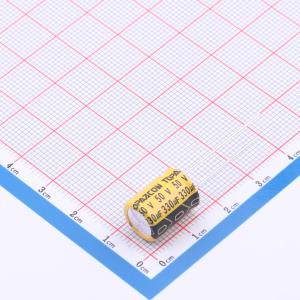

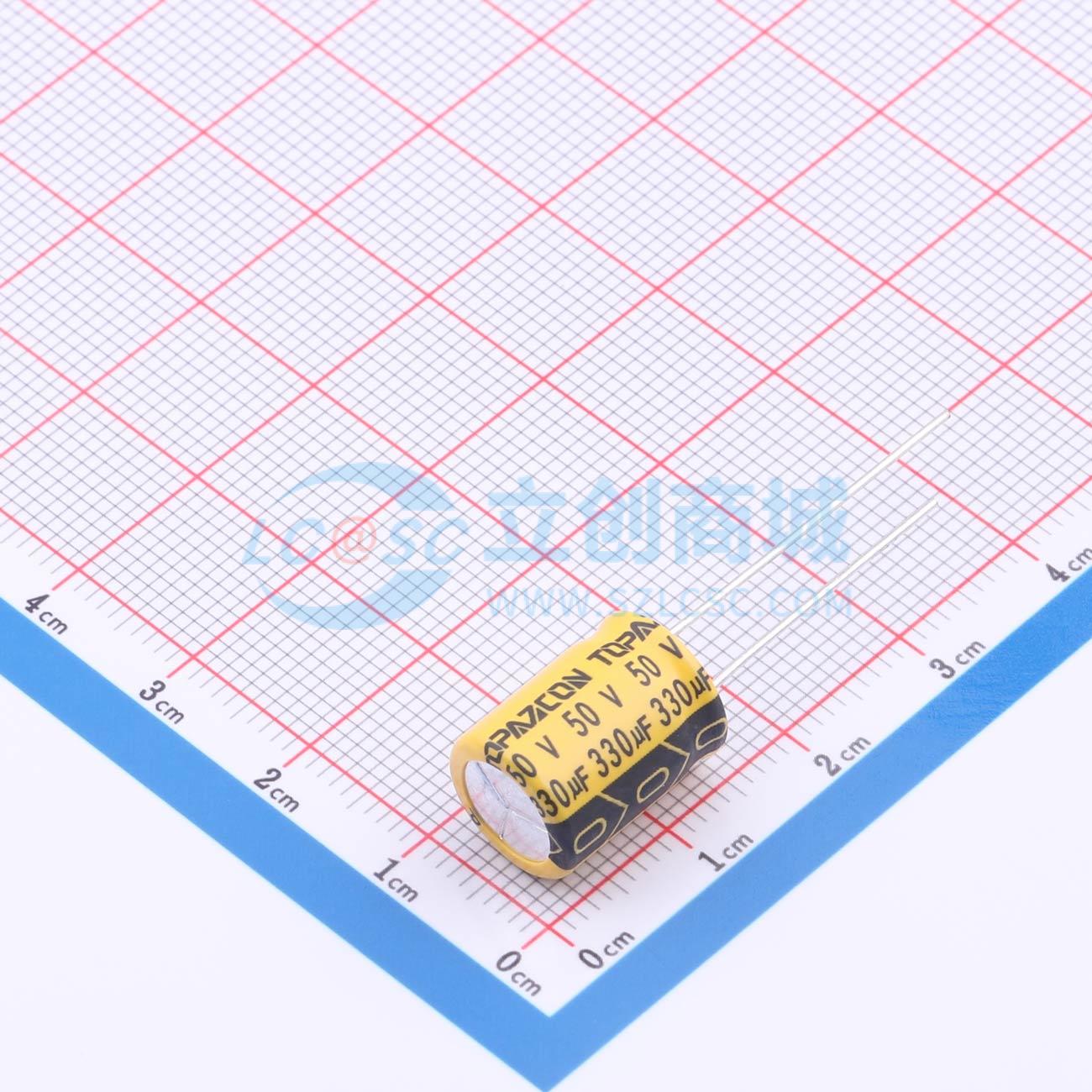

ELJ1H331M101400Y
330uF ±20% 50V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 330uF/50V/10x14/105℃/±20%/PET/限高14mmMax
- 品牌名称
- TOPAZCON(黄宝石)
- 商品型号
- ELJ1H331M101400Y
- 商品编号
- C55265420
- 商品封装
- 插件,D10xL14mm
- 包装方式
- 袋装
- 商品毛重
- 1.888333克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 直插铝电解电容 | |
| 容值 | 330uF | |
| 精度 | ±20% | |
| 额定电压 | 50V | |
| 纹波电流 | 1.335A@100kHz | |
| 等效串联电阻(ESR) | 200mΩ@100KHz |
| 属性 | 参数值 | |
|---|---|---|
| 脚间距 | 5mm | |
| 电容体直径 | 10mm | |
| 电容体长度 | 14mm | |
| 工作寿命 | 5000hrs@105℃ | |
| 工作温度 | -40℃~+105℃ |
