温馨提醒：图片仅供参考，商品以实物为准

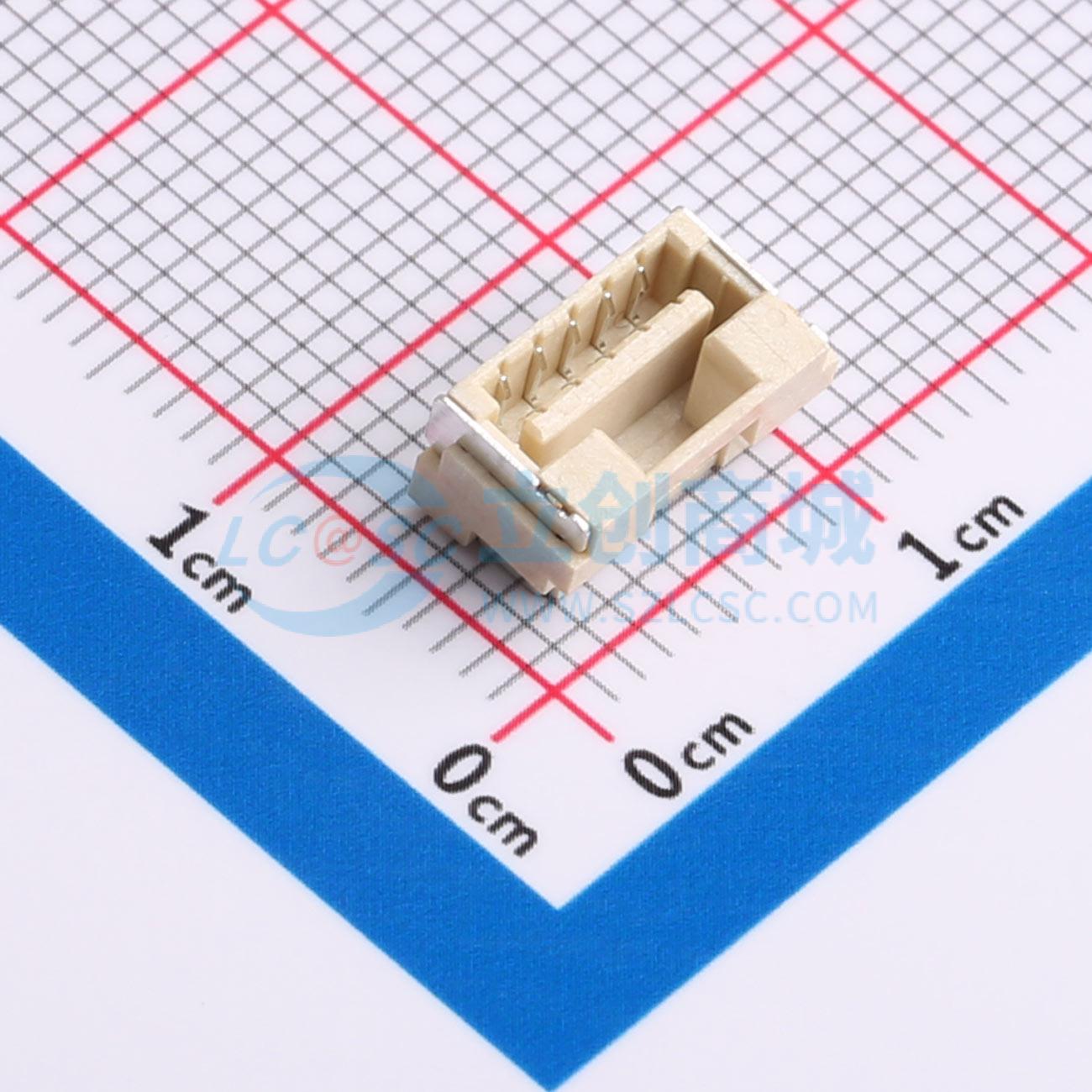

X1254WRS-05-LPSW
1x5P 间距:1.25mm 卧贴
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 配套:针座X1254WRS-05-LPSW 胶壳X1254H-05-N0 端子X1254T-PSN
- 商品型号
- X1254WRS-05-LPSW
- 商品编号
- C5147175
- 商品封装
- SMD,P=1.25mm,卧贴
- 包装方式
- 编带
- 商品毛重
- 0.649克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 线对板针座 | |
| 插针结构 | 1x5P | |
| 间距 | 1.25mm | |
| 安装方式 | 卧贴 | |
| 排数 | 1 | |
| 每排PIN数 | 5 | |
| 额定电流 | 1A |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 黄铜 | |
| 触头镀层 | 锡 | |
| 工作温度 | -40℃~+125℃ | |
| 额定电压 | 50V | |
| 塑料材质 | LCP | |
| 阻燃等级 | UL94V-0 | |
| X轴-板上底边长度(间距线) | 9.6mm |
