温馨提醒：图片仅供参考，商品以实物为准

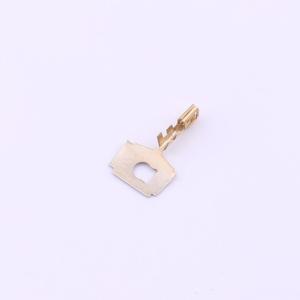

X1004T-PV01
额定电压50V AC/DC，额定电流1A AC/DC
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 配套:胶壳X1004H-XXL-N0 X1004H-XX-N0(XX为PIN数) 端子X1004T-PV01
- 商品型号
- X1004T-PV01
- 商品编号
- C5147183
- 包装方式
- 编带
- 商品毛重
- 0.02克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 胶壳端子 | |
| 线规 - AWG | 28~32 | |
| 允许绝缘外径 (OD) | 0.8mm |
| 属性 | 参数值 | |
|---|---|---|
| 触头材质 | 磷铜 | |
| 触头镀层 | 金 | |
| 额定电压 | 50V |
