温馨提醒：图片仅供参考，商品以实物为准

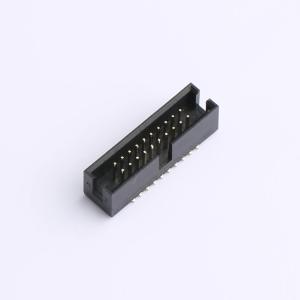

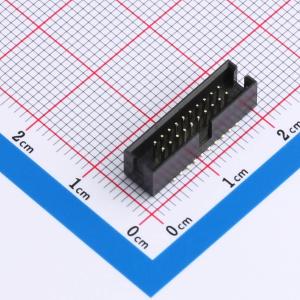

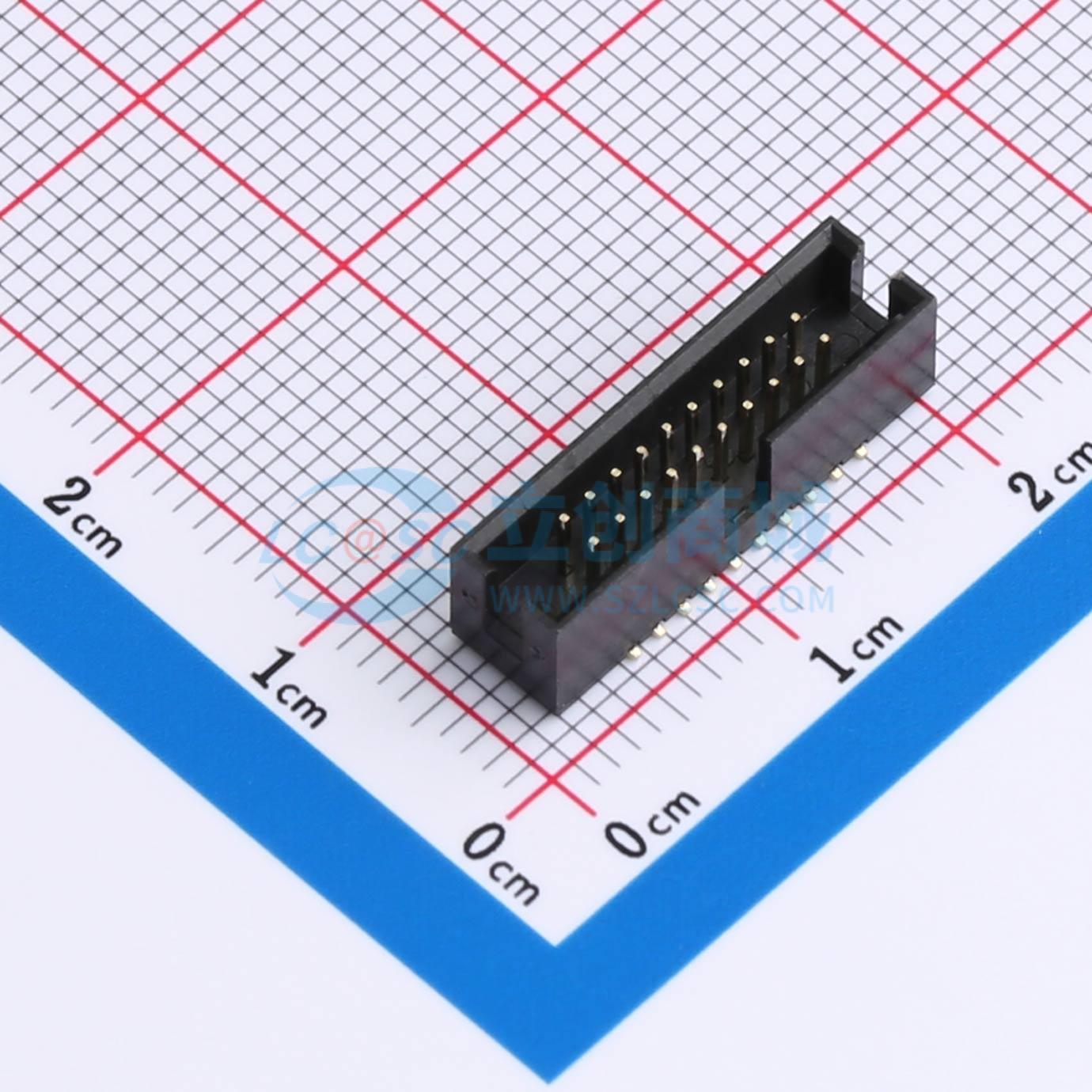

X1270WVS-2x10B-9TV01
1.27mm 2x10P 排数:2 每排P数:10
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 简牛,立贴全金两侧有缺 配套:简牛X1270WVS-2x10B-6TV01 IDC X1270H2-2x10-PTV01
- 商品型号
- X1270WVS-2x10B-9TV01
- 商品编号
- C5147196
- 商品封装
- SMD,P=1.27mm
- 包装方式
- 托盘
- 商品毛重
- 0.838636克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | IDC刺破式连接器(牛角/简牛) | |
| 连接器类型 | 简牛座 | |
| 间距 | 1.27mm | |
| 结构 | 2x10P | |
| 额定电流 | 1A | |
| 额定电压 | 250V | |
| 安装方式 | 立贴 |
| 属性 | 参数值 | |
|---|---|---|
| 行距 | 1.27mm | |
| 排数 | 2 | |
| 每排PIN数 | 10 | |
| 触头材质 | 黄铜 | |
| 触头镀层 | 金 | |
| 工作温度 | -40℃~+125℃ |
