温馨提醒：图片仅供参考，商品以实物为准

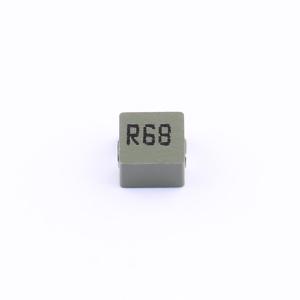

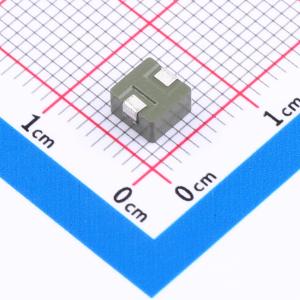

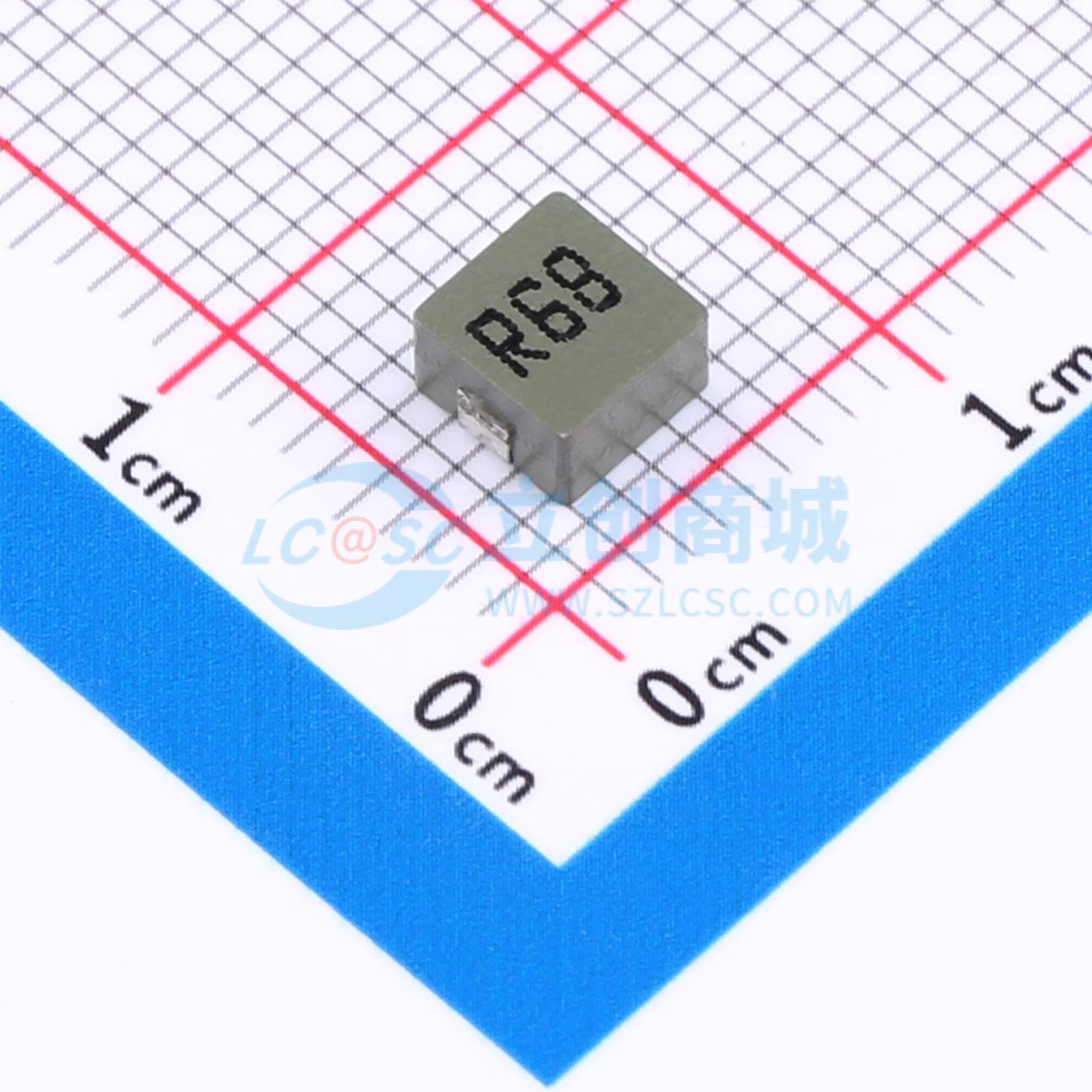

GDIM524730-R68S1MTF
0.68uH±20% 8.5A
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 一体成型电感,0.68uH±20%,5.2*4.7*3.0mm,温升电流(IRMS):8.5A,饱和电流(ISAT):14A,DCR:12mΩ Max
- 品牌名称
- GUDIAN(固电)
- 商品型号
- GDIM524730-R68S1MTF
- 商品编号
- C49237914
- 商品封装
- SMD,5.2x4.7mm
- 包装方式
- 编带
- 商品毛重
- 0.5429克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 功率电感 | |
| 电感值 | 680nH | |
| 精度 | ±20% | |
| 额定电流 | 8.5A |
| 属性 | 参数值 | |
|---|---|---|
| 饱和电流(Isat) | 14A | |
| 直流电阻(DCR) | 12mΩ | |
| 类型 | 一体成型电感 |
