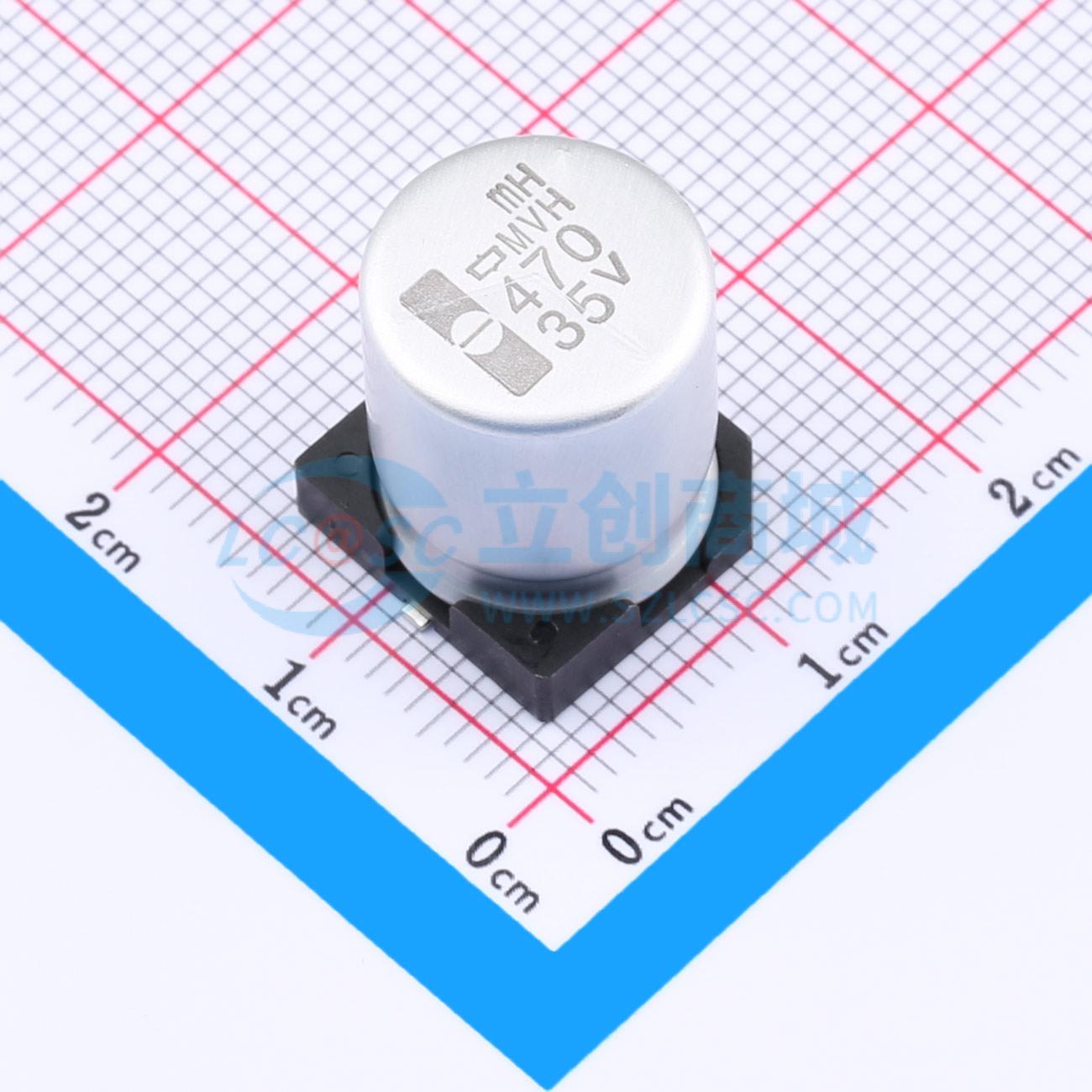

EMVH350ARA471MKG5S
470uF ±20% 35V
SMT扩展库SMT补贴嘉立创PCB免费打样
- 描述
- 特性：低等效串联电阻(ESR)。高纹波电流耐受性:在125°C下1000至5000小时。耐溶剂类型(63至450Vdc除外)。抗振结构。符合RoHS标准
- 品牌名称
- NCC(日本贵弥功)
- 商品型号
- EMVH350ARA471MKG5S
- 商品编号
- C2163069
- 商品封装
- SMD,D12.5xL16mm
- 包装方式
- 编带
- 商品毛重
- 4.71克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片型铝电解电容 | |
| 容值 | 470uF | |
| 精度 | ±20% | |
| 额定电压 | 35V | |
| 纹波电流 | 900mA@100kHz |
| 属性 | 参数值 | |
|---|---|---|
| 等效串联电阻(ESR) | 110mΩ@100kHz | |
| 电容体直径 | 12.5mm | |
| 电容体长度 | 16mm | |
| 工作寿命 | 5000hrs@125℃ | |
| 工作温度 | -40℃~+125℃ |
