温馨提醒：图片仅供参考，商品以实物为准

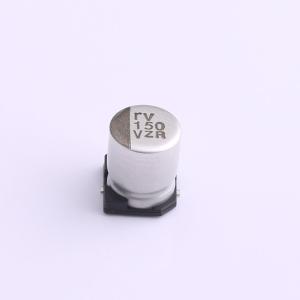

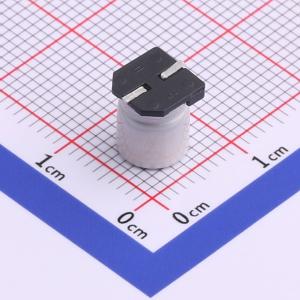

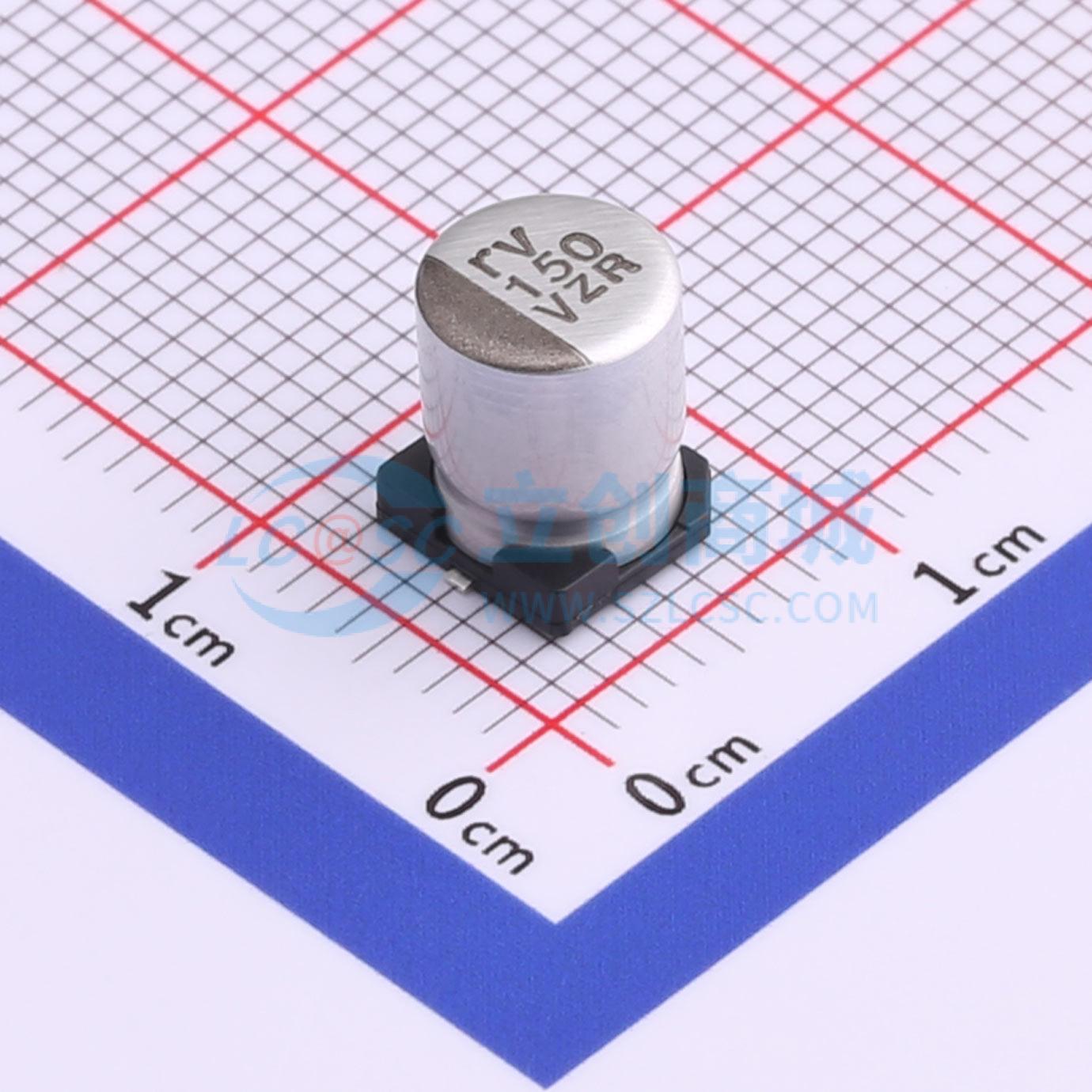

EMZR350ADA151MF80G
150uF ±20% 35V
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 小型化且降低等效串联电阻(ESR)。额定电压范围:6.3至50V。标称电容范围:150至2200μF。耐溶剂型。耐振动结构。符合RoHS标准
- 品牌名称
- NCC(日本贵弥功)
- 商品型号
- EMZR350ADA151MF80G
- 商品编号
- C2163161
- 商品封装
- SMD,D6.3xL7.7mm
- 包装方式
- 编带
- 商品毛重
- 1.02克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 贴片型铝电解电容 | |
| 容值 | 150uF | |
| 精度 | ±20% | |
| 额定电压 | 35V | |
| 纹波电流 | 600mA@100kHz |
| 属性 | 参数值 | |
|---|---|---|
| 等效串联电阻(ESR) | 160mΩ@100kHz | |
| 电容体直径 | - | |
| 电容体长度 | - | |
| 工作寿命 | 2000hrs@105℃ | |
| 工作温度 | -55℃~+105℃ |
