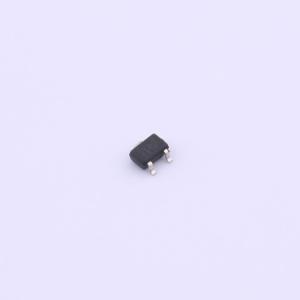

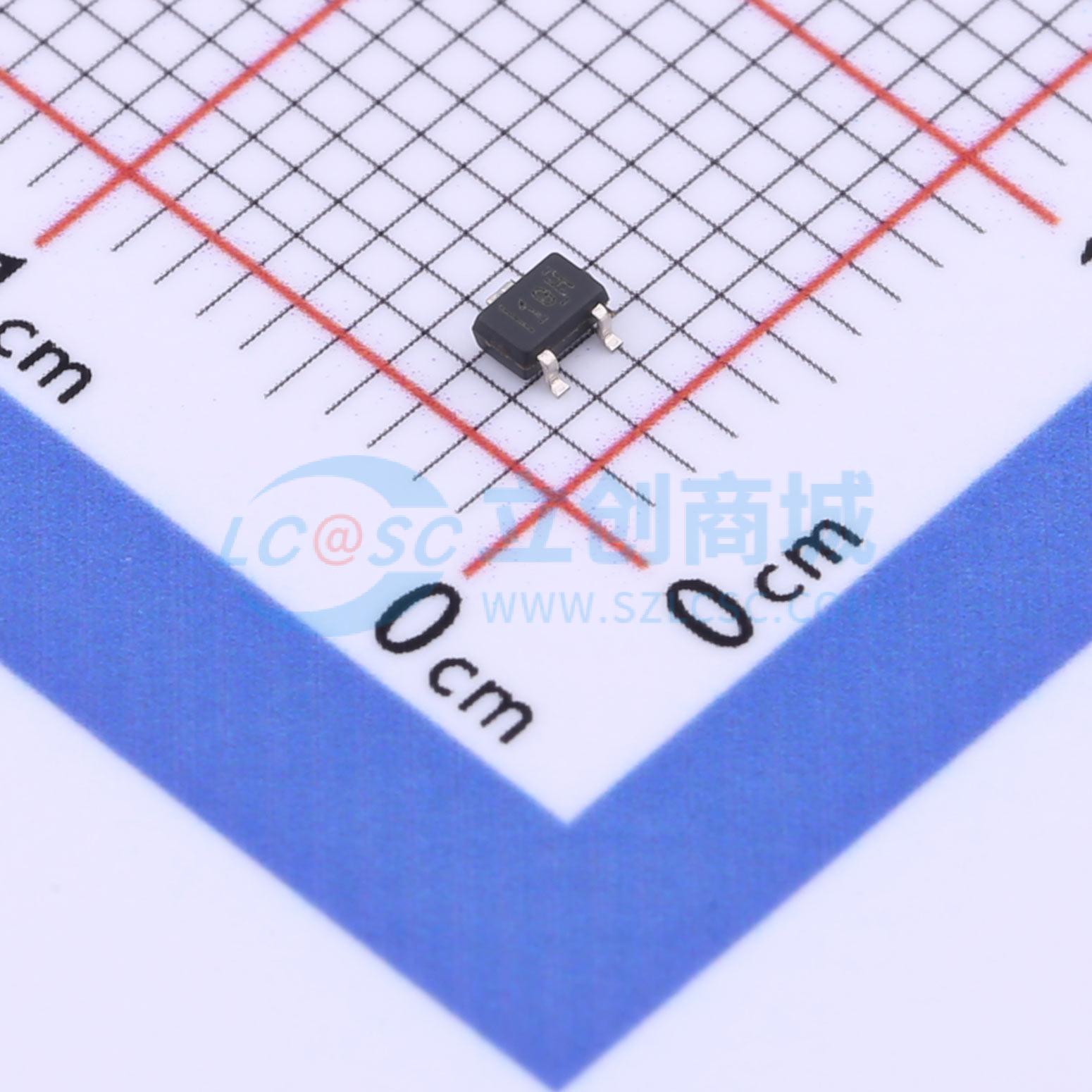

TPD2E2U06DCKR

双向TVS 5.5V截止峰值浪涌电流：5.5A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: TPD2E2U06 适用于 USB 2.0 且具有 5.5A 8/20us 浪涌等级的双通道 1.5pF、5.5V、±25kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: TPD2E2U06DCKR
商品编号: C1855726
商品封装: SC-70-3
包装方式: 编带
商品毛重: 0.02克(g)

商品参数

商品概述

The TPD2E2U06 is a dual-channel low-capacitance transient voltage suppressor (TVS) diode electrostatic discharge (ESD) protection device. This device provides ±25kV contact ESD protection and ±30kV air-gap ESD protection compliant with the IEC 61000 - 4 - 2 standard. The 1.5pF line capacitance of the TPD2E2U06 makes this device suitable for digital input Class-D audio amplifiers in a wide range of applications. Typical application interfaces are USB2.0, low-voltage differential signaling (LVDS) interfaces, and I2C.

商品特性

IEC61000 - 4 - 2 Level 4
- ±25kV (Contact discharge)
- ±30kV (Air-gap discharge)
IEC61000 - 4 - 5 Surge protection
- 5.5A peak pulse current (8/20μs pulse)
IO capacitance value of 1.5pF (Typical)
DC breakdown voltage of 6.5V (Minimum)
Ultra-low leakage current of 10nA (Maximum)
Low ESD clamping voltage
Industrial temperature range: -40°C to +125°C
Small DRL and DCK packages for easy routing

应用领域

End equipment
- Set-top boxes
- Notebooks
- Servers
- Electronic point of sale (EPOS)
Interfaces
- USB2.0
- Ethernet
- MIPI bus
- LVDS
- I2C

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	双向
	反向截止电压(Vrwm)	5.5V
	钳位电压	12.4V
	峰值脉冲电流(Ipp)	5.5A@8/20us
	峰值脉冲功率(Ppp)	75W@8/20us
	击穿电压	6.5V

	属性	参数值
	反向电流(Ir)	10nA
	通道数	双路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-5；IEC 61000-4-2
	类型	TVS
	Cj-结电容	1.5pF
