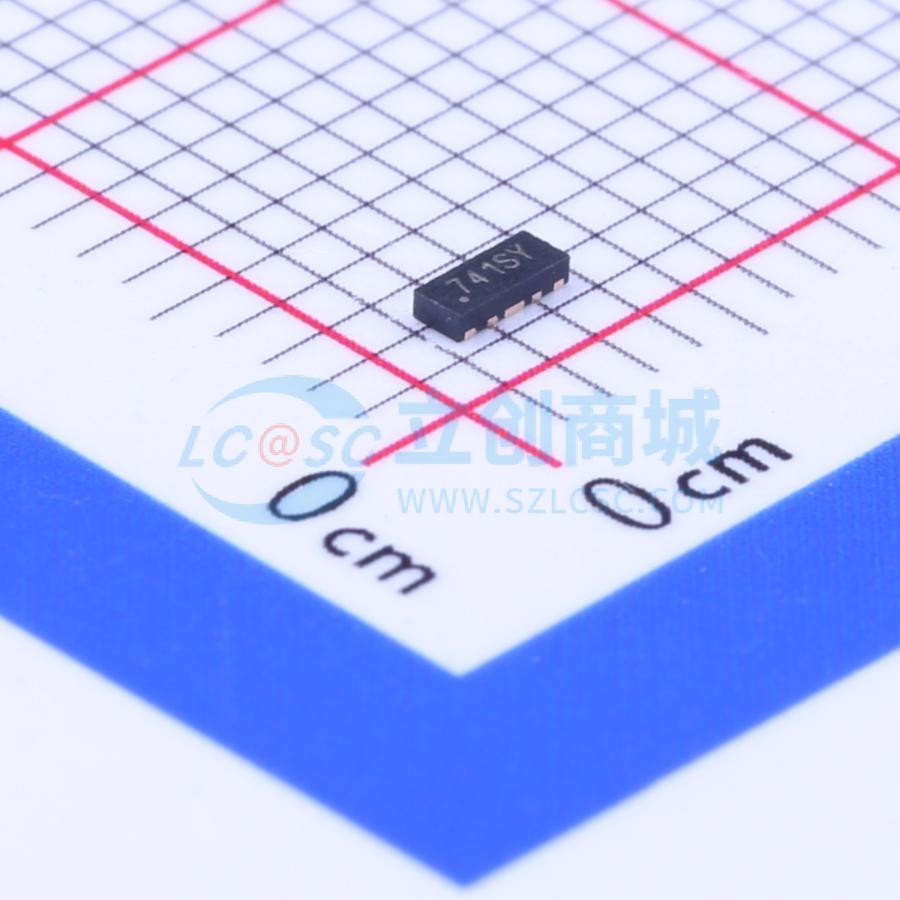

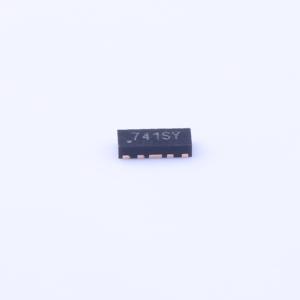

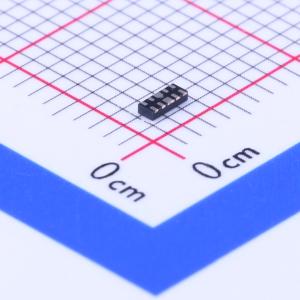

TPD4E02B04DQAR

双向TVS 3.6V截止峰值脉冲电流：2A@8/20us

SMT扩展库SMT补贴嘉立创PCB免费打样

描述: TPD4E02B04 适用于 USB 3.0、HDMI 2.0 和高速信号的四路 0.25pF、±3.6V、±12kV ESD 保护二极管
品牌名称: TI(德州仪器)
商品型号: TPD4E02B04DQAR
商品编号: C106794
商品封装: USON-10(1x2.5)
包装方式: 编带
商品毛重: 0.032克(g)

商品参数

商品概述

TPD4E02B04 is a bidirectional transient voltage suppressor (TVS) ESD protection diode array used to protect USB Type-C and HDMI 2.0 circuits. The rated ESD shock dissipation value of TPD4E02B04 is equal to the highest level specified in the IEC61000-4-2 (Level 4) international standard. Each channel of this device has an IO capacitance of 0.27pF, which is suitable for protecting high-speed interfaces with rates up to 10Gbps (such as USB 3.1 Gen 2). The low dynamic resistance and low clamping voltage can provide system-level protection against transient events. TPD4E02B04 uses the industry-standard USON-10 (DQA) package. This package uses through wiring with a pin pitch of 0.5mm, which can simplify application implementation and shorten the design time.

商品特性

IEC61000-4-2 Level 4 electrostatic discharge (ESD) protection
- ±12kV contact discharge
- ±15kV air gap discharge
IEC61000-4-4 transient discharge (EFT) protection
- 80A (5/50ns)
IEC61000-4-5 surge protection
- 2A (8/20μs)
IO capacitance: 0.27pF (typical), 0.37pF (maximum)
DC breakdown voltage: 5.5V (minimum)
Ultra-low leakage current: 10nA (maximum)
Low electrostatic discharge (ESD) clamping voltage: 8.8V at 5A transmission line pulse (TLP)
Supports high-speed interfaces with rates up to 10Gbps
Industrial temperature range: -40°C to 125°C
Simple through-wiring package

应用领域

End devices
- Portable computers and desktops
- Set-top boxes
- TVs and monitors
- Mobile phones and tablets
- Digital video recorders (DVR) and network video recorders (NVR)
Interfaces
- USB Type-C
- USB 3.1 Gen 2
- High-Definition Multimedia Interface (HDMI) 2.0/1.4
- USB 3.0
- DisplayPort 1.3
- PCI Express 3.0

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	双向
	反向截止电压(Vrwm)	3.6V
	钳位电压	8.8V
	峰值脉冲电流(Ipp)	2A@8/20us
	峰值脉冲功率(Ppp)	17W@8/20us
	击穿电压	7.5V

	属性	参数值
	反向电流(Ir)	10nA
	通道数	四路
	工作温度	-40℃~+125℃
	防护等级	IEC 61000-4-4；IEC 61000-4-5；IEC 61000-4-2
	类型	TVS
	Cj-结电容	0.33pF
