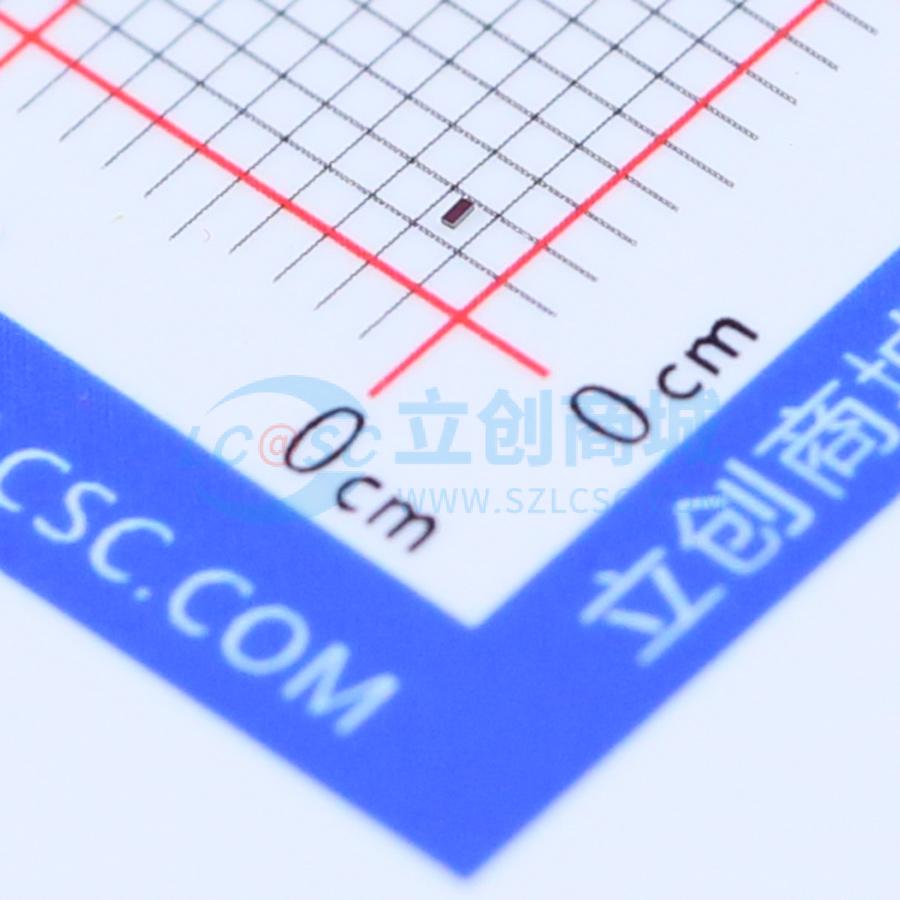

ESD108-B1-CSP0201
Bi-directional, 5.5 V, 0.28 pF, 0201, RoHS and Halogen Free compliant

Features:
ESD / transient protection of high speed data lines according to:
IEC61000-4-2 (ESD): ±25 kV (air/contact discharge)
IEC61000-4-4 (EFT): ±2.5 kV / ±50 A (5/50 ns)
IEC61000-4-5 (surge): ±2.5 A (8/20 ?s)
Bi-directional working voltage up to: VRWM = ±5.5 V
Line capacitance: CL = 0.28 pF (typical) at f = 1 MHz
Clamping voltage: VCL = 20 V (typical) at ITLP = 16 A with RDYN = 0.78 ? (typical)
Very low reverse current: IR < 1 nA (typical)
Minimized clamping overshoot due to extremely low parasitic inductance
Small form factor SMD Size 0201 and low profile (0.58 mm x 0.28 mm x 0.15 mm)
Bidirectional and symmetric I/V characteristics for optimized design and assembly
Pb-free (RoHS compliant) and halogen free package
Application Examples
USB 3.0, Firewire, DVI, HDMI, S-ATA, DisplayPort, Thunderbolt
Mobile HDMI Link, MDDI, MIPI, SWP / NFC
Dedicated solution to boost space saving and high performance in miniaturized modern electronics

	属性	参数值
	商品目录	静电和浪涌保护(TVS/ESD)
	极性	双向
	反向截止电压(Vrwm)	5.5V
	钳位电压	41V
	峰值脉冲电流(Ipp)	3A@8/20us
	峰值脉冲功率(Ppp)	27.5W@8/20us
	击穿电压	9.5V

	属性	参数值
	反向电流(Ir)	1nA
	通道数	单路
	工作温度	-55℃~+125℃
	防护等级	IEC 61000-4-4；IEC 61000-4-5；IEC 61000-4-2
	类型	TVS
	Cj-结电容	0.28pF
