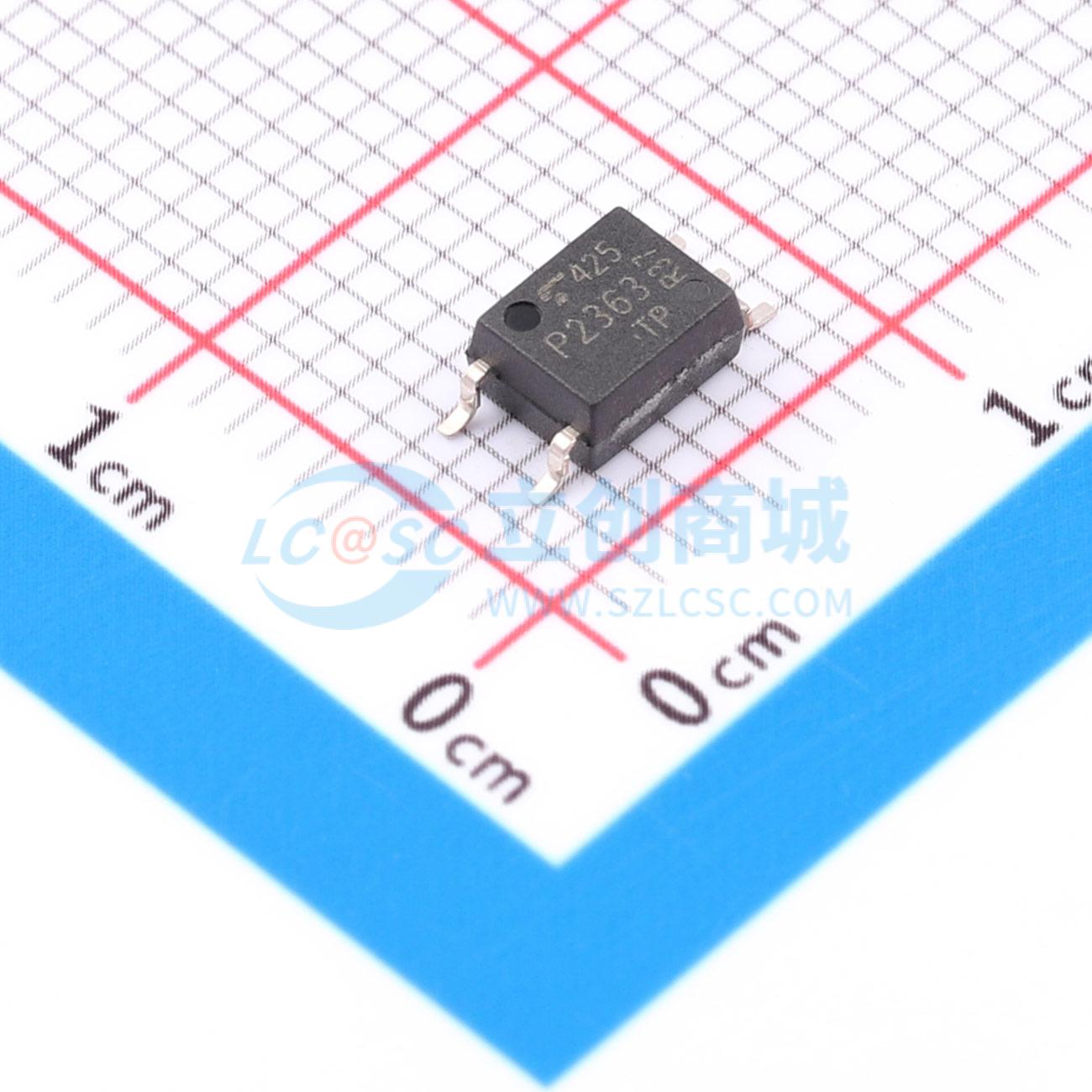

TLP2363(E

SMT扩展库PCB免费打样

私有库下单最高享92折

商品参数

Inverter logic type (open collector output)
Package: SO6
Operating temperarure: -40 to 105 °C
Supply voltage: 2.7 to 5.5 V
Data transfer rate: 15 Mbps (typ.)
Threshold input current: 5.0 mA (max)
Supply current: 4 mA (max)
Common-mode transient immunity: ±20 kV/μs (min)
Isolation voltage: 3750 Vrms (min)
Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5, EN 62368-1
CQC-approved: GB4943.1, GB8898 Japan Factory QQ 仅适用干海拔 2000m 以下地区安全使用
