- 引脚图
- 焊盘图
温馨提醒：图片仅供参考，商品以实物为准

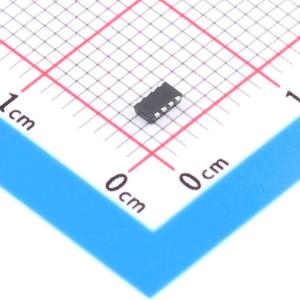

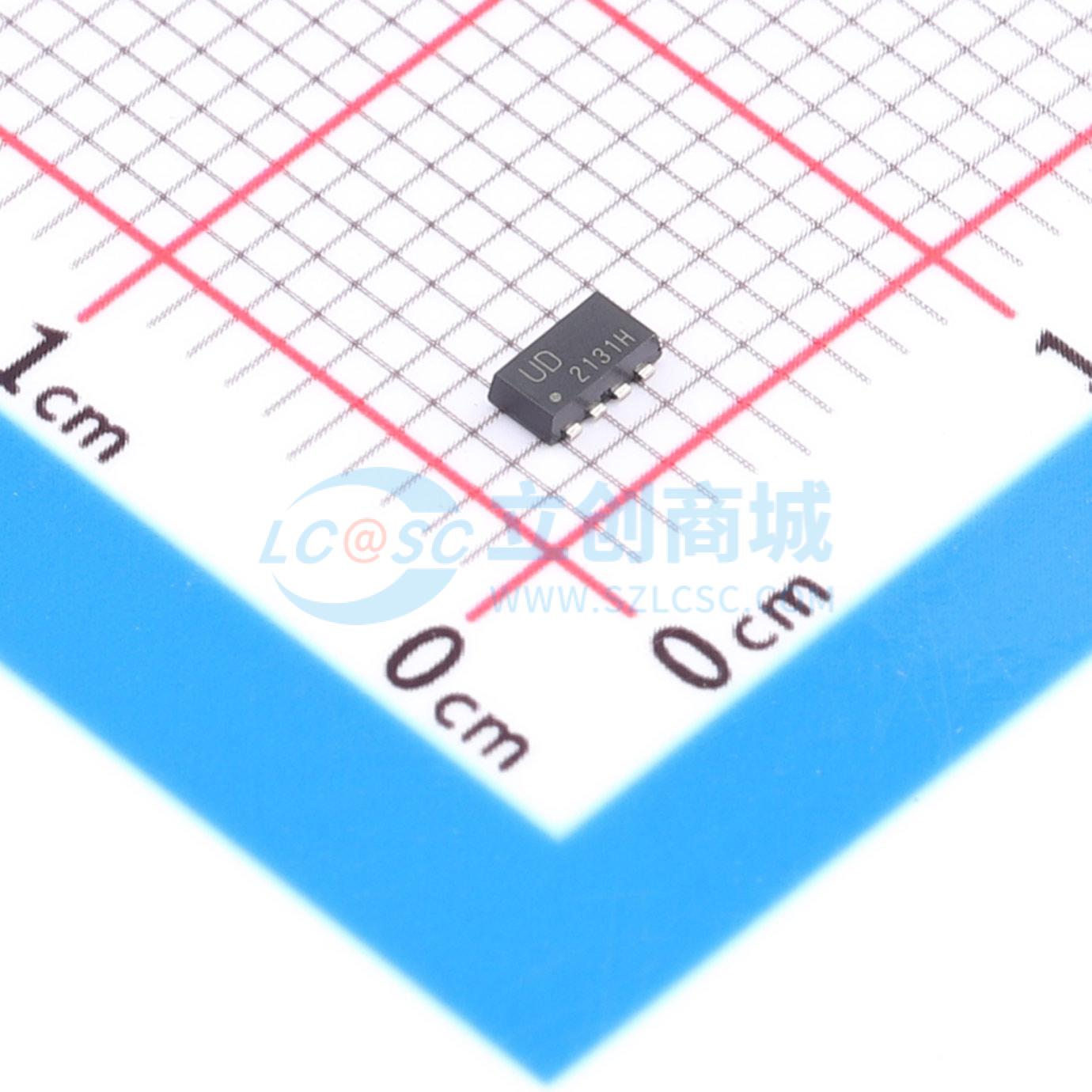

RT1E050RPTR
1个P沟道 耐压:30V 电流:5A
SMT扩展库PCB免费打样
私有库下单最高享92折
- 描述
- 应用：AT/OA设备。 通信。 消费系统。 游戏/娱乐设备
- 品牌名称
- ROHM(罗姆)
- 商品型号
- RT1E050RPTR
- 商品编号
- C6460997
- 商品封装
- TSST-8
- 包装方式
- 编带
- 商品毛重
- 0.03克(g)
商品参数
| 属性 | 参数值 | |
|---|---|---|
| 商品目录 | 场效应管(MOSFET) | |
| 数量 | 1个P沟道 | |
| 漏源电压(Vdss) | 30V | |
| 连续漏极电流(Id) | 5A | |
| 导通电阻(RDS(on)) | 26mΩ@10V | |
| 耗散功率(Pd) | 1.25W |
| 属性 | 参数值 | |
|---|---|---|
| 阈值电压(Vgs(th)) | 2.5V | |
| 栅极电荷量(Qg) | 13nC | |
| 输入电容(Ciss) | 1.3nF | |
| 反向传输电容(Crss) | 160pF | |
| 类型 | P沟道 | |
| 输出电容(Coss) | 180pF |
商品特性
- Cumulative pitch tolerance: The cumulative pitch tolerance of every 10 pitches of the mold for producing carrier tapes shall be within ±0.2mm.
- Minimum bending radius: The carrier tape shall have sufficient flexibility to protect the components without damage at a minimum radius of 30mm.
- Carrier tape material: Polystyrene coated with special carbon paint on both sides.
- Peel strength: 0.1N~1.0N (if the product is stored beyond the recommended storage conditions).
- Recommended storage conditions: Temperature 5°C - 40°C, humidity 30%RH - 80%RH.
- Recommended storage time: Five years after production.
应用领域
- 电机驱动-电动工具-LED 照明
