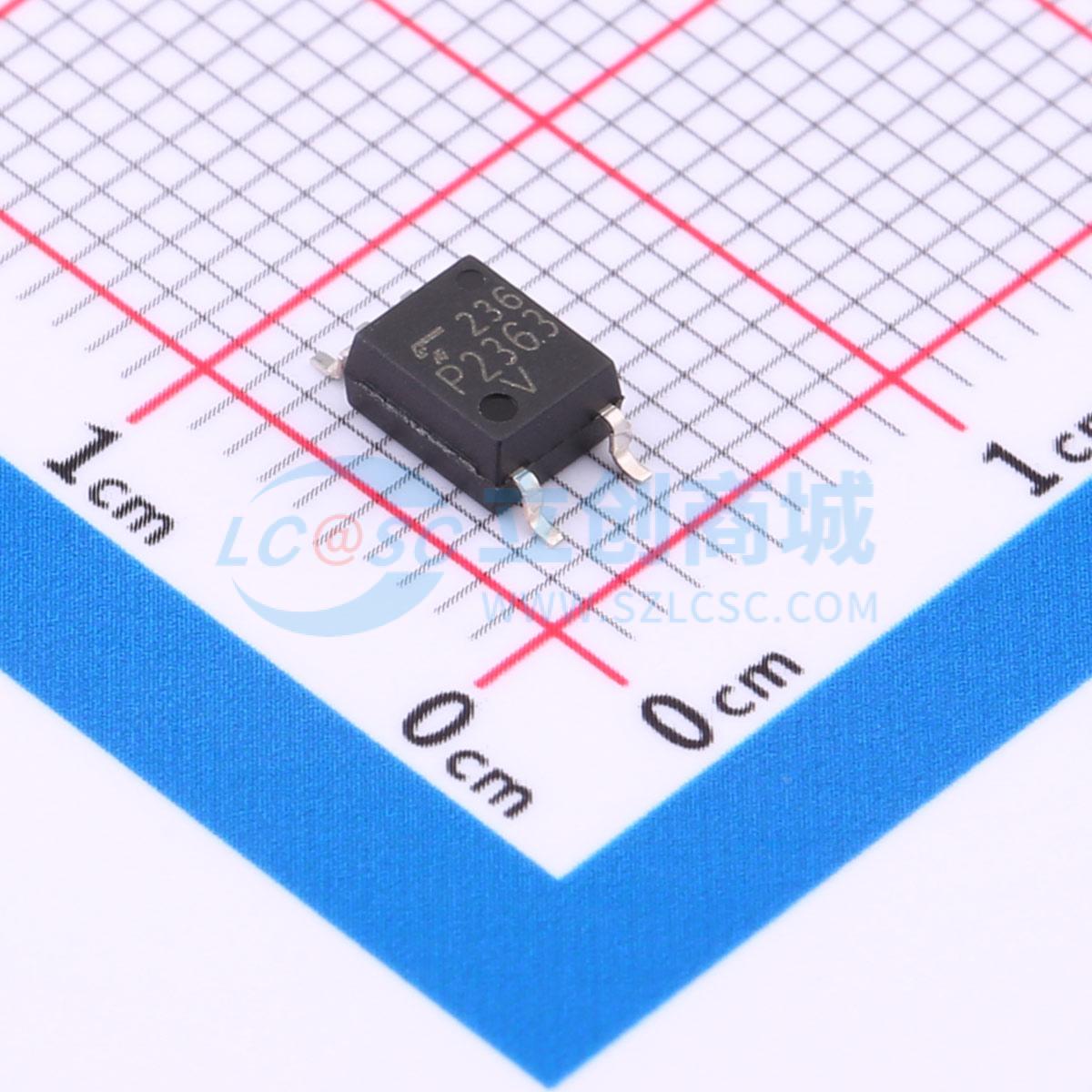

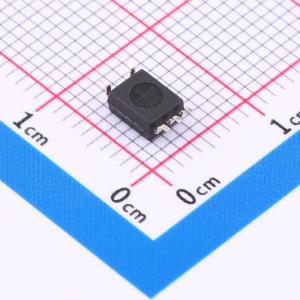

TLP2363(V4-TPL,E

光耦合器，红外发光二极管和光电集成电路

SMT扩展库PCB免费打样

描述: TLP2363由高输出发光二极管与集成的高增益、高速光电探测器耦合而成。该产品保证在高达105℃的温度下以及2.7至5.5V的电源下工作。它采用SO6封装。
品牌名称: TOSHIBA(东芝)
商品型号: TLP2363(V4-TPL,E
商品编号: C5370586
商品封装: SOIC-5
包装方式: 编带
商品毛重: 0.181933克(g)

商品参数

Inverter logic type (open collector output)
Package: SO6
Operating temperarure: -40 to 105 °C
Supply voltage: 2.7 to 5.5 V
Data transfer rate: 15 Mbps (typ.)
Threshold input current: 5.0 mA (max)
Threshold input current: 0.3 to 2.4 mA (VCC = 3.3 V, RL = 1 kΩ)
Supply current: 4 mA (max)
Common-mode transient immunity: ±20 kV/μs (min)
Isolation voltage: 3750 Vrms (min)
Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5, EN 62368-1
CQC-approved: GB4943.1, GB8898 Japan Factory QQ 仅适用干海拔 2000 m 以下地区安全使用
